Dormer C24728.0 5984876 End Mill 28.00 mm
MODEL 5984876
$186.43 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 844 K
Coating
Bright

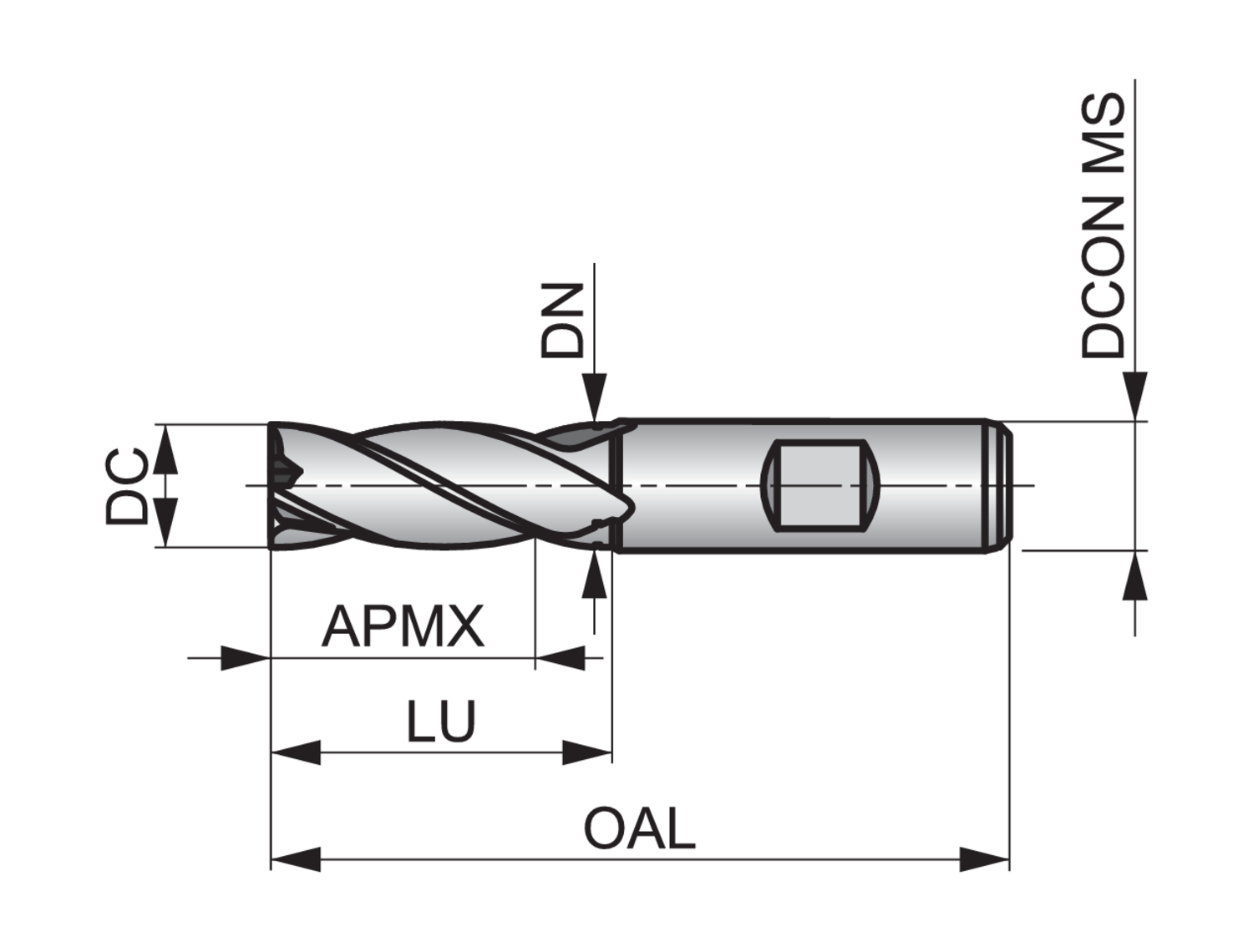

Connection diameter - inch (DCON MS)
0.9843
Connection diameter - millimeter (DCON MS)
25
Cut length
Short
Cutting diameter - inch (DC)
1.1024
Cutting diameter - millimeter (DC)
28
Cutting diameter tolerance class (TCDC)
k10
Depth of cut maximum - inch (APMX)
1.7717
Depth of cut maximum - millimeter (APMX)
45
EDP number
354711
Flute count (NOF)
6
Flute helix angle (FHA)
30
Material
HSS-E-PM
Material application
N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
5984876
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.9646
Neck diameter - millimeter (DN)
24.5
Ordering code ANSI
C24728.0
Overall length - inch (OAL)
4.7638
Overall length - millimeter (OAL)
121
Peripheral effective cutting edge count (ZEFP)
6
Radial rake angle (GAMF)
12
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
64.5
C247 4-flute milling cutters have a bright finish which prevents workpiece material from sticking to the cutting edge of the tool and so gives you a cleaner, more accurate finish whilst the strong design means the cutters can be used for both profile milling and slotting.
Manufactured from powder metal High Speed cobalt, C247 cutters will give you longer tool life with a great performance level.
They have a medium length flute design which gives high rigidity for general profile milling applications.
Suitable for plunging, profile milling and ramping in cast iron, steels and stainless steels, C247 milling cutters are very versatile products
