Dormer C34620.0 5984052 End Mill N 844 L 20.00 mm
MODEL 5984052
$104.94 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard

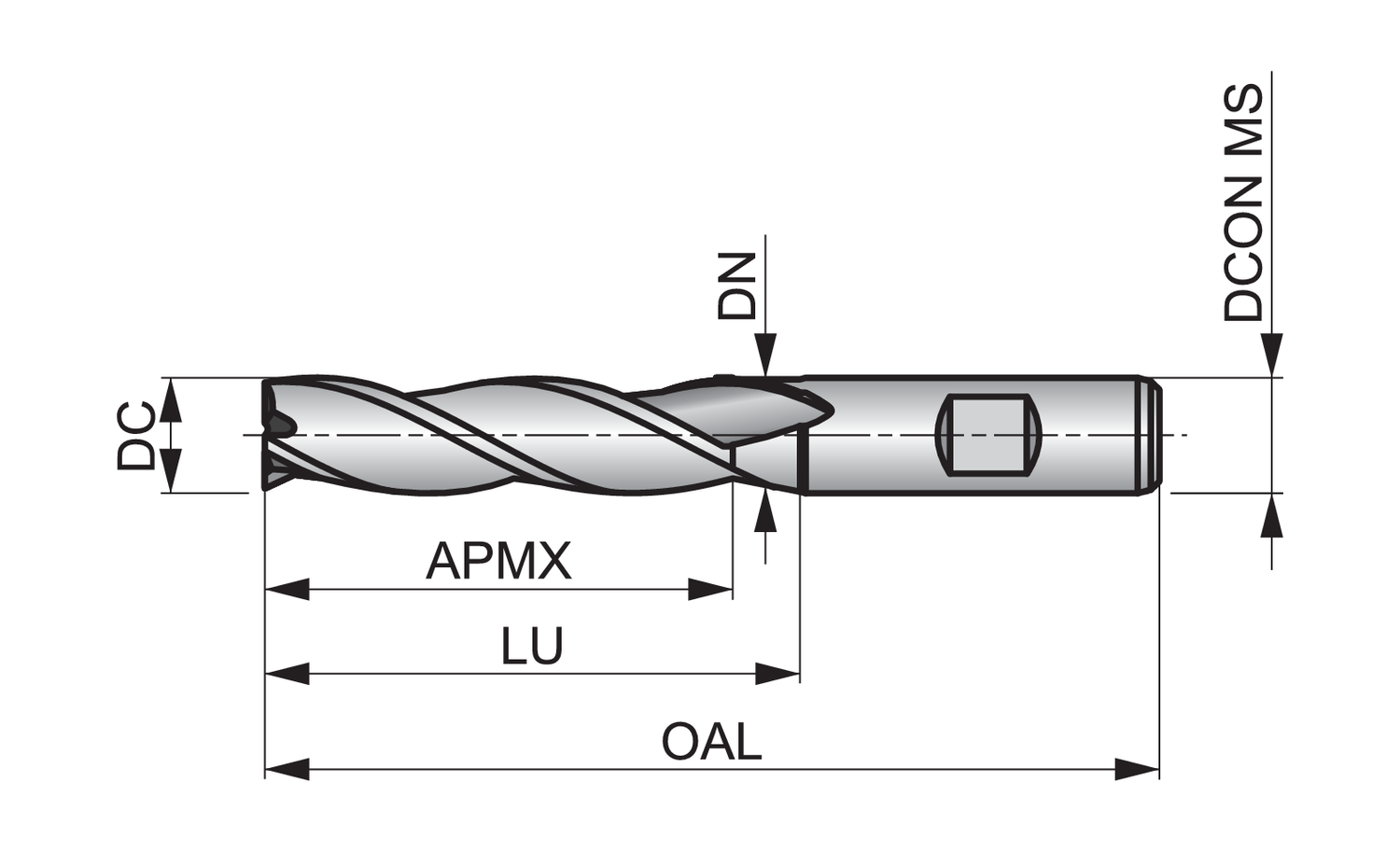

DIN 844 L
Coating
Bright
Connection diameter - inch (DCON MS)
0.7874
Connection diameter - millimeter (DCON MS)
20
Cut length
Long
Cutting diameter - inch (DC)
0.7874
Cutting diameter - millimeter (DC)
20
Cutting diameter tolerance class (TCDC)
e8
Depth of cut maximum - inch (APMX)
2.9528
Depth of cut maximum - millimeter (APMX)
75
EDP number
126318
Flute count (NOF)
3
Flute helix angle (FHA)
30
Material
HSS-E
Material application
N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
5984052
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.7677
Neck diameter - millimeter (DN)
19.5
Ordering code ANSI
C34620.0
Overall length - inch (OAL)
5.5512
Overall length - millimeter (OAL)
141
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
12
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
90.5
C346 3-flute milling cutters are designed to provide high rigidity for standard slotting and profile milling and can be used for plunging, ramping and profile milling in steels, stainless steels and cast iron.
They are long series cutters for machining deeper slots and walls in places which are difficult to reach.
C346 milling cutters have a long tool life and great performance thanks to the High Speed cobalt used in manufacture, whilst the bright finish means clean and accurate milling is assured by preventing workpiece material from sticking to the cutting edges of the tool
