Dormer C7002.0 5985469 Corner Rounding Cutter 10.00 mm x 2.0 mm
MODEL 5985469
$176.94 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

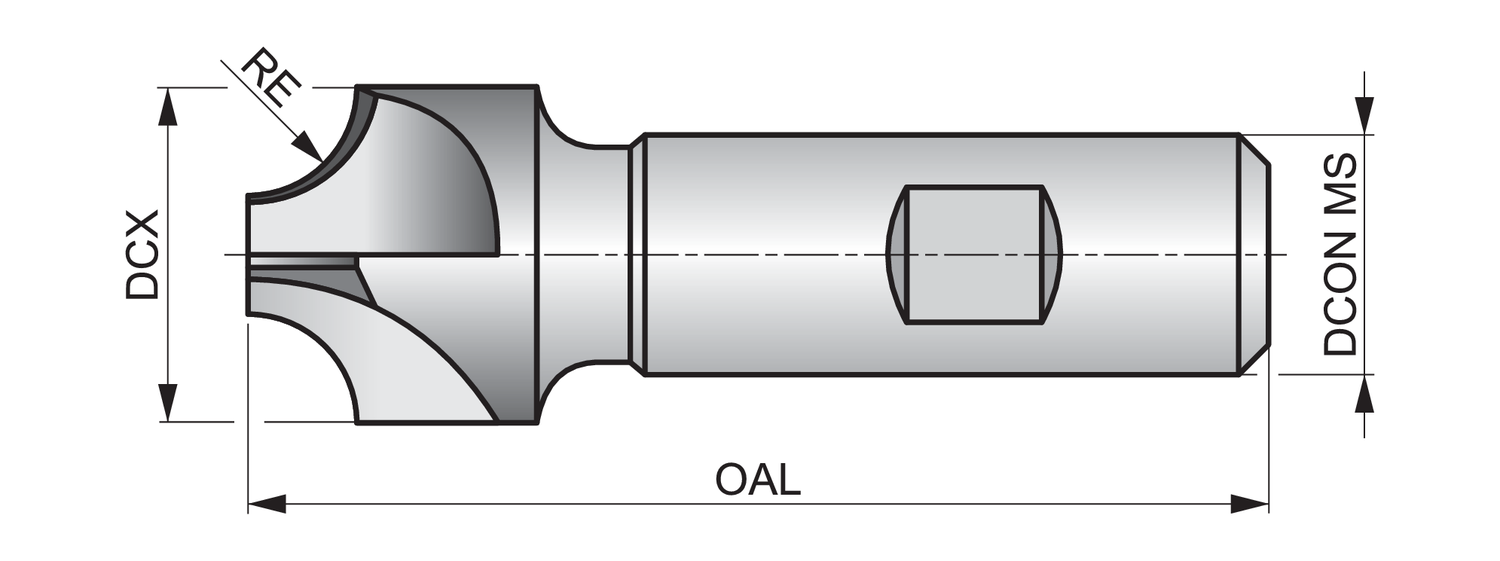

Connection diameter - inch (DCON MS)
0.3937
Connection diameter - millimeter (DCON MS)
10
Connection diameter tolerance machine side (TCDCONMS)
h6
Corner radius - inch (RE)
0.0787
Corner radius - millimeter (RE)
2
Cut length
Extra short
Cutting diameter maximum - inch (DCX)
0.394
Cutting diameter maximum - millimeter (DCX)
10
EDP number
74343
Flute count (NOF)
4
Flute helix angle (FHA)
0
Material
HSS-E
MID number
5985469
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
C7002.0
Overall length - inch (OAL)
2.3622
Overall length - millimeter (OAL)
60
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
0
Shank
Weldon shank DIN 1835B
C700 milling cutters are radius corner rounding cutters, with an accurate ground radius capable of profile milling metric corner radii around the perimeter of components.
The High Speed cobalt used in manufacture provides excellent tool strength, performance and wear resistance whilst the bright finish prevents workpiece material from sticking to the cutting edges of the tool for a clean and accurate result.
For stable holding to improve radius surface finish there is a Weldon Shank, manufactured to conform to the German Institute for Standardization.
C700 milling cutters can be used for corner radius milling in steels, stainless steels, aluminium and cast iron
