Dormer C8224.5X1.0 5986015 Woodruff Cutter 4.50 mm x 1.0 mm
MODEL 5986015
$317.60 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 850
Coating
Bright

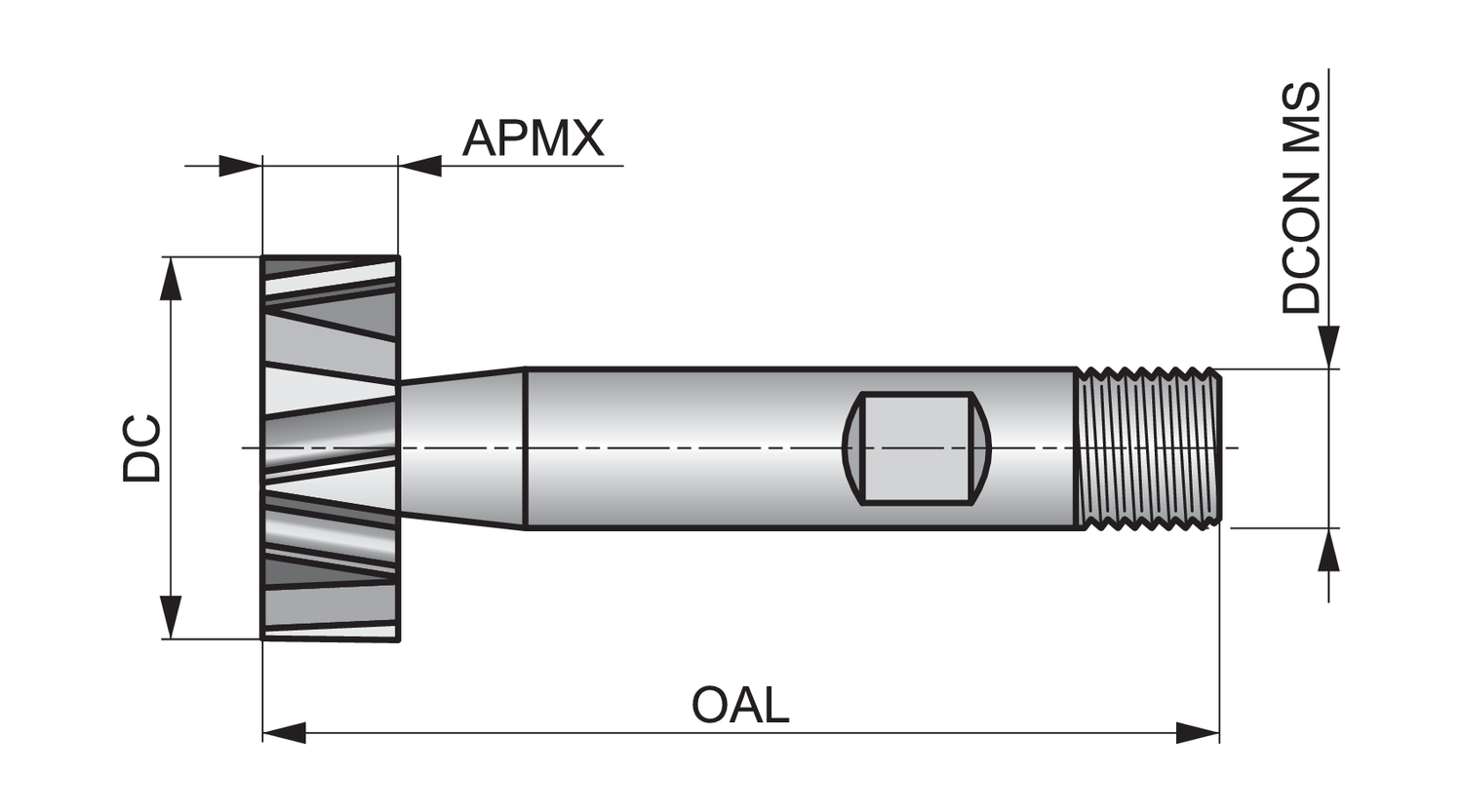

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Cutting diameter - inch (DC)
0.1772
Cutting diameter - millimeter (DC)
4.5
Cutting diameter tolerance class (TCDC)
h11
Cutting width - millimeter (CW)
0
Depth of cut maximum - inch (APMX)
0.0394
Depth of cut maximum - millimeter (APMX)
1
EDP number
74824
Flute count (NOF)
6
Flute helix angle (FHA)
10
Material
HSS-E
MID number
5986015
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
C8224.5X1.0
Overall length - inch (OAL)
1.9685
Overall length - millimeter (OAL)
50
Peripheral effective cutting edge count (ZEFP)
6
Radial rake angle (GAMF)
10
Shank
Cylindrical shank DIN 1835 B / D
C822 Woodruff cutters from Dormer are very versatile tools and can be used for milling woodruff keys in steels, stainless steels, cast irons and aluminium.
They are manufactured from High Speed cobalt to give great performance coupled with excellent tool strength and wear resistance.
The bright finish means you will get clean accurate results by preventing workpiece material from sticking to the cutting edges of the tool whilst the combination shank provides stable and accurate holding in all types of holders.
C822 Woodruff cutters are manufactured to a Dormer Pramet standard and are suitable for milling Woodruff keys in spindles and shafts
