Dormer C83032.0X60 5985828 Dovetail Cutter DIN 1835 32.00 mm x 12.5 mm
MODEL 5985828
$231.64 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 1833 C
Coating
Bright

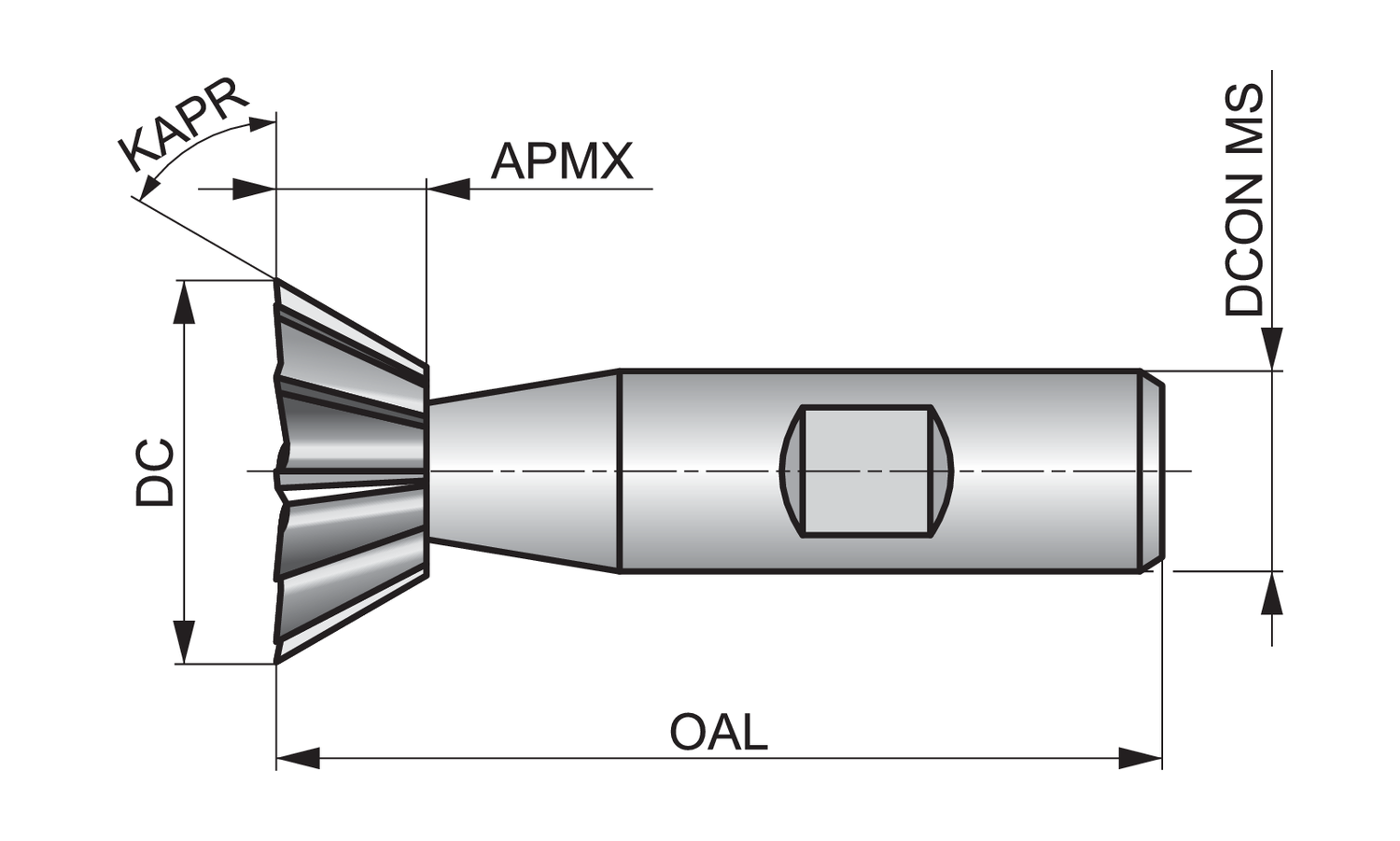

Connection diameter - inch (DCON MS)
0.6299
Connection diameter - millimeter (DCON MS)
16
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - inch (DC)
1.2598
Cutting diameter - millimeter (DC)
32
Cutting diameter tolerance class (TCDC)
js16
Depth of cut maximum - inch (APMX)
0.4921
Depth of cut maximum - millimeter (APMX)
12.5
EDP number
75081
Flute count (NOF)
12
Flute helix angle (FHA)
0
Material
HSS-E
MID number
5985828
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
C83032.0X60
Overall length - inch (OAL)
2.7953
Overall length - millimeter (OAL)
71
Peripheral effective cutting edge count (ZEFP)
12
Radial rake angle (GAMF)
0
Shank
Weldon shank DIN 1835B
Tool cutting edge angle (KAPR)
60
C830 dovetail slot cutters from Dormer are manufactured from High Speed cobalt, providing great wear resistance and performance plus excellent tool strength.
With a Weldon shank for accurate and stable holding, the optional 45 or 60 degree angles are ideal for milling common dovetail slots.
With a bright finish to stop workpiece material from sticking to the cutting edges of the tool for a clean and accurate result, C830 cutters can be used for milling dovetail forms in cast iron, steels, stainless steels and aluminium
