Dormer D40050.0 0077252 Shell End Mill N DIN 1880 50.00 mm x 36.0 mm
MODEL D40050.0
$223.25 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Orders over $500 qualify for a Free Gift
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 1880

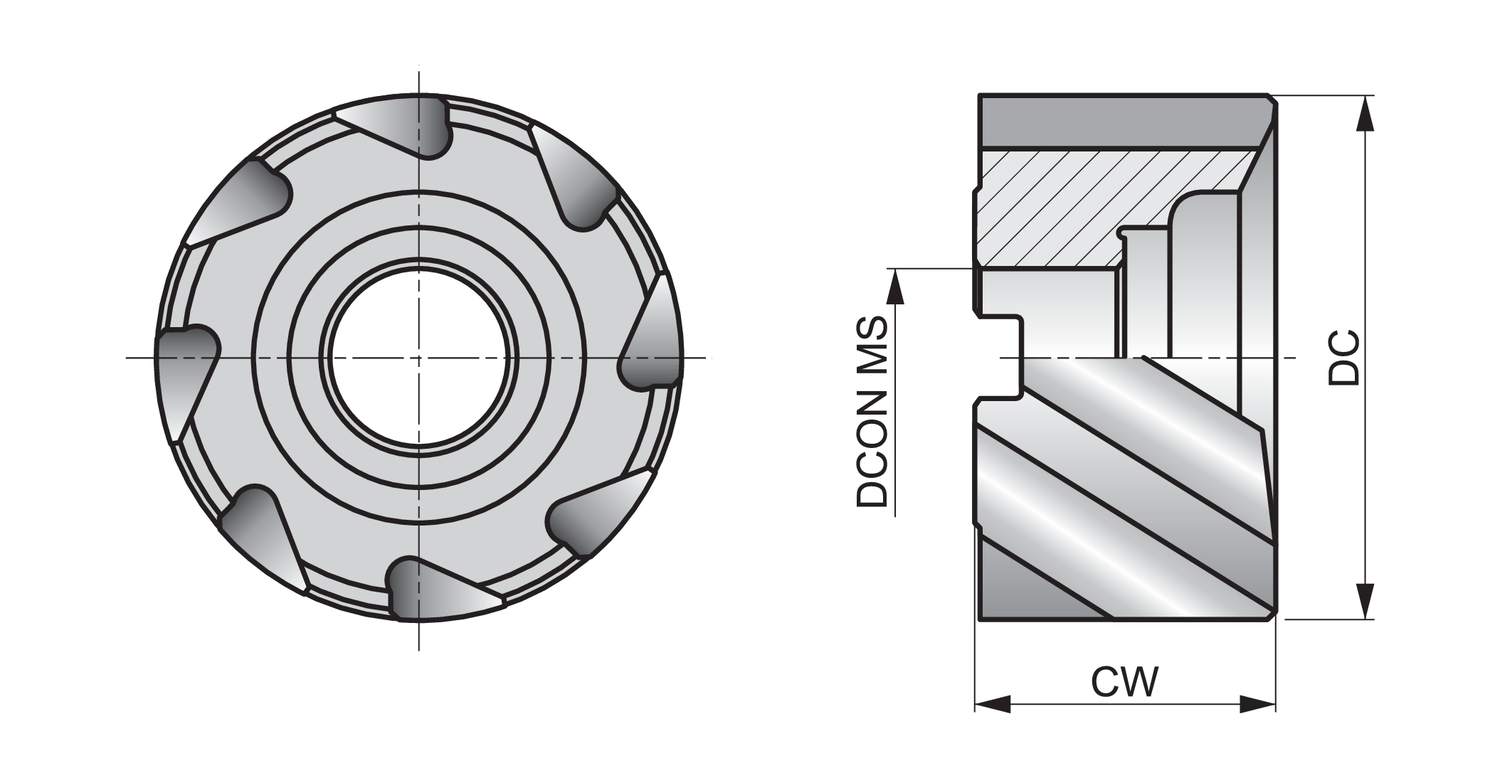

Connection diameter - millimeter (DCON MS)
22
Cutting diameter - millimeter (DC)
50
Cutting diameter tolerance class (TCDC)
js16
Cutting width - millimeter (CW)
36
EDP number
77252
Flute count (NOF)
8
Flute helix angle (FHA)
30
Material
HSS-E
MID number
5985300
Ordering code ANSI
D40050.0
Peripheral effective cutting edge count (ZEFP)
8
Possible use
Medium machining
Primary use
Finishing
Radial rake angle (GAMF)
12
D400 shell end mill bore cutters are manufactured from High Speed cobalt for excellent tool strength and performance, and resistance to wear.
They are of a standard bore, suitable for use with standard shell mill holders, with a large diameter available up to 100 mm.
D400 bore cutters are suitable for slitting and cutting in aluminium, stainless steels, cast iron and steels, and will give clean and accurate results, thanks to the bright finish which prevents workpiece material from sticking to the cutting edges of the tool
