Dormer D40263.0 5985338 Roughing Shell End Mill 63.00 mm x 40.0 mm
MODEL 5985338
$531.94 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 1880
Coating
Bright

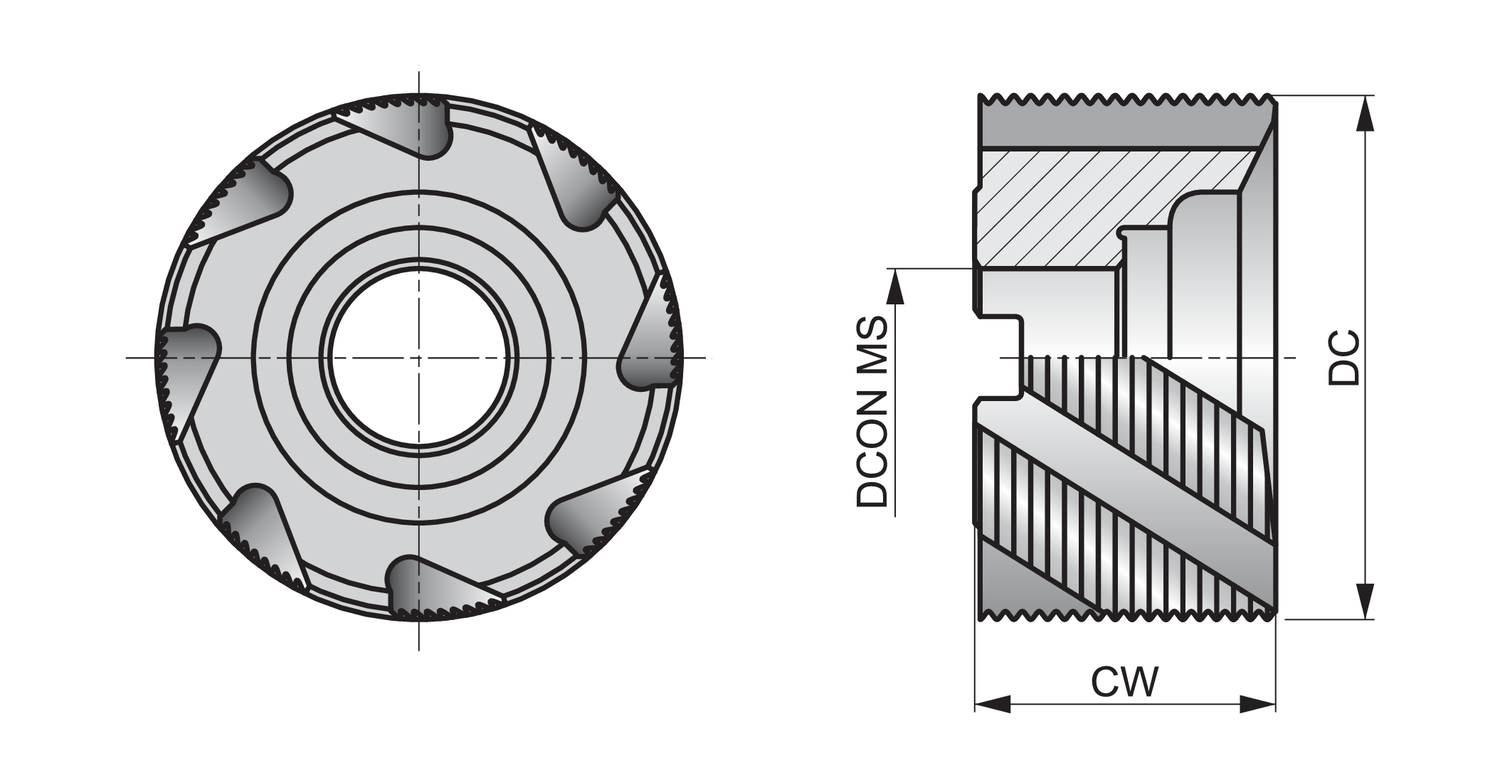

Connection diameter - inch (DCON MS)
1.063
Connection diameter - millimeter (DCON MS)
27
Cutting diameter - inch (DC)
2.4803
Cutting diameter - millimeter (DC)
63
Cutting diameter tolerance class (TCDC)
js16
Cutting width - inch (CW)
1.5748
Cutting width - millimeter (CW)
40
EDP number
77375
Flute count (NOF)
8
Flute helix angle (FHA)
30
Material
HSS-E
MID number
5985338
Mill Profile
NR - Coarse Pitch Rounded Profile Chipbreaker
Ordering code ANSI
D40263.0
Peripheral effective cutting edge count (ZEFP)
8
Possible use
Roughing
Primary use
Medium machining
Radial rake angle (GAMF)
12
Dormer’s D402 tools are roughing shell end mill bore cutters.
They have a standard bore so can be used with standard shell end mill holders for slitting and cutting in aluminium, steels, stainless steels and cast iron.
With a coarse pitch roughing profile, the tools are designed for high metal removal roughing applications.
The bright finish prevents workpiece material from sticking to the cutting edges of the tool so you will get a clean, accurate result every time.
The premium High Speed cobalt used in manufacture provides excellent tool strength, wear resistance and performance
