Dormer C29916.0 5984390 16mm 4-flute slot drill, powder metallurgy cobalt HSS (HSS-E-PM), DIN 844 K standard, 45° helix angle, 12° radial rake, 32mm max depth of cut. Suitable for cast iron, stainless steel, non-ferrous metals, steel, and high-temperature alloys. Cylindrical shank, 16mm connection diameter.
MODEL 5984390
$79.26 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 844 K
Coating
Bright

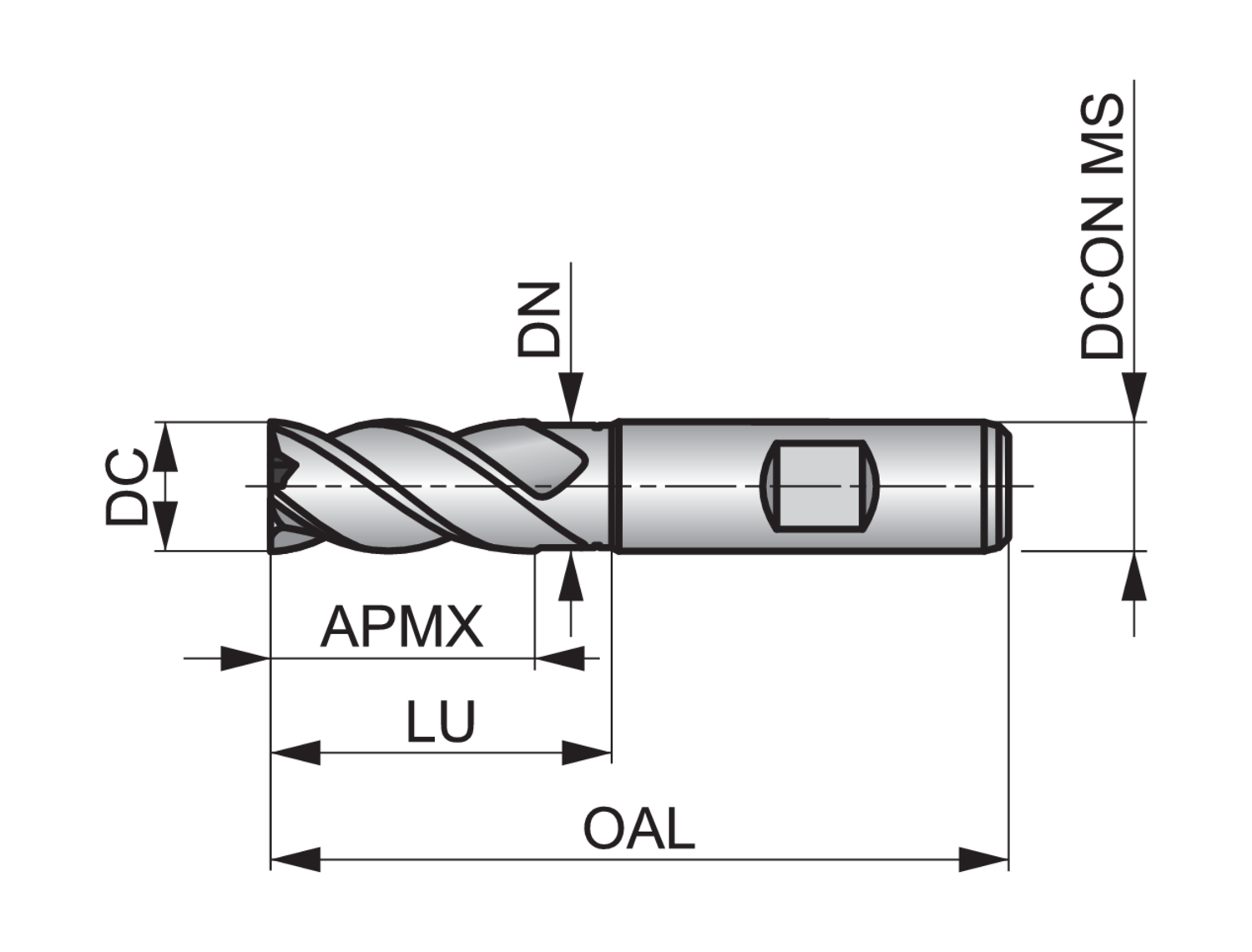

Connection diameter - inch (DCON MS)
0.6299
Connection diameter - millimeter (DCON MS)
16
Cut length
Short
Cutting diameter - inch (DC)
0.6299
Cutting diameter - millimeter (DC)
16
Cutting diameter tolerance class (TCDC)
k10
Depth of cut maximum - inch (APMX)
1.2598
Depth of cut maximum - millimeter (APMX)
32
EDP number
64344
Flute count (NOF)
4
Flute helix angle (FHA)
45
Material
HSS-E-PM
MID number
5984390
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.6102
Neck diameter - millimeter (DN)
15.5
Ordering code ANSI
C29916.0
Overall length - inch (OAL)
3.622
Overall length - millimeter (OAL)
92
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
12
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
43.5
C299 4-flute milling cutters can be used for plunging, ramping and profile milling in stainless steels, steels and cast iron and are manufactured from the best powder metal high speed cobalt, providing great performance and a long tool life.
They have a bright finish which ensures a clean, accurate result by stopping workpiece material from sticking to the cutting edges of the tool.
The medium length flute provides high rigidity for general profile milling applications.
Finally, the 45 degree helix means C299 milling cutters are designed for high performance when machining heat resistant materials on CNC machines
