Dormer C49216.0 5984945 Roughing End Mill 16.00 mm
MODEL 5984945
$150.71 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 844 L
Coating
ALCRONA
Coating property (CTP)
1

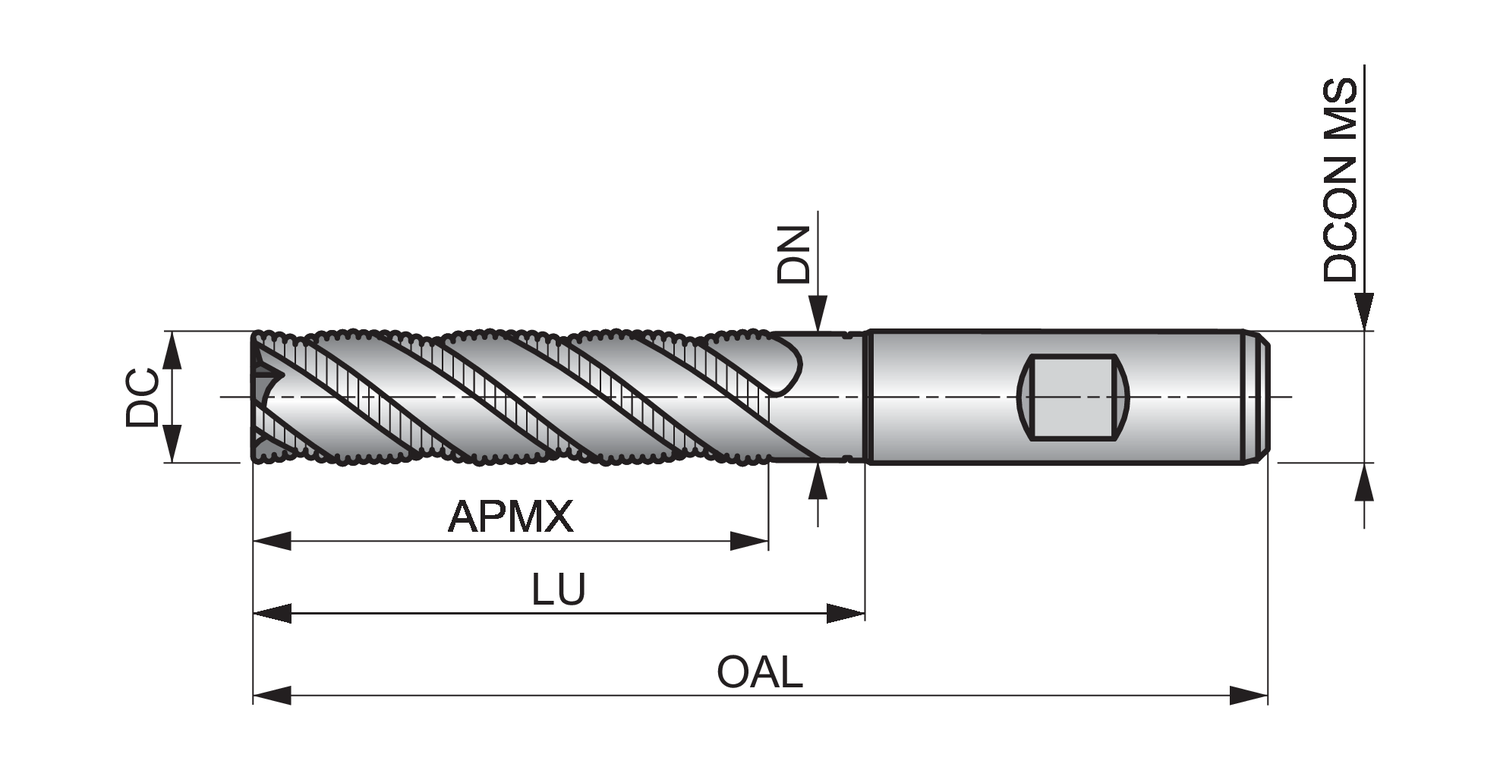

Connection diameter - inch (DCON MS)
0.6299
Connection diameter - millimeter (DCON MS)
16
Cut length
Long
Cutting diameter - inch (DC)
0.6299
Cutting diameter - millimeter (DC)
16
Cutting diameter tolerance class (TCDC)
k12
Depth of cut maximum - inch (APMX)
2.4803
Depth of cut maximum - millimeter (APMX)
63
EDP number
388822
Flute count (NOF)
4
Flute helix angle (FHA)
35
Material
HSS-E-PM
MID number
5984945
Mill Profile
HRA - Fine Pitch Asymmetrical Rounded Profile Chipbreaker
Neck diameter - inch (DN)
0.6102
Neck diameter - millimeter (DN)
15.5
Ordering code ANSI
C49216.0
Overall length - inch (OAL)
4.8425
Overall length - millimeter (OAL)
123
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
12
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
74.5
C492 4-flute milling cutters are manufactured from powder metal High Speed cobalt for longer tool life and improved performance.
The Alcrona coating further extends the life of the tool and also gives improved performance when milling difficult to machine materials.
With a 35 degree helix to reduce vibration and improve performance in CNC machines, C492 cutters also have a long series flute design with HRA profile to break chips, for efficient roughing of deep profiles.
For roughing when plunging, ramping and profile milling in steels, stainless steels and cast iron, C492 cutters are very versatile
