MROSupply Has Hundreds Of Brands, Millions Of Products, Including
Image for Illustration purposes only. Actual product may vary
Dormer S1359.0 7648780 End Mill 9.00 mm
MODEL 7648780
$34.39 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

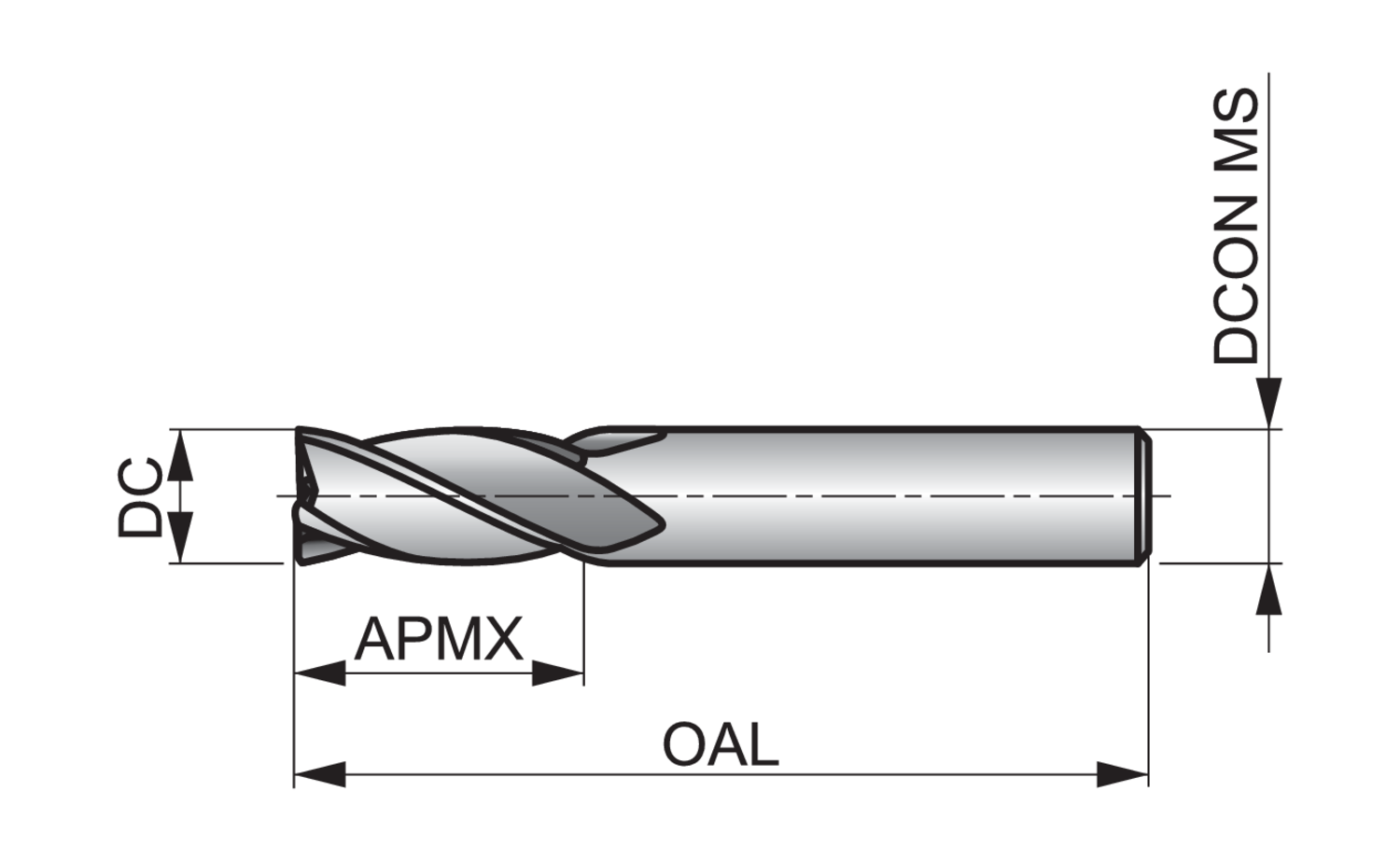

Connection diameter - inch (DCON MS)
0.3937
Connection diameter - millimeter (DCON MS)
10
Cut length
Medium
Cutting diameter - inch (DC)
0.3543
Cutting diameter - millimeter (DC)
9
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - inch (APMX)
0.8661
Depth of cut maximum - millimeter (APMX)
22
EDP number
7648780
Flute count (NOF)
4
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
7648780
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S1359.0
Overall length - inch (OAL)
2.7559
Overall length - millimeter (OAL)
70
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
S135 4-flute end mills are a very economical range for general milling of slots on most types of machines and can be used for plunging, ramping and profile milling in steels, cast iron and stainless steels.
The medium length flute design provides the high rigidity needed for standard profile milling, whilst the bright finish prevents workpiece material from sticking to the cutting edges of the tool so you get an accurate, clean finish.
S135 4-flute milling cutters are manufactured from premium carbide, so you can be sure of great performance coupled with a longer tool life
