Dormer S1375/8 7648832 End Mill 4FL 5/8 inch
MODEL 7648832
$136.67 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER"
Coating
Bright

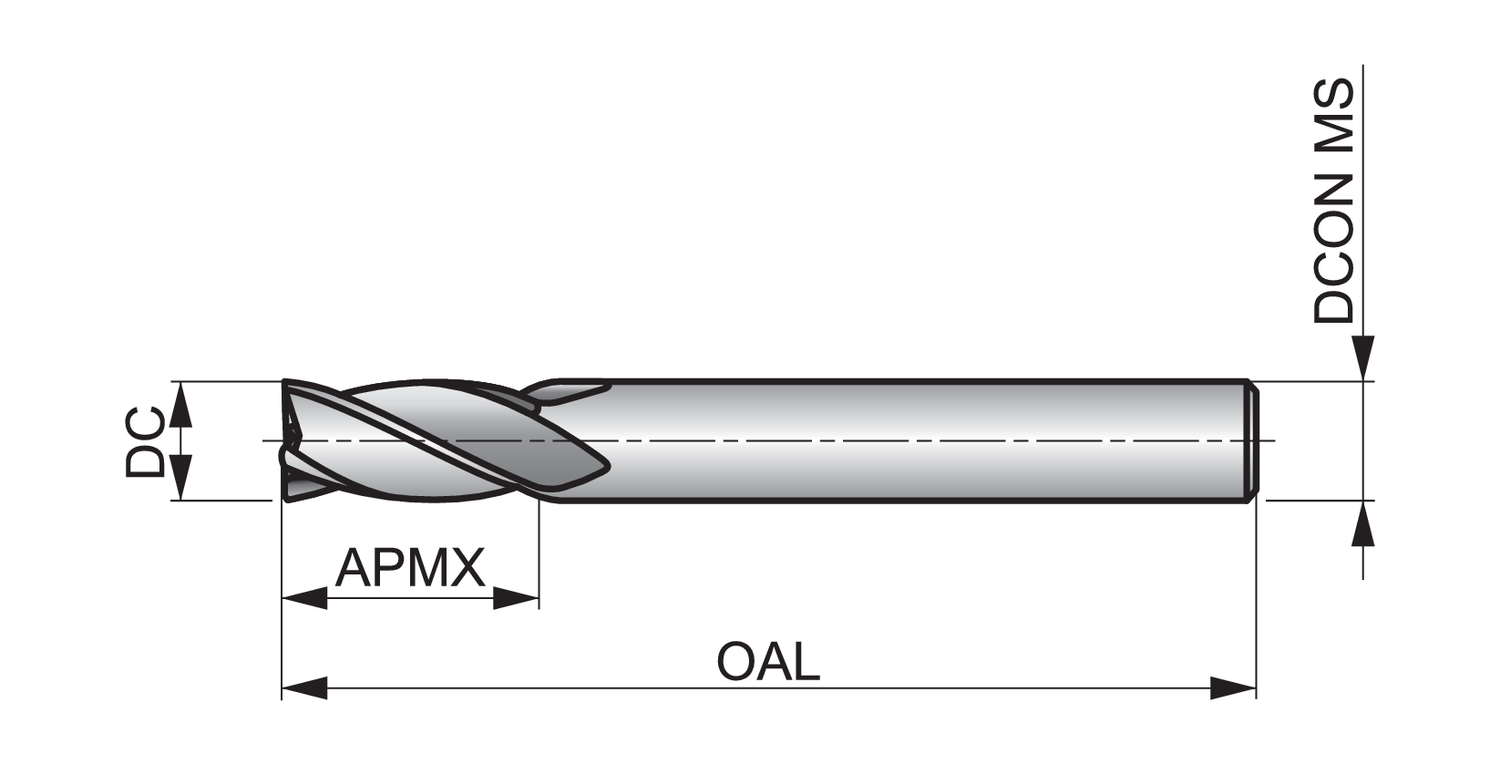

Connection diameter - fractional inch (DCON MS)
5/8
Connection diameter - inch (DCON MS)
0.625
Connection diameter - millimeter (DCON MS)
15.88
Cut length
Extra long
Cutting diameter - fractional inch (DC)
5/8
Cutting diameter - inch (DC)
0.625
Cutting diameter - millimeter (DC)
15.88
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
3
EDP number
7648832
Flute count (NOF)
4
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
7648832
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S1375/8
Overall length - fractional inch (OAL)
6"
Overall length - inch (OAL)
6
Overall length - millimeter (OAL)
152.4
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
S137 4-flute end mills from Dormer are manufactured from premium carbide for superior performance and extended tool life.
They have a bright finish to prevent workpiece material from sticking to the cutting edges of the tool so you get a clean and accurate result, whilst the extra long shank gives the rigidity need for standard profile milling.
The tools can be used for milling in steels, stainless steels and cast iron, and are suitable for plunging, ramping and profile milling.
S137 4-flute carbide milling cutters are an economical range and a smart choice for general milling of slots on most types of machines
