Image for Illustration purposes only. Actual product may vary
Dormer S1381/8 7648847 Ball-Nosed End Mill 4FL 1/8 inch
MODEL 7648847
$13.81 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

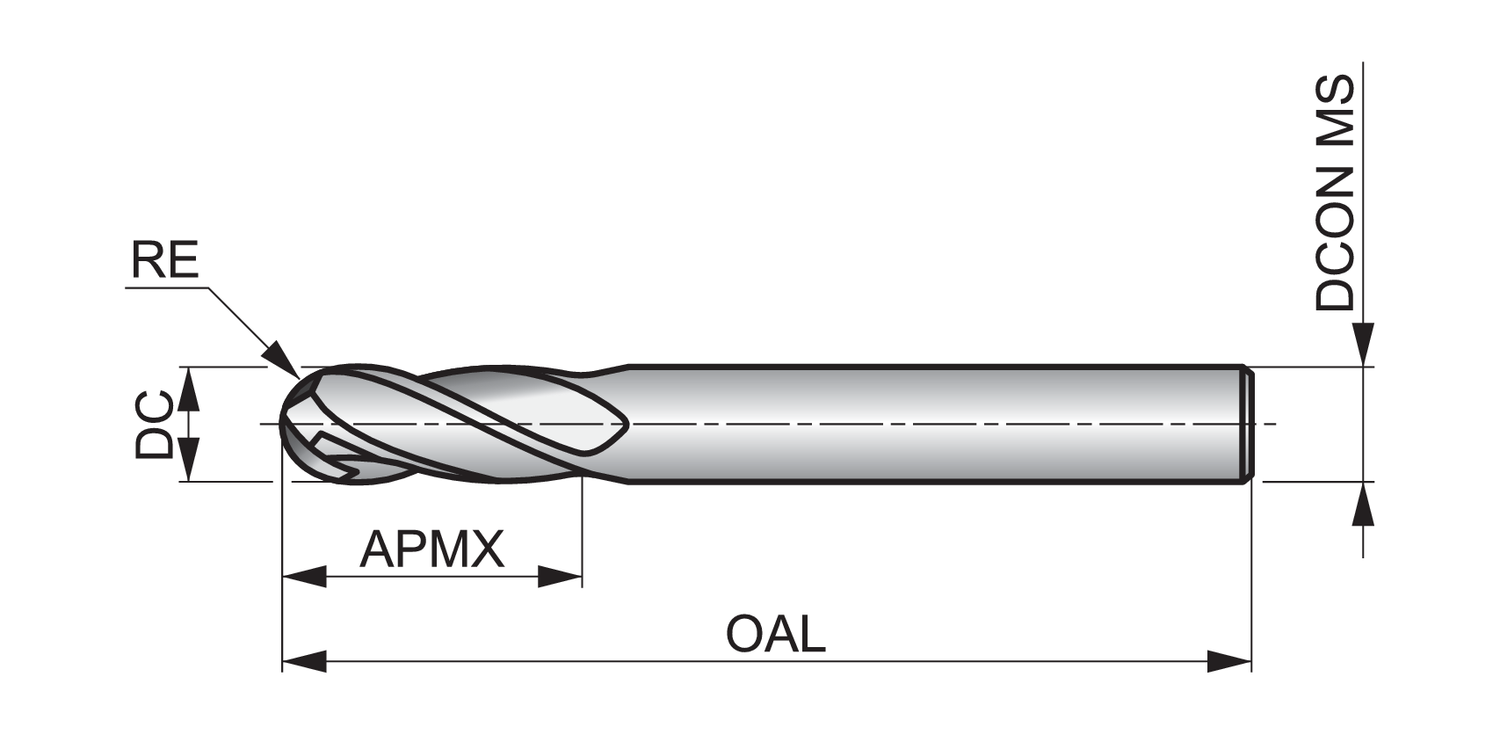

Connection diameter - fractional inch (DCON MS)
1/8
Connection diameter - inch (DCON MS)
0.125
Connection diameter - millimeter (DCON MS)
3.18
Corner radius - fractional inch (RE)
1/16
Corner radius - inch (RE)
0.063
Cut length
Medium
Cutting diameter - fractional inch (DC)
1/8
Cutting diameter - inch (DC)
0.125
Cutting diameter - millimeter (DC)
3.18
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
1/2
EDP number
7648847
Flute count (NOF)
4
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
7648847
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S1381/8
Overall length - fractional inch (OAL)
1.1/2
Overall length - inch (OAL)
1.5
Overall length - millimeter (OAL)
38.1
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
S138 4-flute end mills have ball nose geometry for high performance contouring of complex surfaces.
They can be used for plunging, ramping and profile milling in steels, stainless steels and cast iron and are manufactured from premium carbide for improved performance and longer tool.
The bright finish ensures a clean and accurate result by preventing workpiece material from sticking to the cutting edges of the tool, whilst the medium length flute makes sure you have the rigidity needed for increased strength and reduced vibration
