Dormer S1465/8 7648889 Ball-Nosed End Mill 4FL 5/8 inch
MODEL 7648889
$139.44 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

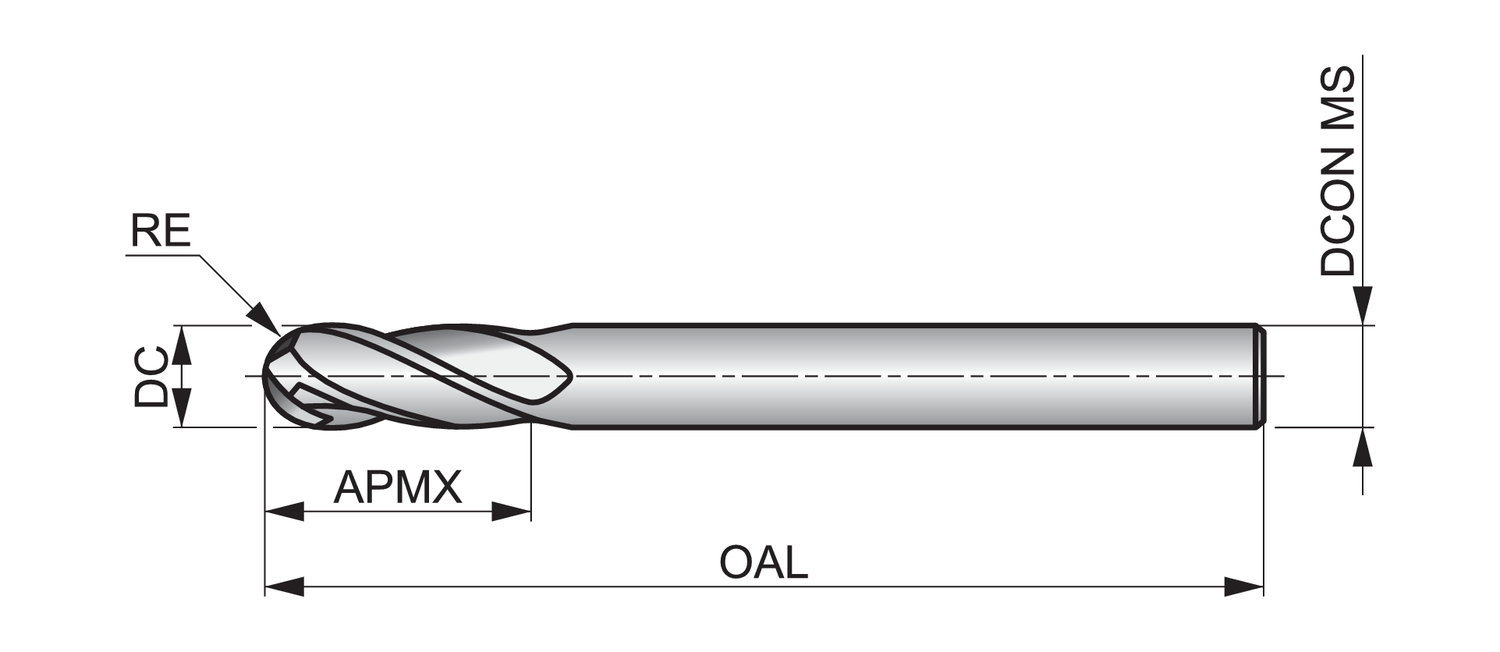

Connection diameter - fractional inch (DCON MS)
5/8
Connection diameter - inch (DCON MS)
0.625
Connection diameter - millimeter (DCON MS)
15.88
Corner radius - fractional inch (RE)
5/16
Corner radius - inch (RE)
0.313
Cut length
Long
Cutting diameter - fractional inch (DC)
5/8
Cutting diameter - inch (DC)
0.625
Cutting diameter - millimeter (DC)
15.88
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
2.1/4
EDP number
7648889
Flute count (NOF)
4
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
7648889
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S1465/8
Overall length - fractional inch (OAL)
5"
Overall length - inch (OAL)
5
Overall length - millimeter (OAL)
127
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
S146 4-flute end mills are manufactured from premium carbide for longer tool life coupled with great performance.
The ball nose geometry means they are ideal for high performance contouring of complex surfaces and they can be used for plunging, ramping and profile milling in stainless steels, steels and cast iron.
The long shank length provides high rigidity for reduced vibration and increased strength.
S146 4-flute ball nose milling cutters have a bright finish to stop workpiece material from sticking to the cutting edges of the tool, so you get a clean and accurate result
