Dormer S2085/8 7648557 End Mill 2FL 5/8 inch
MODEL 7648557
$113.33 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiAlN
Coating property (CTP)
1

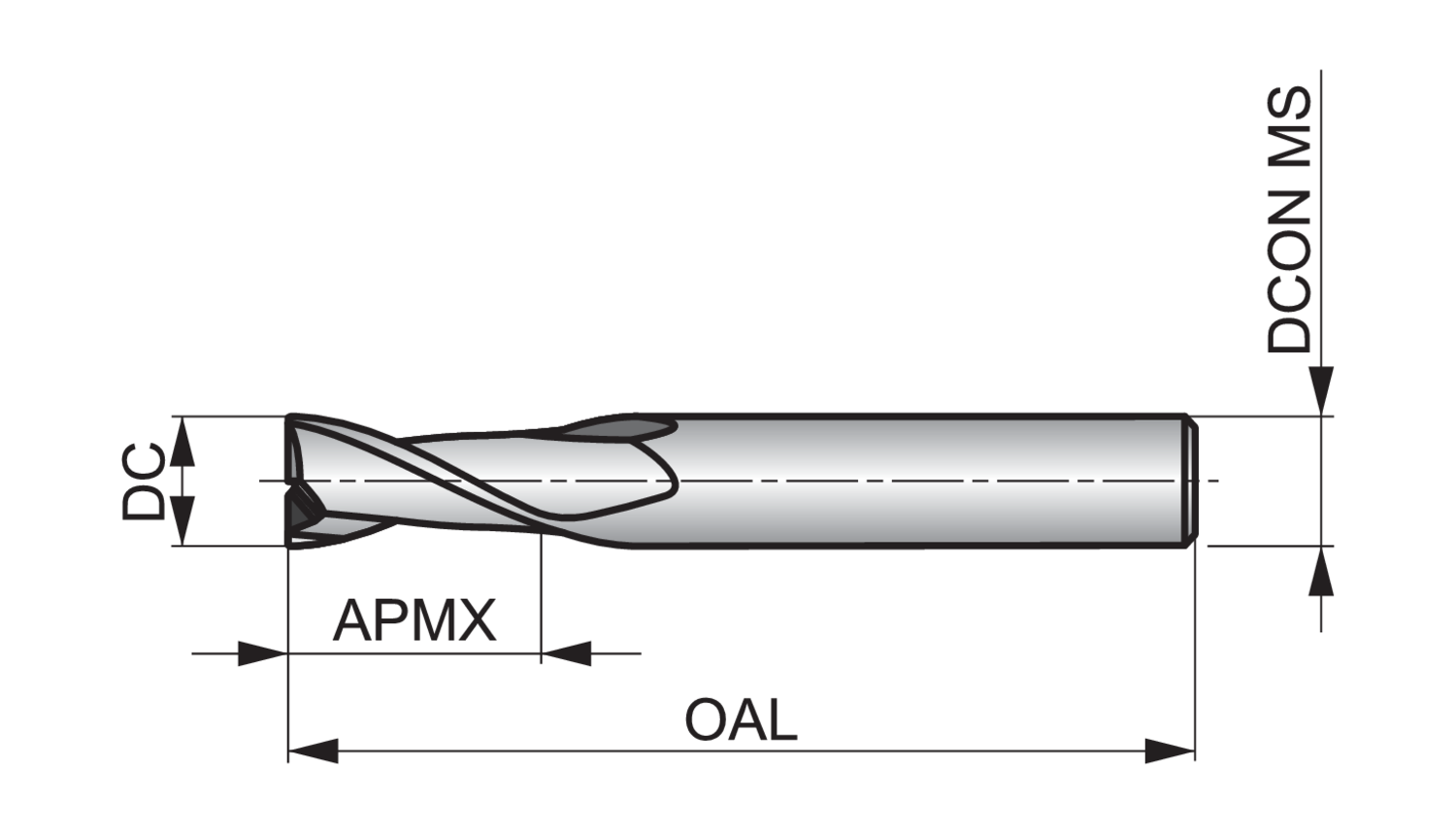

Connection diameter - fractional inch (DCON MS)
5/8
Connection diameter - inch (DCON MS)
0.625
Connection diameter - millimeter (DCON MS)
15.88
Cut length
Medium
Cutting diameter - fractional inch (DC)
5/8
Cutting diameter - inch (DC)
0.625
Cutting diameter - millimeter (DC)
15.88
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
1.1/4
EDP number
7648557
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
7648557
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S2085/8
Overall length - fractional inch (OAL)
3.1/2
Overall length - inch (OAL)
3.5
Overall length - millimeter (OAL)
88.9
Radial rake angle (GAMF)
8
Shank
Cylindrical shank
Part of Dormer’s extensive carbide milling cutter range, S208 2-flute slot drills are manufactured from premium carbide for longer tool life and great performance, and have an aluminium titanium nitride coating to prevent workpiece material from sticking to the cutting edges of the tool, so ensuring a clean and accurate surface.
The medium length flute design gives high rigidity to improve strength and reduce vibration, and the tools can be used for plunging, ramping and profile milling in steels, stainless steels and cast irons.
S208 carbide milling cutters are a good, economical range for general milling of slots on most types of machines
