Image for Illustration purposes only. Actual product may vary
Dormer S21916.0 6706646 End Mill 16.00 mm
MODEL 6706646
$257.35 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
AlTiN
Coating property (CTP)
1

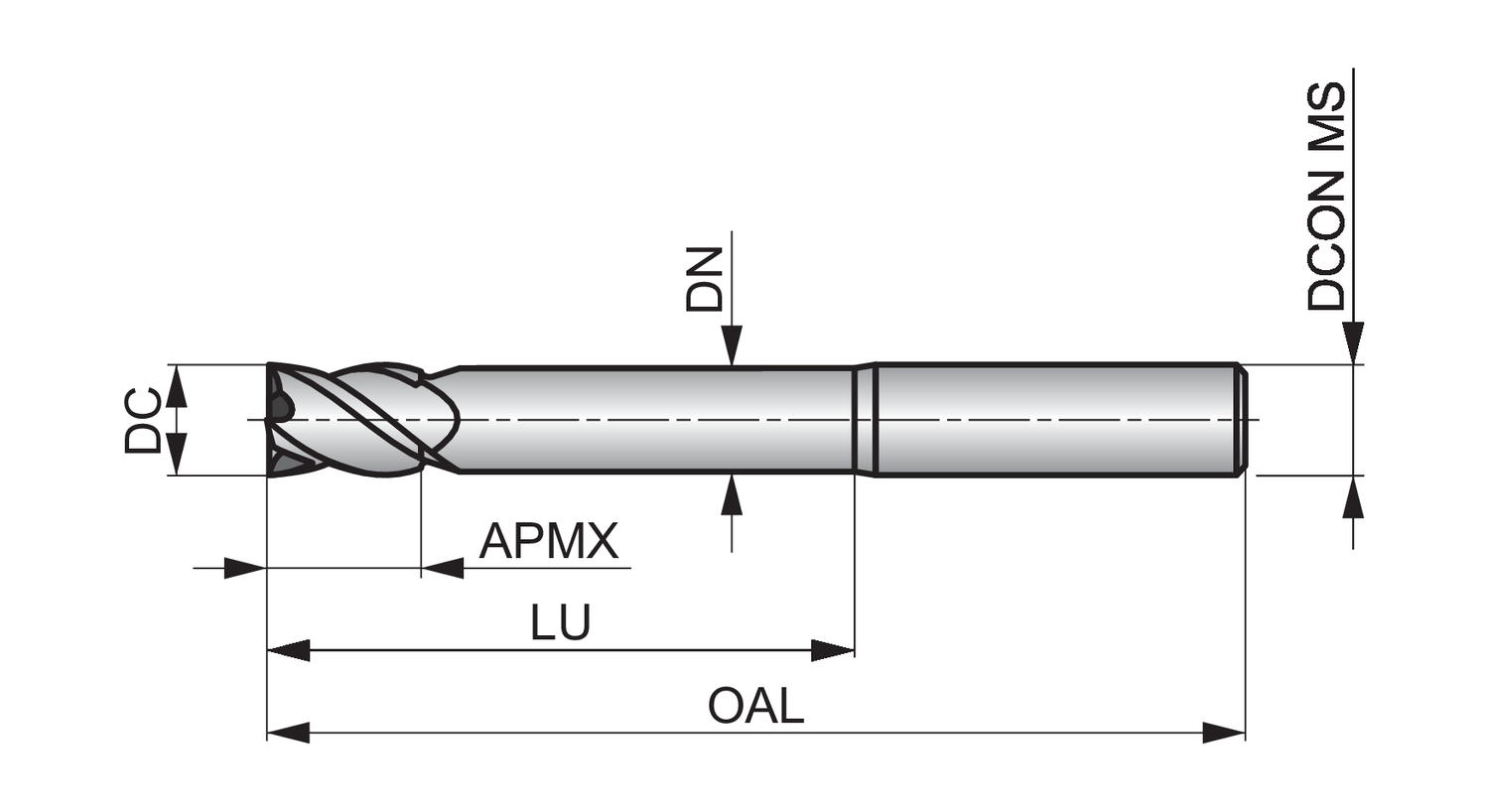

Connection diameter - inch (DCON MS)
0.6299
Connection diameter - millimeter (DCON MS)
16
Cut length
Extra short
Cutting diameter - inch (DC)
0.6299
Cutting diameter - millimeter (DC)
16
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.8661
Depth of cut maximum - millimeter (APMX)
22
EDP number
46706646
Flute count (NOF)
4
Flute helix angle (FHA)
40
Material
HM
Material application
M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
6706646
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.5906
Neck diameter - millimeter (DN)
15
Ordering code ANSI
S21916.0
Overall length - inch (OAL)
4.9213
Overall length - millimeter (OAL)
125
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
3
Shank
Cylindrical shank DIN 6535 HA
Usable Length - millimeter (LU)
85
For high rigidity when milling and profiling in hard to reach areas, S219 4 flute milling cutters have a long reach and a 40 degree helix angle for high performance profiling on CNC machines.
The aluminium titanium nitride coating increases the life of the tool and improves performance when milling difficult to machine materials and the premium carbide used in manufacture will further extend tool life and give you superior performance.
S219 4 flute milling cutters are designed specifically for milling heat resistant alloys and other difficult to machine materials
