Dormer S223HA3/8XR.015 7648683 Corner Radius End Mill 3/8 inch
MODEL 7648683
$49.56 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
AlTiN
Coating property (CTP)
1

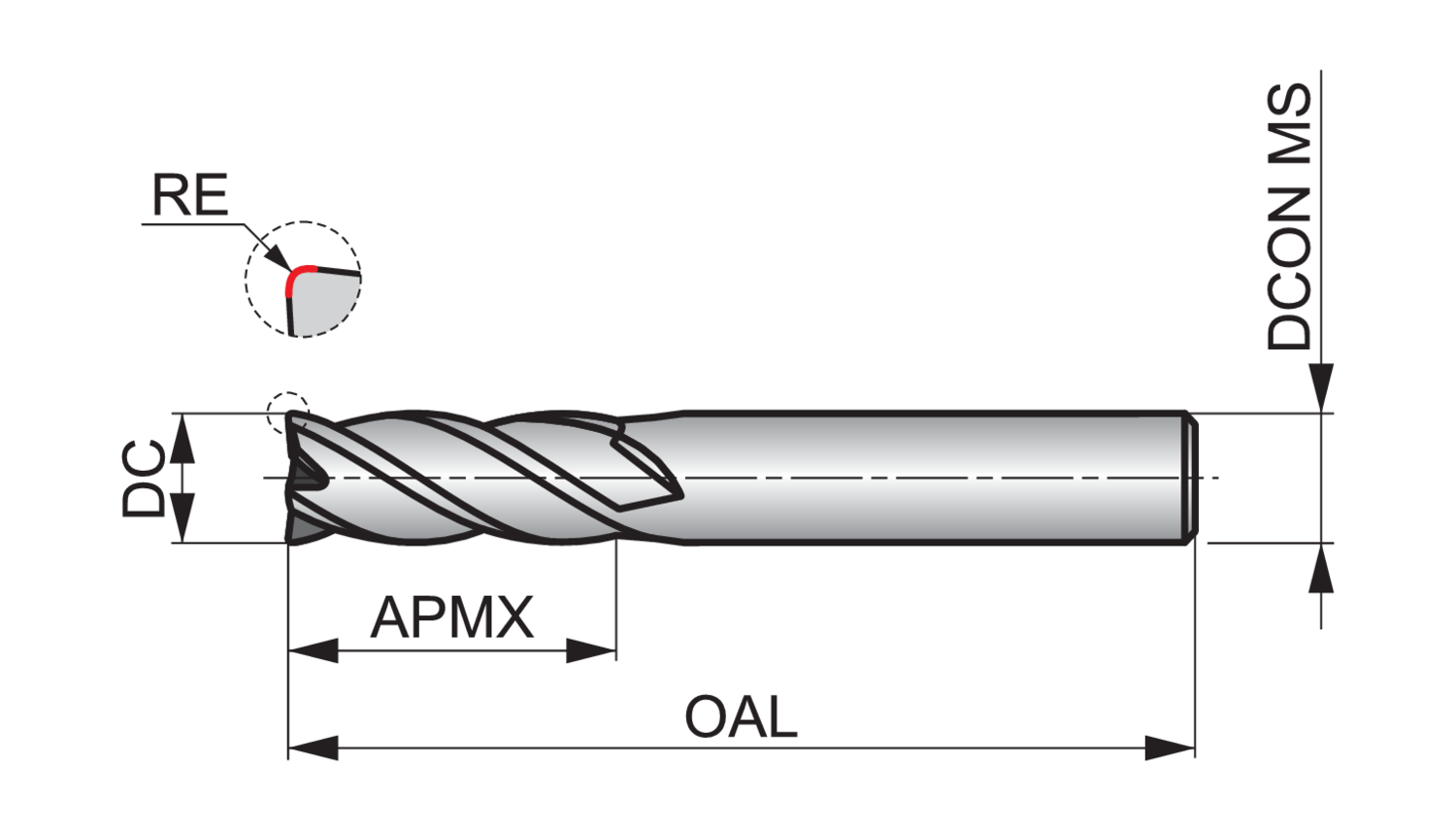

Connection diameter - fractional inch (DCON MS)
3/8
Connection diameter - inch (DCON MS)
0.375
Connection diameter - millimeter (DCON MS)
9.53
Corner radius - inch (RE)
0.015
Cut length
Medium
Cutting diameter - fractional inch (DC)
3/8
Cutting diameter - inch (DC)
0.375
Cutting diameter - millimeter (DC)
9.53
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
7/8
EDP number
7648683
Flute count (NOF)
4
Flute helix unequal
1
Material
HM
MID number
7648683
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S223HA3/8XR.015
Overall length - fractional inch (OAL)
2.1/2
Overall length - inch (OAL)
2.5
Overall length - millimeter (OAL)
63.5
Radial rake angle (GAMF)
8
Shank
Cylindrical shank DIN 6535 HA
S223HA 4-flute end mills with a plain shank are manufactured from premium carbide to give you great performance and a long tool life, whilst the aluminium titanium nitride coating prevents workpiece material from sticking to the cutting edges of the tool so you get a clean and accurate result.
With a medium length flute for high rigidity for milling standard slots and profiling, and a special unequal helix geometry designed to reduce vibration and improve surface finish when used in CNC machines, S223HA 4-flute milling cutters are very versatile and can be used for plunging, ramping and profile milling in steels, cast iron and stainless steels
