Dormer S2465/8 7648893 Ball-Nosed End Mill 4FL 5/8 inch
MODEL 7648893
$156.67 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiAlN
Coating property (CTP)
1

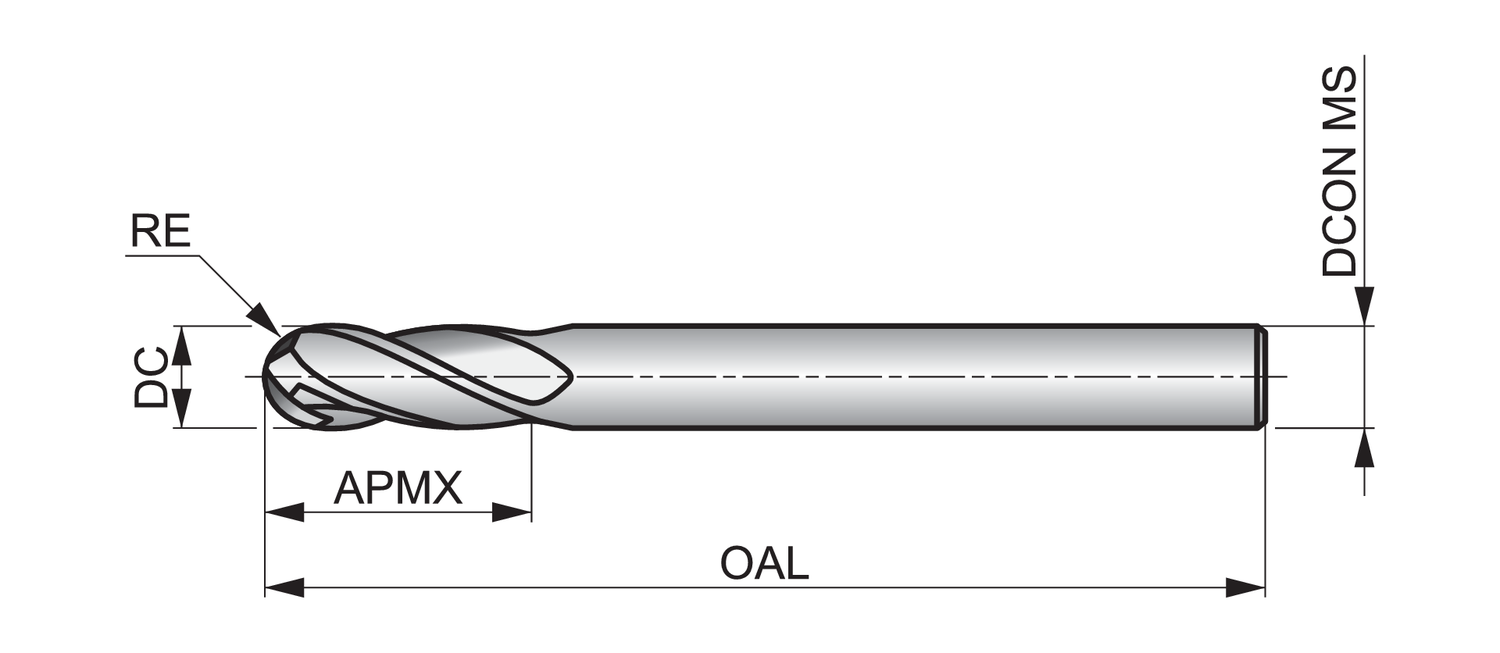

Connection diameter - fractional inch (DCON MS)
5/8
Connection diameter - inch (DCON MS)
0.625
Connection diameter - millimeter (DCON MS)
15.88
Corner radius - fractional inch (RE)
5/16
Corner radius - inch (RE)
0.313
Cut length
Long
Cutting diameter - fractional inch (DC)
5/8
Cutting diameter - inch (DC)
0.625
Cutting diameter - millimeter (DC)
15.88
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
2.1/4
EDP number
7648893
Flute count (NOF)
4
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel
MID number
7648893
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S2465/8
Overall length - fractional inch (OAL)
5"
Overall length - inch (OAL)
5
Overall length - millimeter (OAL)
127
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
S246 4-flute end mills come with ball nose geometry, designed for high performance contouring of complex surfaces and can be used for profile milling, plunging and ramping in steels, cast irons and stainless steels.
The aluminium titanium nitride coating prevents workpiece material from sticking to the cutting edges of the tool so you get clean, accurate results, whilst the long shank length provides high rigidity for reduced vibration and increased strength.
S246 4-flute ball nose carbide milling cutters are manufactured from premium carbide so you get great performance and extended tool life
