Dormer S2471/2 7648906 Ball-Nosed End Mill 4FL 1/2 inch
MODEL 7648906
$132.22 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER"
Coating
TiAlN
Coating property (CTP)
1

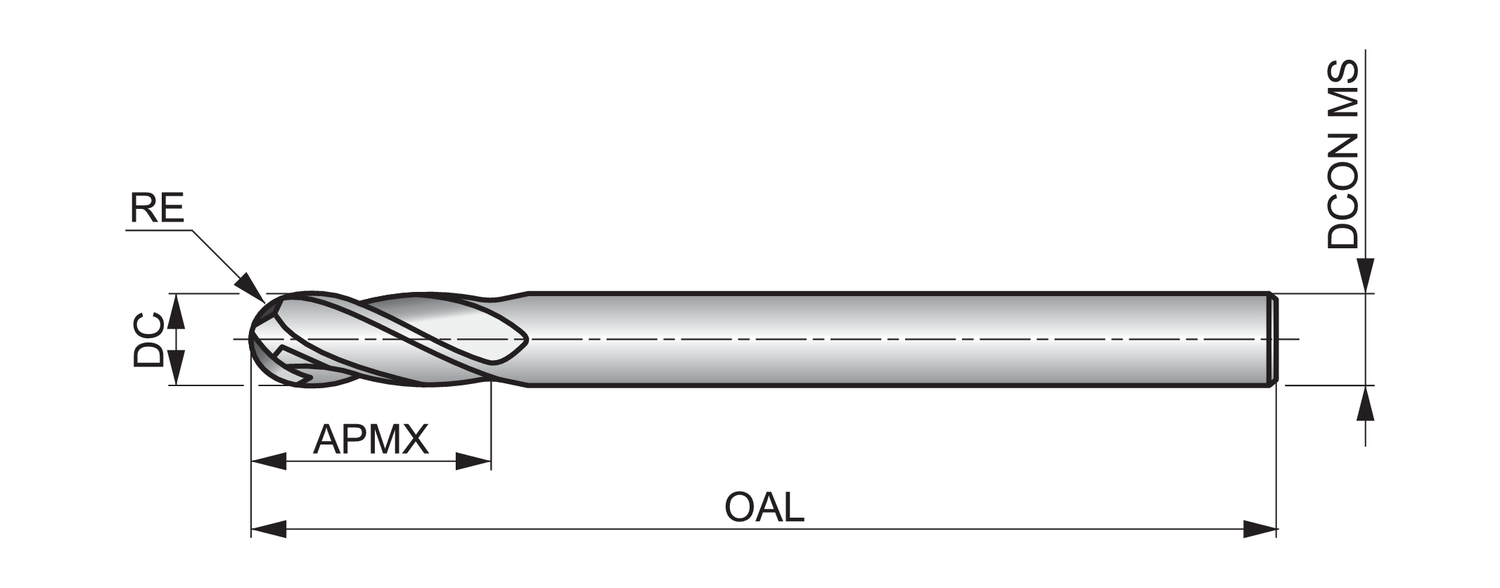

Connection diameter - fractional inch (DCON MS)
1/2
Connection diameter - inch (DCON MS)
0.5
Connection diameter - millimeter (DCON MS)
12.7
Corner radius - fractional inch (RE)
1/4
Corner radius - inch (RE)
0.25
Cut length
Extra long
Cutting diameter - fractional inch (DC)
1/2
Cutting diameter - inch (DC)
0.5
Cutting diameter - millimeter (DC)
12.7
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
3
EDP number
7648906
Flute count (NOF)
4
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel
MID number
7648906
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S2471/2
Overall length - fractional inch (OAL)
6"
Overall length - inch (OAL)
6
Overall length - millimeter (OAL)
152.4
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
S247 4-flute end mills are suitable for plunging, ramping and profile milling in steel, stainless steelss and cast irons, and have a ball nose for high performance contouring of complex surfaces.
You can be sure of great performance and longer tool life thanks to the premium carbide used in manufacture, and the aluminium titanium nitride coating guarantees great results by preventing workpiece material from sticking to the cutting surfaces of the tool.
S247 4-flute ball nose milling cutters have an ext
