Dormer S248HB3/8XR.015 7648929 Corner Radius End Mill 3/8 inch
MODEL 7648929
$56.11 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER

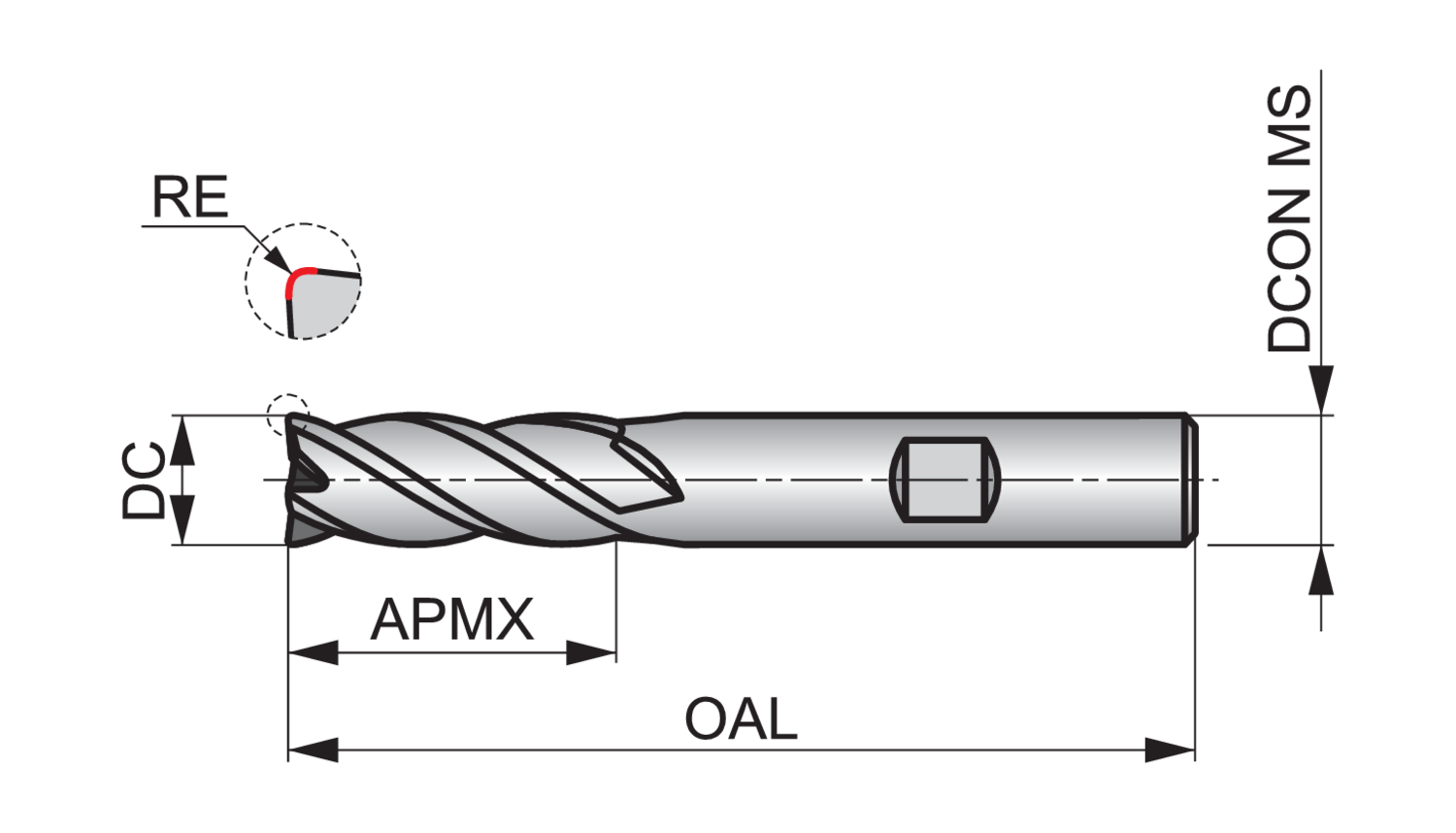

Coating
AlTiN
Coating property (CTP)
1
Connection diameter - fractional inch (DCON MS)
3/8
Connection diameter - inch (DCON MS)
0.375
Connection diameter - millimeter (DCON MS)
9.53
Corner radius - inch (RE)
0.015
Cut length
Medium
Cutting diameter - fractional inch (DC)
3/8
Cutting diameter - inch (DC)
0.375
Cutting diameter - millimeter (DC)
9.53
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
7/8
EDP number
7648929
Flute count (NOF)
5
Flute helix unequal
1
Material
HM
MID number
7648929
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S248HB3/8XR.015
Overall length - fractional inch (OAL)
2.1/2
Overall length - inch (OAL)
2.5
Overall length - millimeter (OAL)
63.5
Radial rake angle (GAMF)
8
Shank
Cylindrical shank DIN 6535 HB
Part of Dormer’s extensive carbide milling cutter range, S248HB 5-flute, Weldon shank end mills have a medium length flute, designed to provide high rigidity for standard profile milling.
With great performance and longer tool life assured, thanks to the premium carbide used in manufacture, the tools are a very versatile choice and can be used for ramping, plunging and profile milling in stainless steels, cast irons and steels.
The special unequal helix geometry reduces vibration and improves surface finish when used in CNC machines and the aluminium titanium nitride coating ensures a clean and accurate finish by preventing workpiece material from sticking to the cutting surfaces of the tool
