Dormer S5019.0 5983182 Ball-Nosed End Mill 9.00 mm
MODEL 5983182
$165.10 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
X-CEED
Coating property (CTP)
1

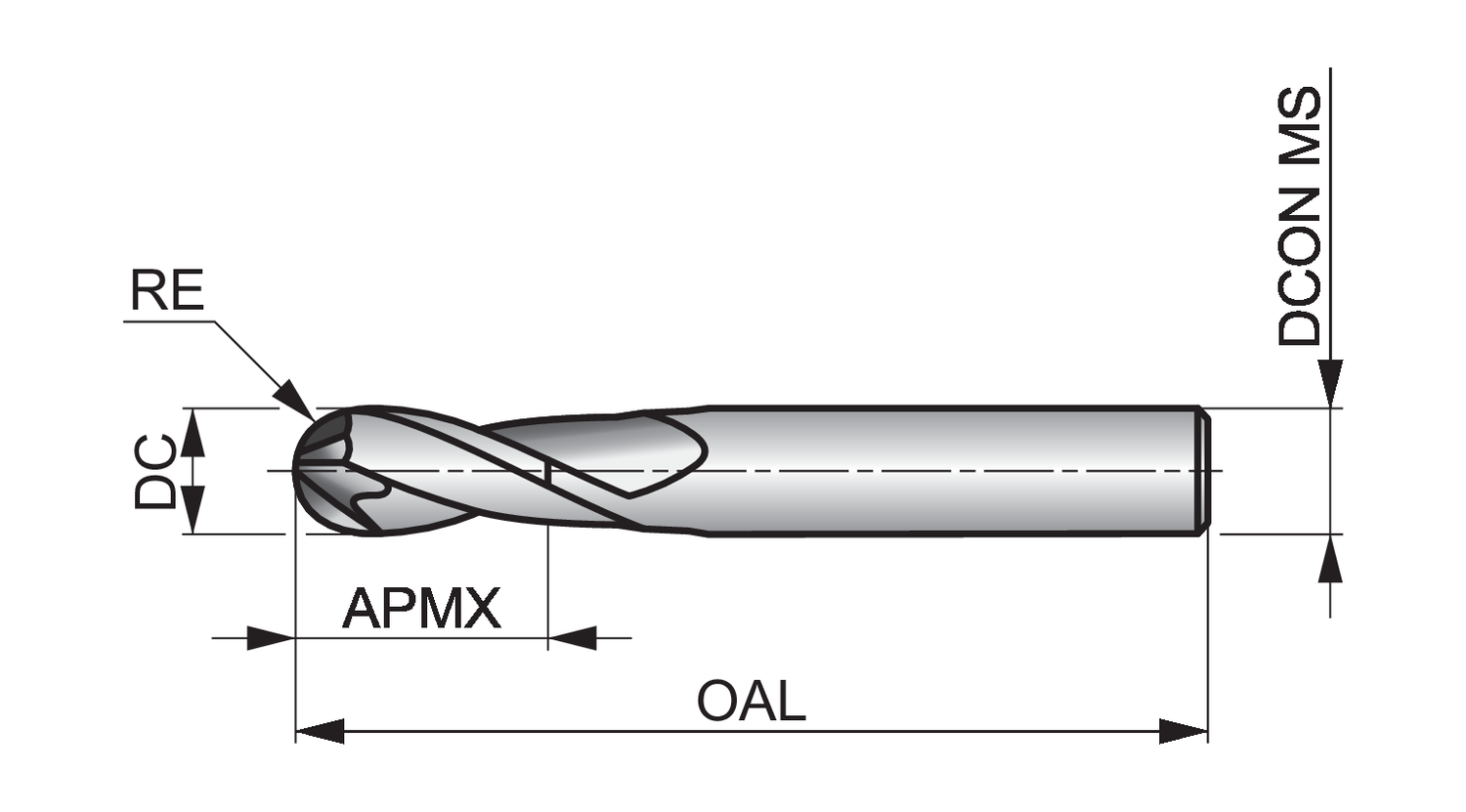

Connection diameter - inch (DCON MS)
0.3937
Connection diameter - millimeter (DCON MS)
10
Corner radius - inch (RE)
0.1772
Corner radius - millimeter (RE)
4.5
Cut length
Short
Cutting diameter - inch (DC)
0.3543
Cutting diameter - millimeter (DC)
9
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.6299
Depth of cut maximum - millimeter (APMX)
16
EDP number
342480
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
5983182
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S5019.0
Overall length - inch (OAL)
2.8346
Overall length - millimeter (OAL)
72
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
10
Shank
Cylindrical shank DIN 6535 HA
S501 2-flute milling cutters from Dormer have ball nose geometry for high performance contouring of complex surfaces.
The X-CEED coating improves performance when milling difficult to machine materials and extends the tool life.
Manufactured from premium carbide material for superior performance, the standard 2-flute design will provide the rigidity needed for increased strength and reduced vibration.
S501 ball nose milling cutters can be used for contour milling in steels, stainless steelss and cast iron
