Dormer S5234.0XR0.5XD6 6706734 Corner Radius End Mill 4.00 mm x 0.5 mm x 6.0 mm
MODEL 6706734
$66.98 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiSiN
Coating property (CTP)
1

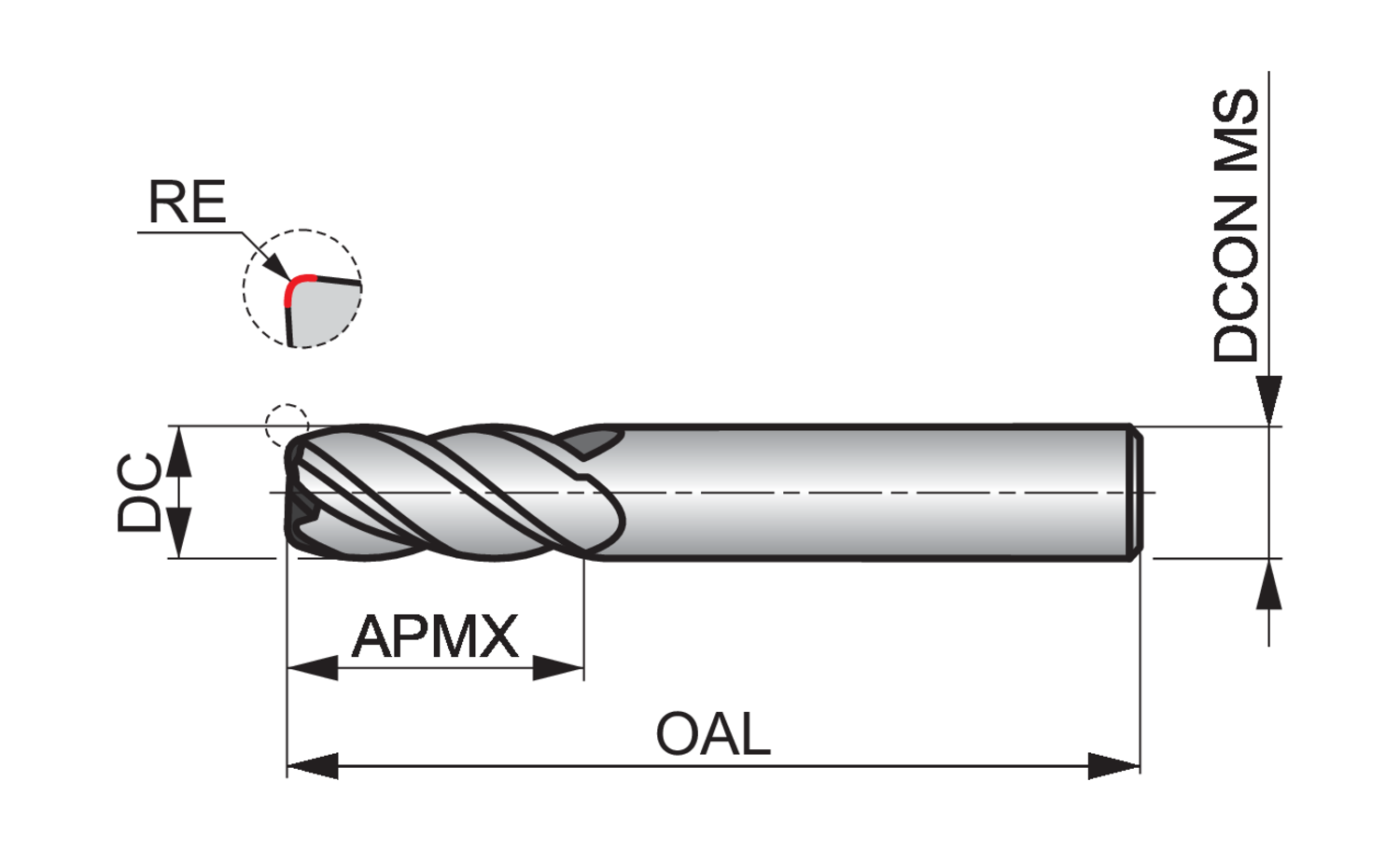

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Corner radius - inch (RE)
0.0197
Corner radius - millimeter (RE)
0.5
Cut length
Short
Cutting diameter - inch (DC)
0.1575
Cutting diameter - millimeter (DC)
4
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.4724
Depth of cut maximum - millimeter (APMX)
12
EDP number
46706734
Flute count (NOF)
4
Flute helix angle (FHA)
40
Material
HM
Material application
H - Hardened materials
MID number
6706734
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S5234.0XR0.5XD6
Overall length - inch (OAL)
1.9685
Overall length - millimeter (OAL)
50
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
-6
Shank
Cylindrical shank DIN 6535 HA
One of Dormer’s range of carbide cutters, the S523 corner radius milling cutter has a standard flute design with corner radius, providing high rigidity for standard profile milling where a standard radius is required.
Made from premium carbide for great performance and longer tool life, the milling cutters have a titanium silicon nitride coating, which further increases the life of the tool and improves performance when milling difficult to machine materials.
S523 corner radius end mills have a 40 degree helix for high performance profiling on CNC machines and are designed specifically for high speed machining in hardened tool steels up to 63HRC
