Dormer S52412.0XR0.5 6706665 Corner Radius End Mill 12.00 mm x 0.5 mm
MODEL 6706665
$212.11 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiSiN
Coating property (CTP)
1

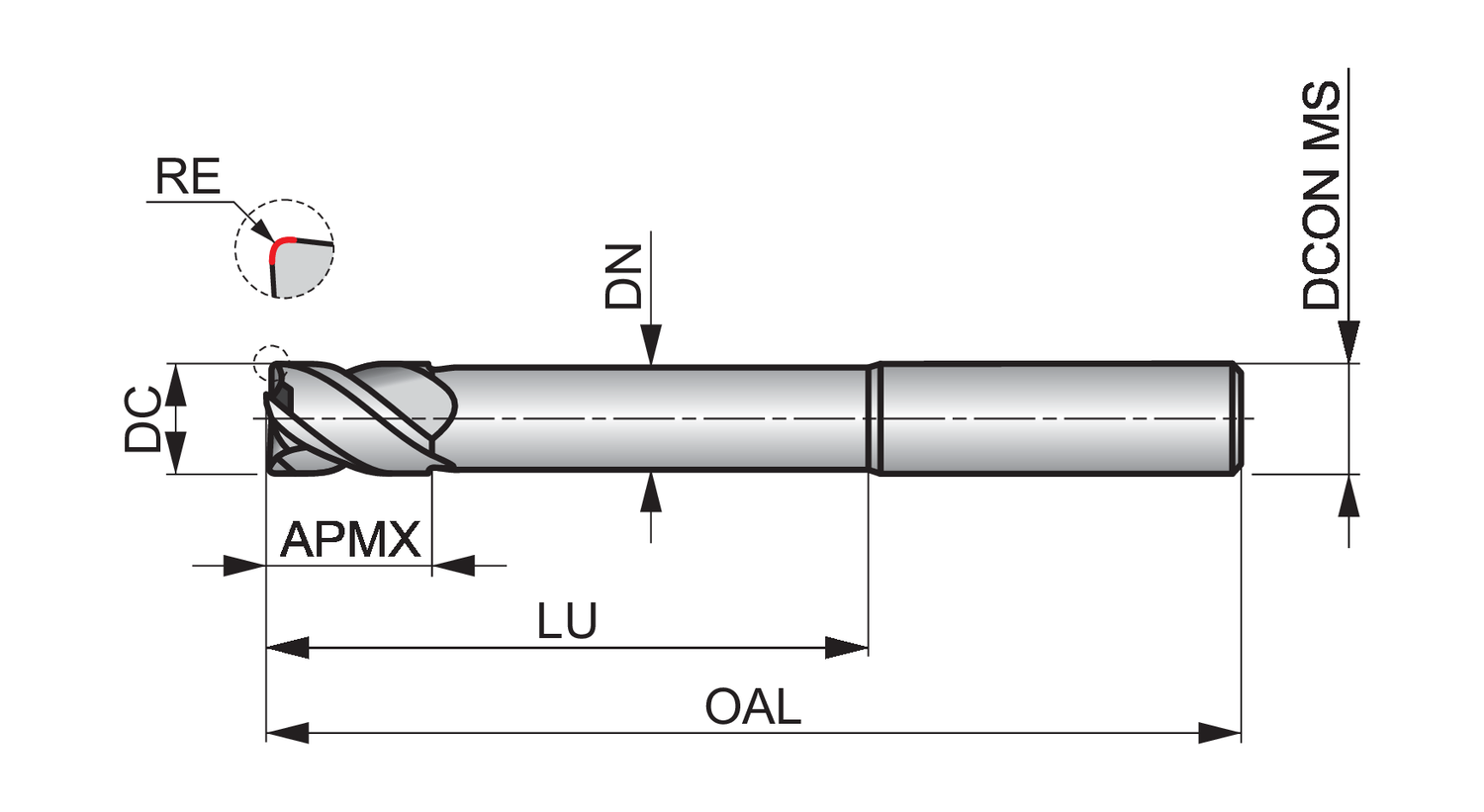

Connection diameter - inch (DCON MS)
0.4724
Connection diameter - millimeter (DCON MS)
12
Corner radius - inch (RE)
0.0197
Corner radius - millimeter (RE)
0.5
Cut length
Extra short
Cutting diameter - inch (DC)
0.4724
Cutting diameter - millimeter (DC)
12
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.6299
Depth of cut maximum - millimeter (APMX)
16
EDP number
46706665
Flute count (NOF)
4
Flute helix angle (FHA)
40
Material
HM
Material application
H - Hardened materials
MID number
6706665
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.4331
Neck diameter - millimeter (DN)
11
Ordering code ANSI
S52412.0XR0.5
Overall length - inch (OAL)
3.937
Overall length - millimeter (OAL)
100
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
-6
Shank
Cylindrical shank DIN 6535 HA
Usable Length - millimeter (LU)
60
S524 4-flute milling cutters are manufactured from premium carbide, providing extended tool life and superior performance.
They have a long reach flute design with corner radius, giving high rigidity for standard profile milling in hard to reach areas needing a fillet radius, whilst the 40 degree helix gives high performance profiling on CNC machines.
S524 milling cutters have a titanium silicon nitride coating for great results when milling difficult to machine materials and further extending the life of the tools.
S524 milling cutters are application products – designed particularly for high speed machining in hardened tool steels up to 63HRC
