Dormer S52512.0 6706815 Finishing End Mill 12.00 mm
MODEL 6706815
$195.66 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiSiN
Coating property (CTP)
1

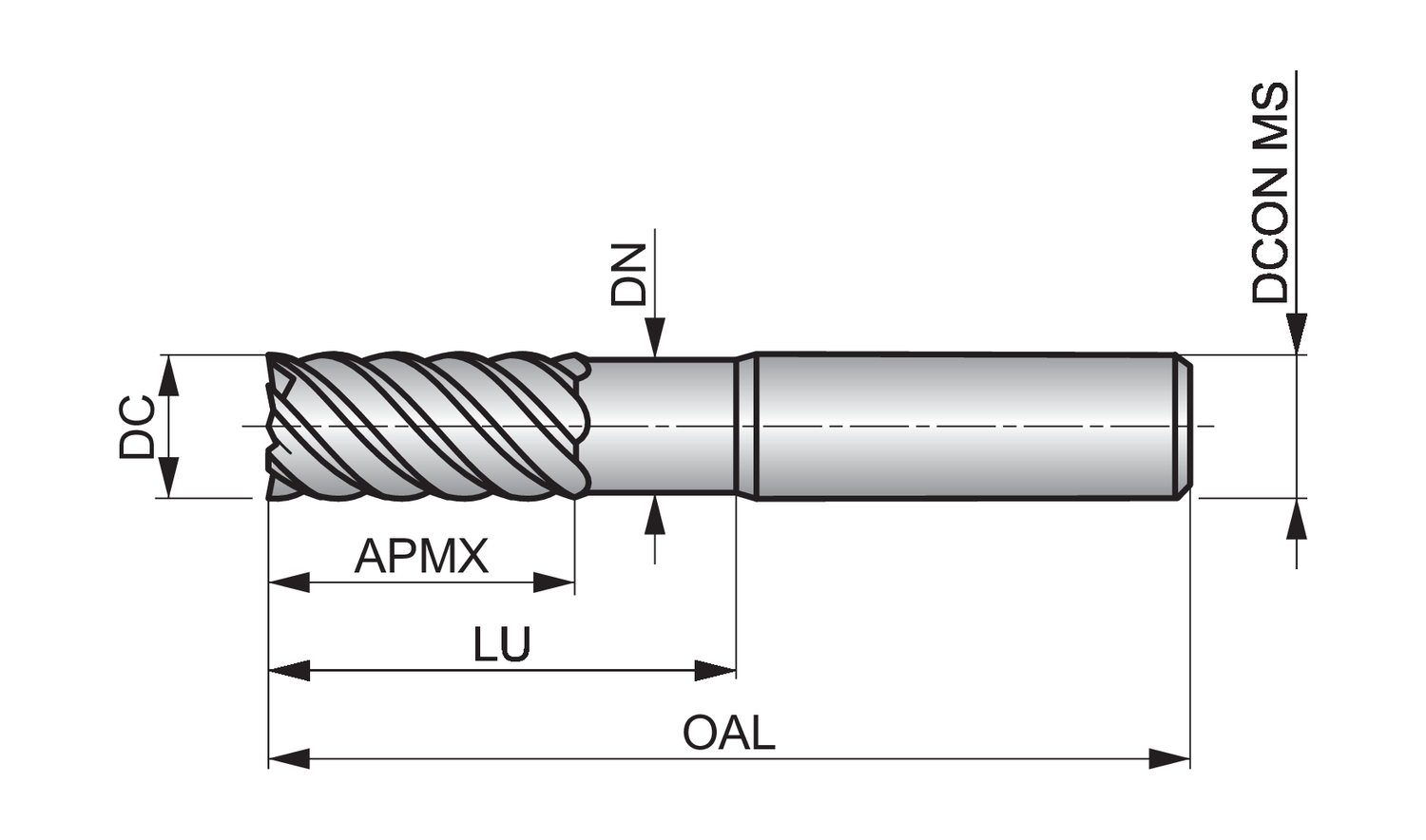

Connection diameter - inch (DCON MS)
0.4724
Connection diameter - millimeter (DCON MS)
12
Cut length
Short
Cutting diameter - inch (DC)
0.4724
Cutting diameter - millimeter (DC)
12
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.9843
Depth of cut maximum - millimeter (APMX)
25
EDP number
46706815
Flute count (NOF)
6
Flute helix angle (FHA)
50
Material
HM
Material application
H - Hardened materials
MID number
6706815
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.4331
Neck diameter - millimeter (DN)
11
Ordering code ANSI
S52512.0
Overall length - inch (OAL)
2.9528
Overall length - millimeter (OAL)
75
Peripheral effective cutting edge count (ZEFP)
6
Radial rake angle (GAMF)
-26
Shank
Cylindrical shank DIN 6535 HA
Usable Length - millimeter (LU)
37
S525 carbide multi flute milling cutters are designed specifically for milling in non-ferrous materials such as aluminium.
For high performance profiling on CNC machines, the tools come with a 50 degree helix, whilst the multi flute feature provides high rigidity for finishing of profiles.
With a titanium silicon nitride coating for longer tool life and improved performance milling difficult to machine materials, the cutters are manufactured from premium carbide for great results and to further extend tool life
