Dormer S5611.5 8030371 End Mill
MODEL 8030371
$59.34 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiSiN

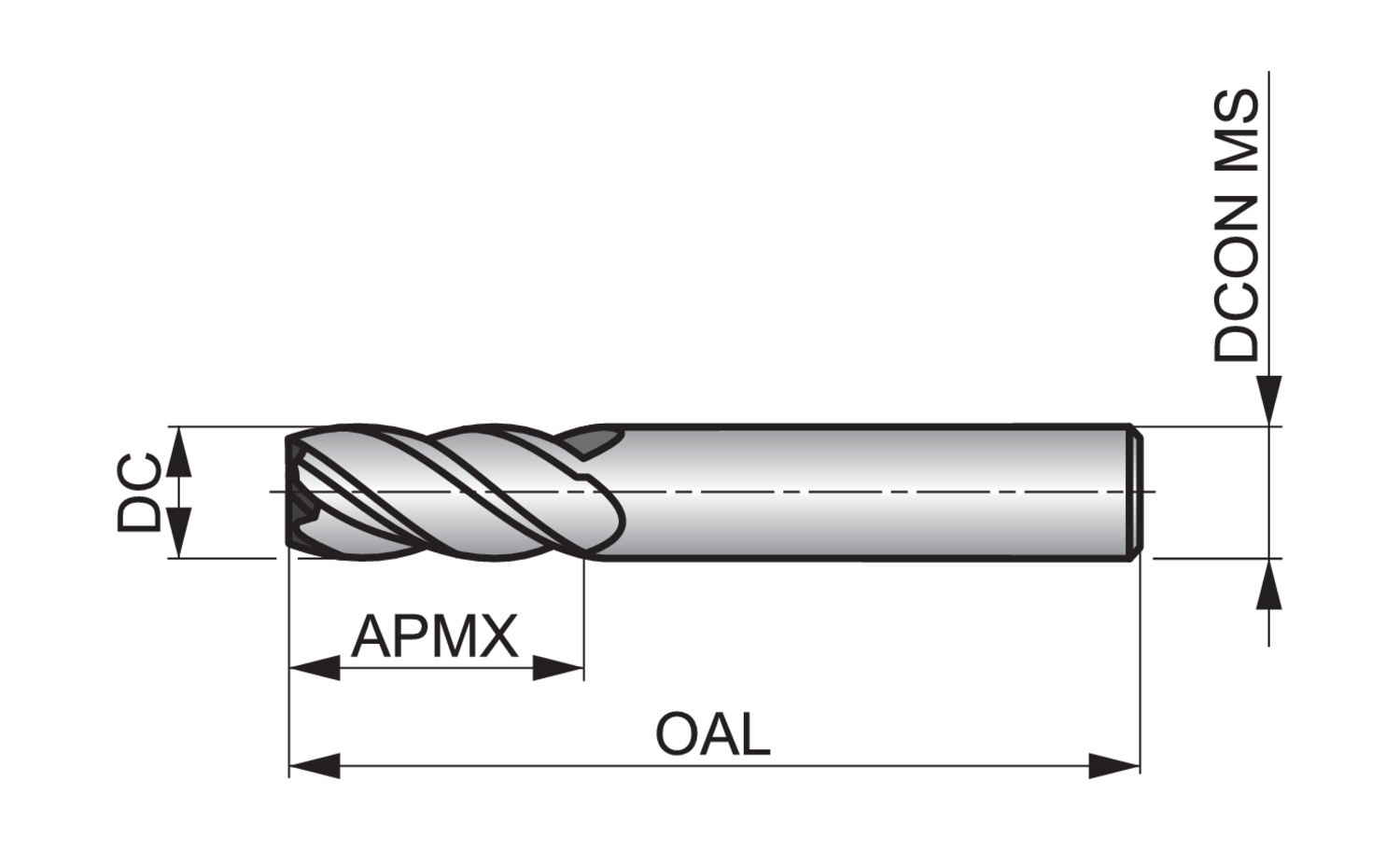

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Cut length
Medium
Cutting diameter - inch (DC)
0.0591
Cutting diameter - millimeter (DC)
1.5
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.1772
Depth of cut maximum - millimeter (APMX)
4.5
EDP number
8030371
Flute count (NOF)
4
Flute helix angle (FHA)
40
Material application
H - Hardened materials
Material code (BMC)
HM
MID number
8030371
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S5611.5
Overall length - inch (OAL)
1.9685
Overall length - millimeter (OAL)
50
Radial rake angle (GAMF)
-6
Shank
Cylindrical shank DIN 6535 HA
S561 milling cutters have a differential pitch which reduces chatter and vibration, improving surface finish and tool life which is further increased thanks to the titanium silicon nitride coating which reduces friction and gives excellent wear resistance.
With a robust geometry to improve strength and resistance to chipping, S561 milling cutters have sharp corners to create true shoulders where fillet radii are not required.
The negative rake angle means the cutters can machine hardened steel between 52 and 70 Hrc
