Dormer S65020.0 8030294 End Mill
MODEL 8030294
$227.38 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

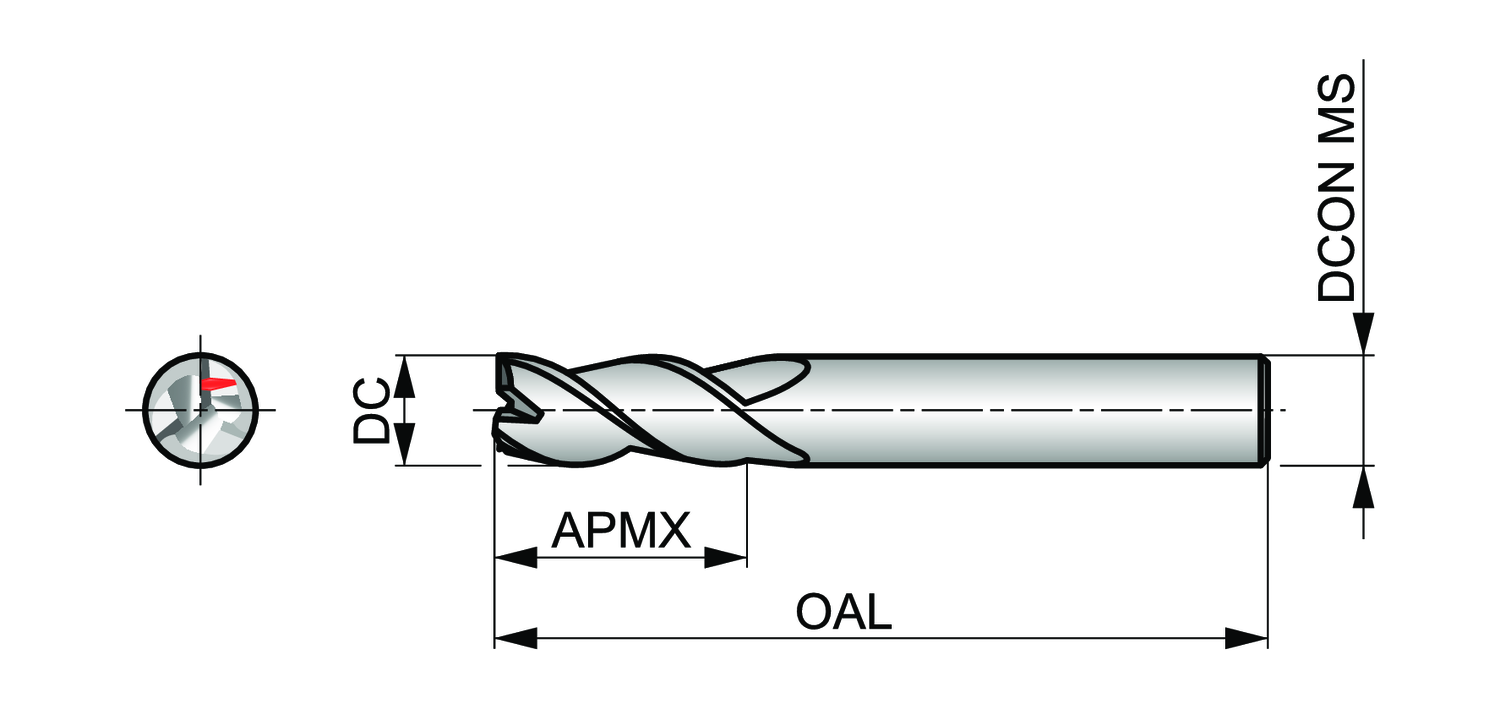

Connection diameter - inch (DCON MS)
0.7874
Connection diameter - millimeter (DCON MS)
20
Cut length
Short
Cutting diameter - inch (DC)
0.7874
Cutting diameter - millimeter (DC)
20
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
1.4961
Depth of cut maximum - millimeter (APMX)
38
EDP number
8030294
Flute count (NOF)
3
Flute helix angle (FHA)
40
Material application
N - Non-ferrous metals
Material code (BMC)
HM
MID number
8030294
Mill Profile
W - Non-ferrous Cutter Type for Soft Malleable Materials
Ordering code ANSI
S65020.0
Overall length - inch (OAL)
3.937
Overall length - millimeter (OAL)
100
Radial rake angle (GAMF)
13
Shank
Cylindrical shank DIN 6535 HA
With a bright finish to reduce friction and prevent workpiece material from sticking to the cutting edges of the tool, a cleaner and more accurate finish will be achieved with S650 3-flute milling cutters.
They have a differential pitch to reduce chatter and vibration for better tool life and improved surface finish, and positive geometry, giving you a smooth cutting action for high performance when milling non-ferrous materials.
For improved metal removal rate at higher cutting speeds, S650 milling cutters have a 3-flute design which is very versatile and is capable of slotting, plunging, ramping and contouring
