Dormer S71520.0 6706637 End Mill 20.00 mm
MODEL 6706637
$384.26 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
AlCrN
Coating property (CTP)
1

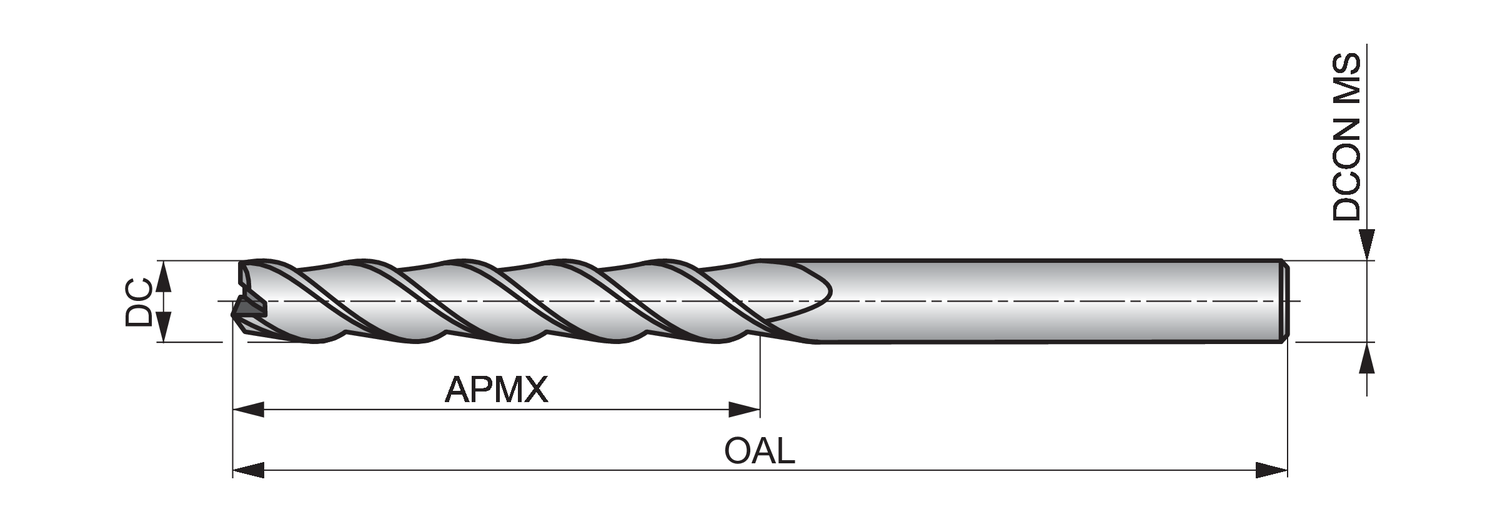

Connection diameter - inch (DCON MS)
0.7874
Connection diameter - millimeter (DCON MS)
20
Cut length
Extra long
Cutting diameter - inch (DC)
0.7874
Cutting diameter - millimeter (DC)
20
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
2.9528
Depth of cut maximum - millimeter (APMX)
75
EDP number
46706637
Flute count (NOF)
3
Flute helix angle (FHA)
40
Material
HM
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
6706637
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S71520.0
Overall length - inch (OAL)
5.9055
Overall length - millimeter (OAL)
150
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
10
Shank
Cylindrical shank DIN 6535 HA
Part of Dormer’s carbide milling cutter range, S715 3-flute slot drills have an extra long series flute design which provides high rigidity for profile milling deep walls.
The tools can be used for plunging, ramping and profile milling in steels, cast iron and stainless steels.
With a 40 degree helix, they are designed for high performance slotting and profiling on CNC machines.
The aluminium chrome nitride coating increases the life of the tool and improves performance when milling difficult to machine materials, whilst the premium carbide used in manufacture ensures you will get great performance and an extended tool life
