Dormer S76512.0 6706867 Roughing End Mill 12.00 mm
MODEL 6706867
$168.63 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
AlCrN
Coating property (CTP)
1

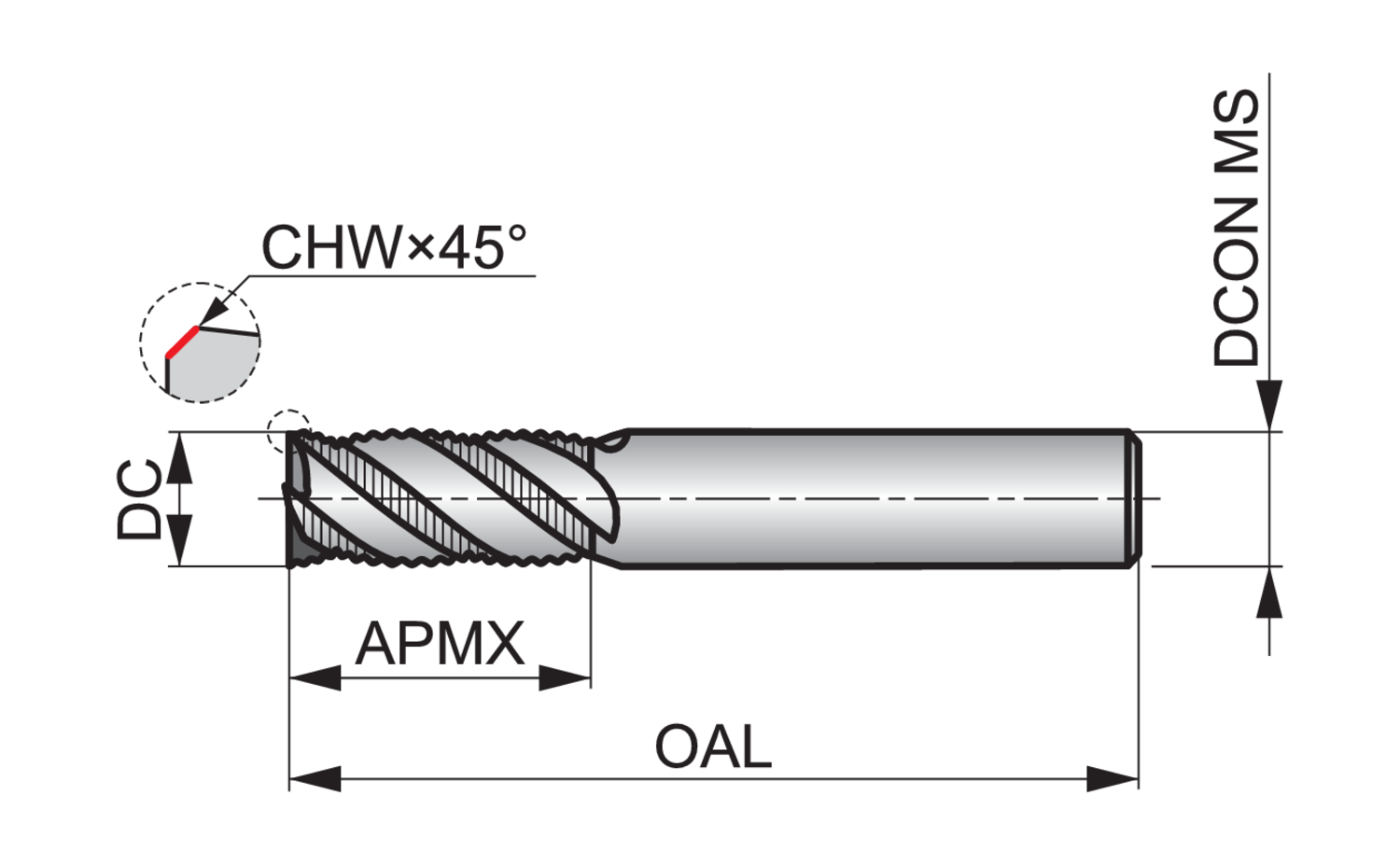

Connection diameter - inch (DCON MS)
0.4724
Connection diameter - millimeter (DCON MS)
12
Corner chamfer width - millimeter (CHW)
0.2
Cut length
Short
Cutting diameter - inch (DC)
0.4724
Cutting diameter - millimeter (DC)
12
Cutting diameter tolerance class (TCDC)
h9
Cutting pitch differential (CPDF)
1
Depth of cut maximum - inch (APMX)
1.0236
Depth of cut maximum - millimeter (APMX)
26
EDP number
46706867
Flute count (NOF)
4
Flute helix angle (FHA)
40
Material
HM
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
6706867
Mill Profile
NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker
Ordering code ANSI
S76512.0
Overall length - inch (OAL)
2.9528
Overall length - millimeter (OAL)
75
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
10
Shank
Cylindrical shank DIN 6535 HA
S765 4-flute milling cutters are ideal for roughing when plunging, ramping and profile milling in steels, cast iron and stainless steels.
They have a medium length flute with NR profile, making them ideal for breaking chips, for efficient roughing applications.
The 40 degree helix with unequal flutes means the vibration is reduced and performance improved when used in CNC machines.
S765 4-flute roughing end mills are manufactured from premium carbide, with an aluminium chrome nitride coating.
These two combined will give superior performance and longer tool life when milling materials which are difficult to machine
