Dormer S765HB14.0 8030366 Roughing End Mill
MODEL 8030366
$223.27 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
AlCrN

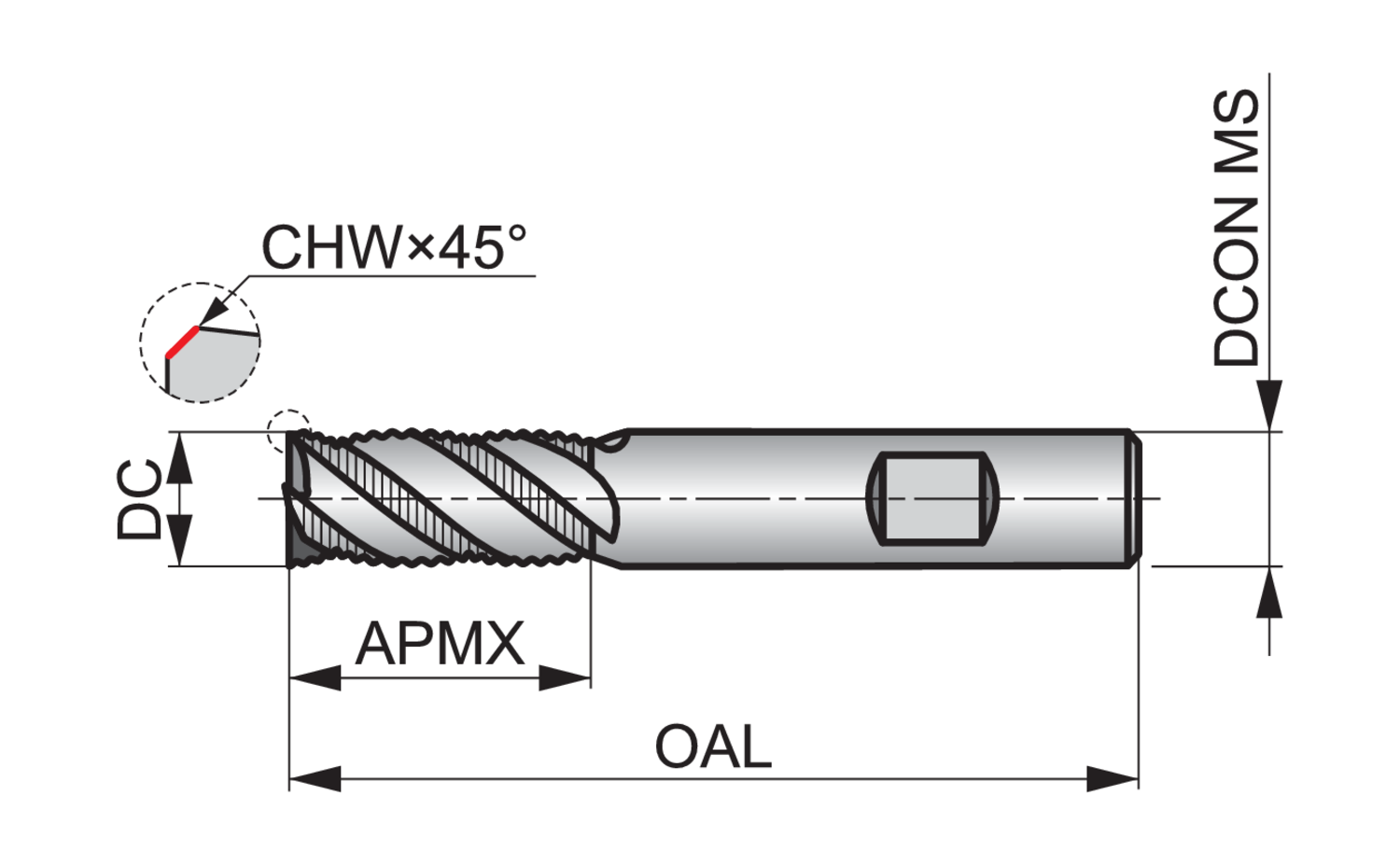

Connection diameter - inch (DCON MS)
0.5512
Connection diameter - millimeter (DCON MS)
14
Corner chamfer width - millimeter (CHW)
0.3
Cut length
Short
Cutting diameter - inch (DC)
0.5512
Cutting diameter - millimeter (DC)
14
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
1.2598
Depth of cut maximum - millimeter (APMX)
32
EDP number
8030366
Flute count (NOF)
4
Flute helix angle (FHA)
40
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
Material code (BMC)
HM
MID number
8030366
Mill Profile
NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker
Ordering code ANSI
S765HB14.0
Overall length - inch (OAL)
3.5433
Overall length - millimeter (OAL)
90
Radial rake angle (GAMF)
10
Shank
Cylindrical shank DIN 6535 HB
Part of Dormer’s range of cutters, S765HB milling cutters have a smooth cutting action to reduce work hardening, thanks to the positive geometry.
The NRA profile breaks swarf into manageable pieces to reduce spindle load and increase metal removal whilst the DIN 6535 HB shank offers secure holding for high metal removal rates.
Reducing friction and providing excellent wear resistance, the aluminium chromium nitride coating will greatly increase tool life.
S765HB milling cutters are a very versatile choice and can be used for slotting, plunging, ramping and contouring
