Dormer S802HA1.0 5983331 Slot Drill N 6527 K 1.00 mm
MODEL 5983331
$39.07 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 6527 K
Coating
AlCrN
Coating property (CTP)
1

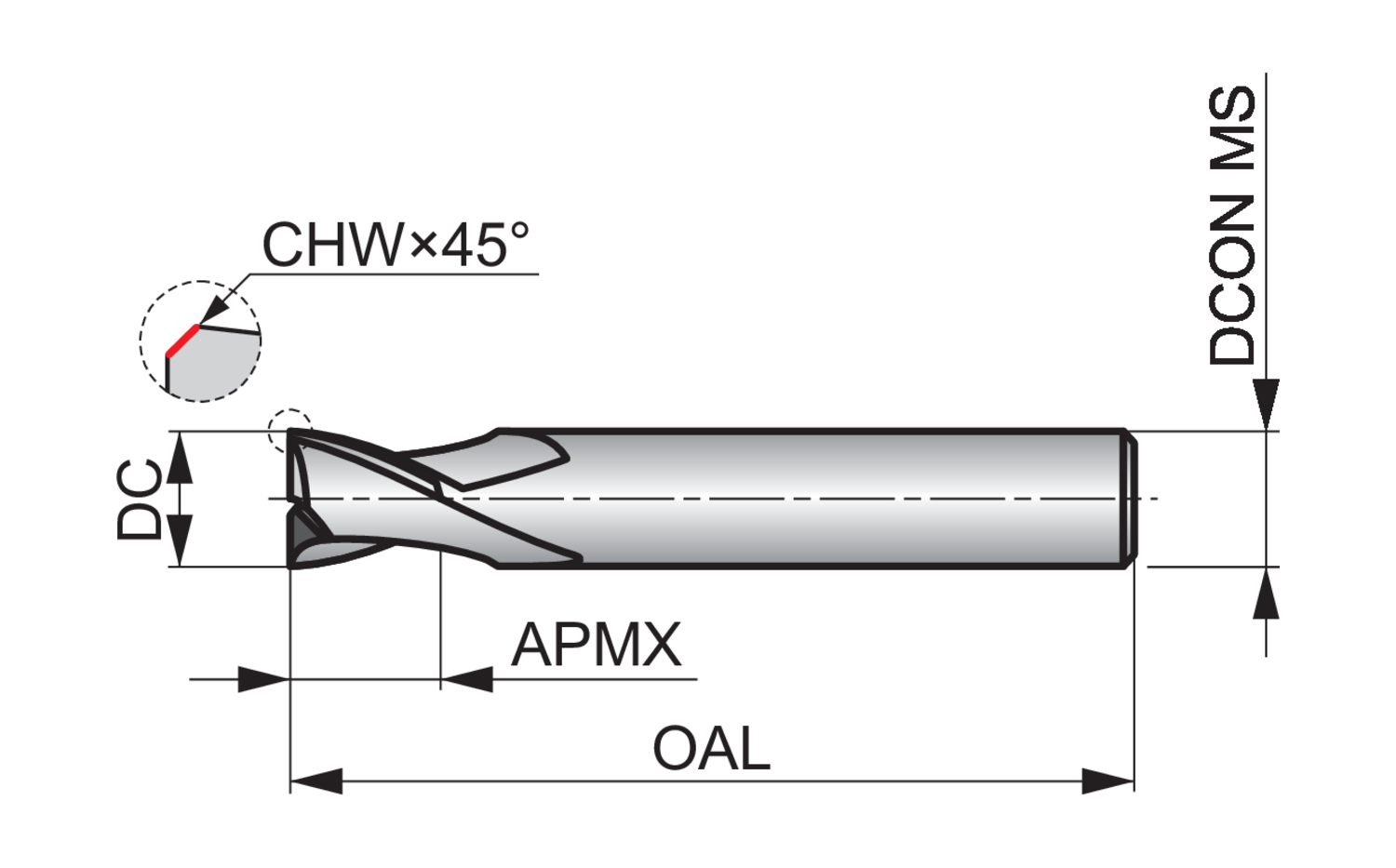

Connection diameter - inch (DCON MS)
0.1181
Connection diameter - millimeter (DCON MS)
3
Connection diameter tolerance machine side (TCDCONMS)
h6
Cut length
Extra short
Cutting diameter - inch (DC)
0.0394
Cutting diameter - millimeter (DC)
1
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.1181
Depth of cut maximum - millimeter (APMX)
3
EDP number
640364
Flute count (NOF)
2
Flute helix angle (FHA)
28
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
5983331
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S802HA1.0
Overall length - inch (OAL)
1.4961
Overall length - millimeter (OAL)
38
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
9
Shank
Cylindrical shank DIN 6535 HA
S802HA milling cutters from Dormer have a short length flute design, giving them high rigidity for milling shallow slots and the accurate diameter gives you a high degree of confidence for milling standard keyway slots to a P9 tolerance.
The tools are manufactured from premium carbide with an Alcrona coating which, together, ensure superior performance, particularly when milling difficult to machine materials, and also extend tool life.
S802HA 2-flute slot drills have a straight shank and are very versatile, being suitable for plunging, ramping and profile milling in steels, stainless steels, cast iron and non-ferrous materials
