Dormer S802HB16.0 5983372 Slot Drill N 6527 K 16.00 mm
MODEL 5983372
$184.49 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 6527 K
Coating
AlCrN
Coating property (CTP)
1

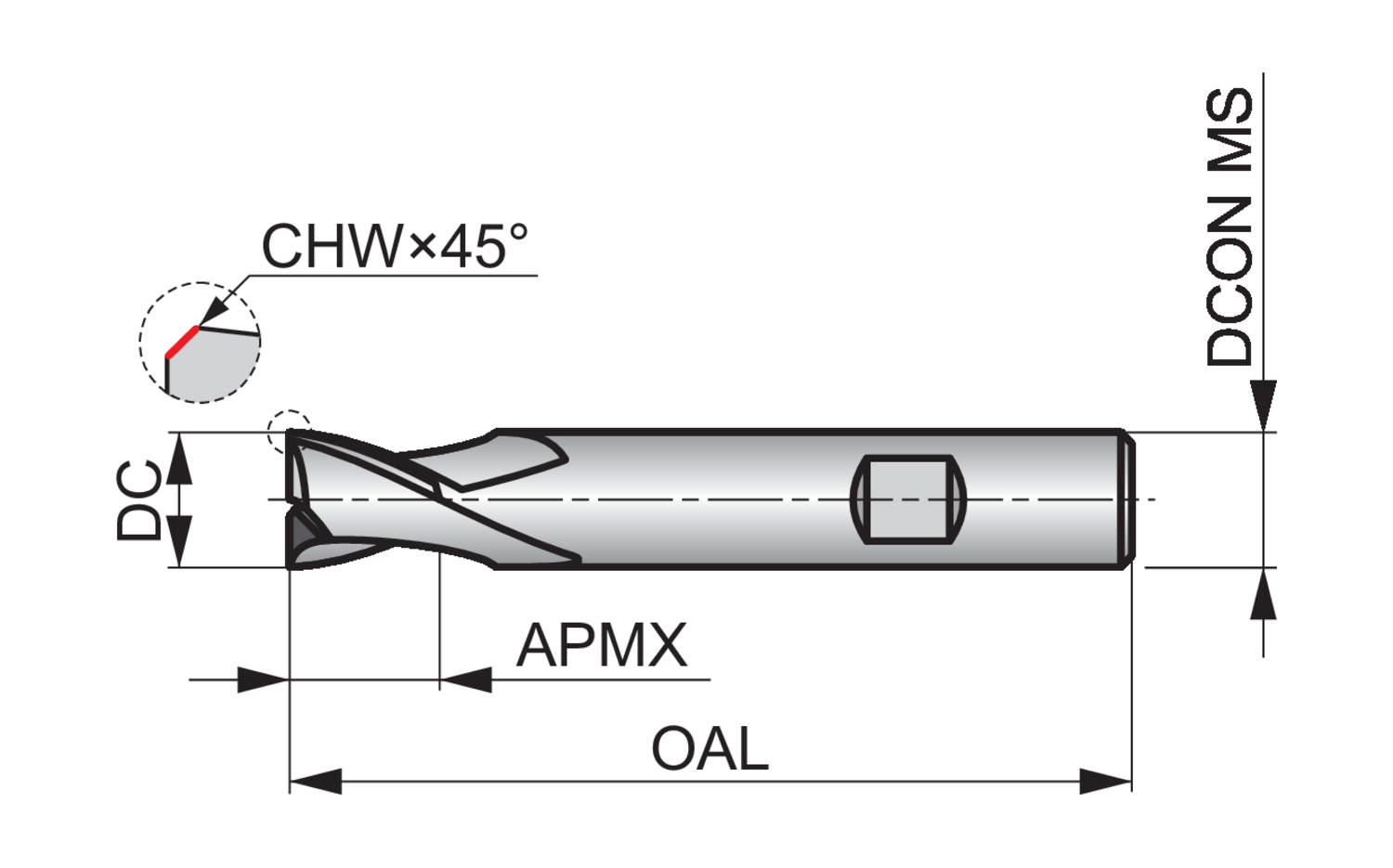

Connection diameter - inch (DCON MS)
0.6299
Connection diameter - millimeter (DCON MS)
16
Connection diameter tolerance machine side (TCDCONMS)
h6
Corner chamfer width - millimeter (CHW)
0.2
Cut length
Extra short
Cutting diameter - inch (DC)
0.6299
Cutting diameter - millimeter (DC)
16
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.6299
Depth of cut maximum - millimeter (APMX)
16
EDP number
640937
Flute count (NOF)
2
Flute helix angle (FHA)
28
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
5983372
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S802HB16.0
Overall length - inch (OAL)
3.2283
Overall length - millimeter (OAL)
82
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
9
Shank
Cylindrical shank DIN 6535 HB
Part of Dormer’s extensive carbide milling cutter range, S802HB 2-flute slot drills, with a DIN6535HB shank, have a very accurate diameter, suitable for milling standard keyway slots to a P9 tolerance, and a short length flute for rigidity when milling shallow slots.
They are very versatile and can be used for plunging, ramping and profile milling in a number of different materials, including steels, stainless steels, cast iron and non-ferrous materials.
S802HB 2-flute slot drills are manufactured from premium carbide and have a special Alcrona coating.
Together they will give you extended tool life and superior performance, particularly when milling materials which are difficult to machine
