Dormer S803HB18.0 5982532 Slot Drill N 6527 K 18.00 mm
MODEL 5982532
$243.84 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 6527 K
Coating
AlCrN
Coating property (CTP)
1

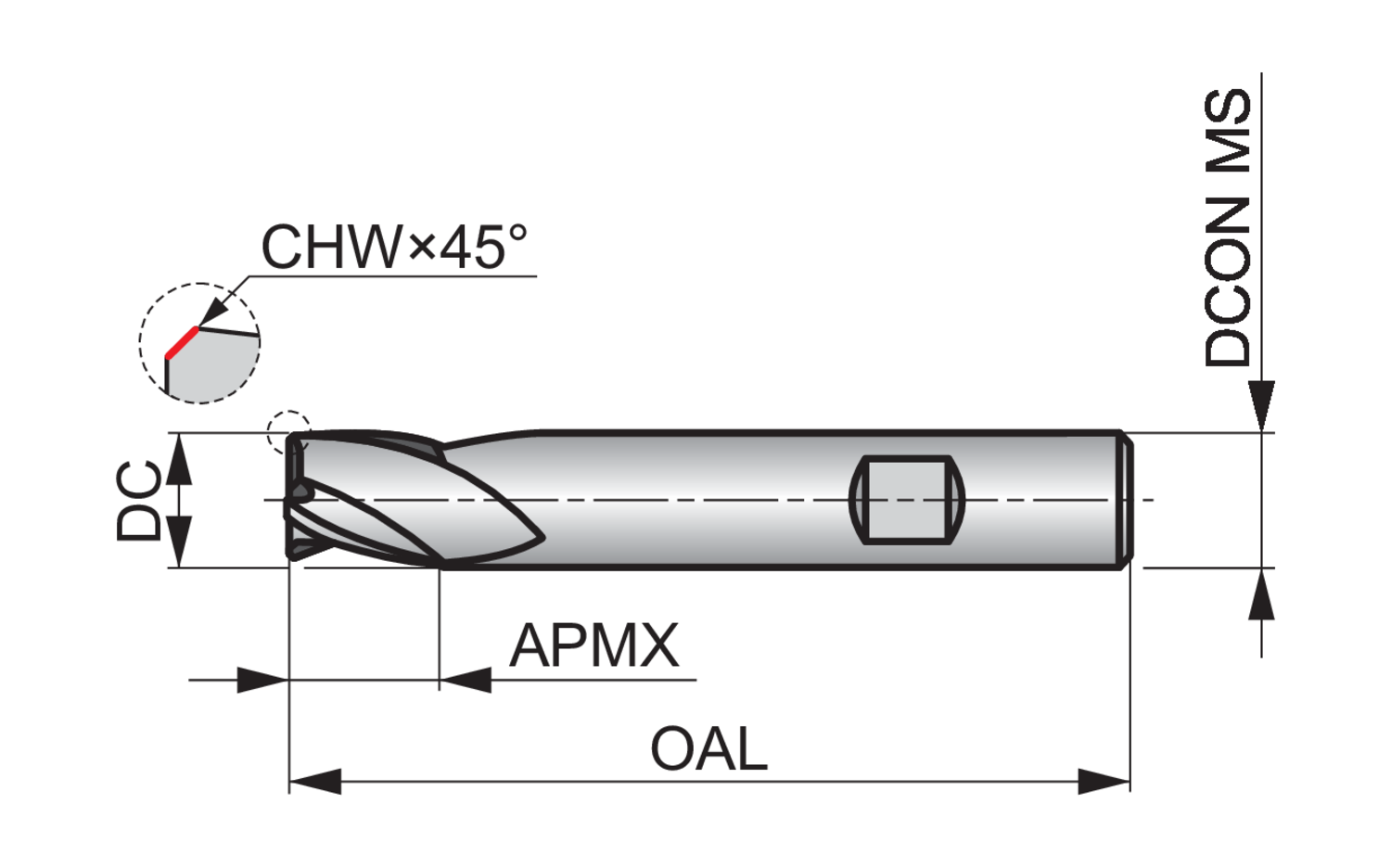

Connection diameter - inch (DCON MS)
0.7087
Connection diameter - millimeter (DCON MS)
18
Connection diameter tolerance machine side (TCDCONMS)
h6
Corner chamfer width - millimeter (CHW)
0.2
Cut length
Extra short
Cutting diameter - inch (DC)
0.7087
Cutting diameter - millimeter (DC)
18
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.7087
Depth of cut maximum - millimeter (APMX)
18
EDP number
641576
Flute count (NOF)
3
Flute helix angle (FHA)
28
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
5982532
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S803HB18.0
Overall length - inch (OAL)
3.3071
Overall length - millimeter (OAL)
84
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
9
Shank
Cylindrical shank DIN 6535 HB
Dormer’s S803HB 3-flute milling cutters have a special Alcrona top for improved performance when milling difficult to machine materials.
They have a short length flute for extra rigidity for milling shallow slots and, with an accurate diameter, are capable of milling standard keyway slots to P9 tolerance.
Manufactured from premium carbide, S803HB 2-flute cutters will give you great performance with longer tool life and are very versatile, being suitable for plunging ramping and profile milling in steels, stainless steels, non-ferrous materials and cast iron
