Dormer S812HA20.0 5983514 Slot Drill N 6527 L 20.00 mm
MODEL 5983514
$279.09 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 6527 L
Coating
AlCrN
Coating property (CTP)
1

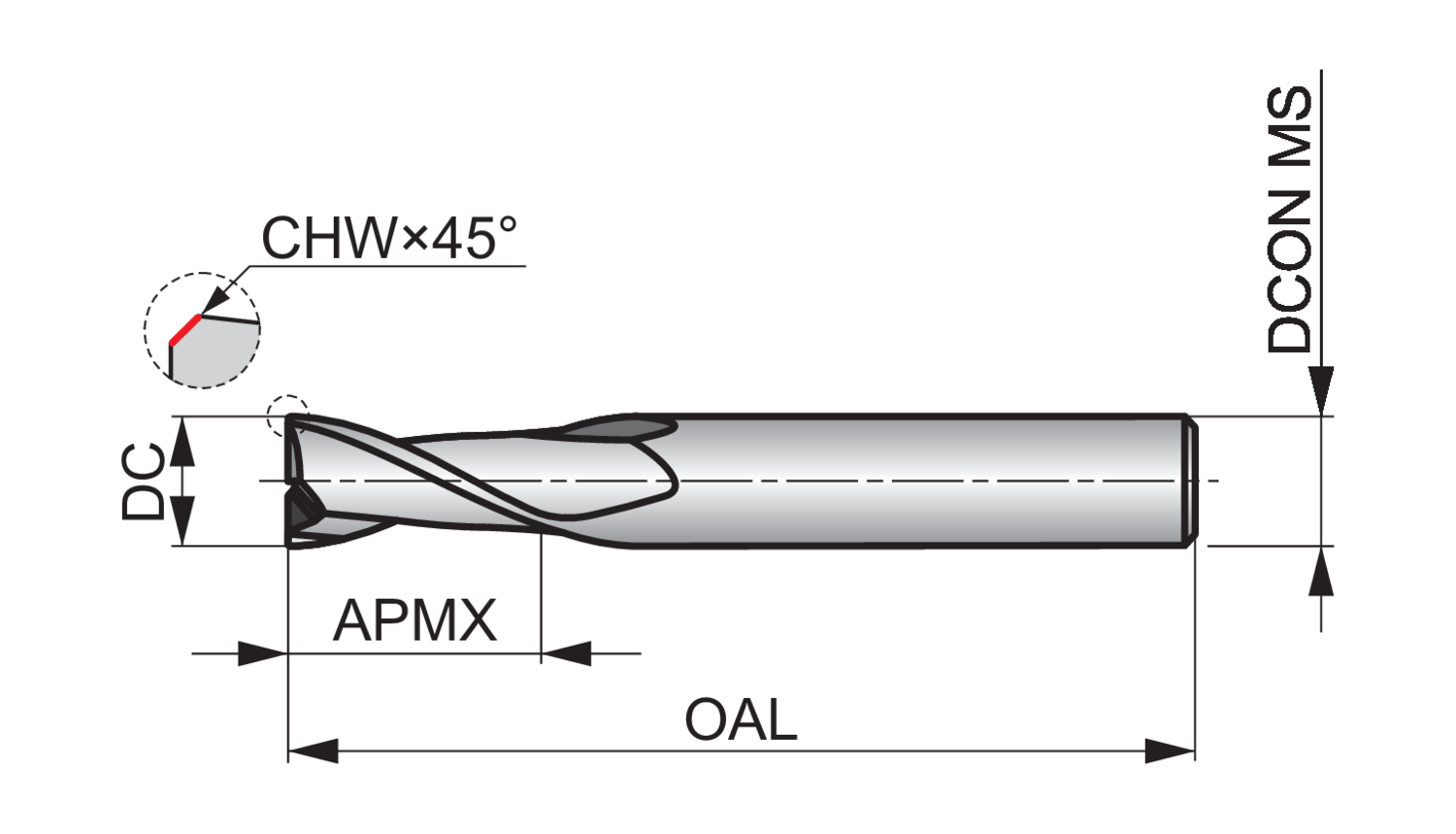

Connection diameter - inch (DCON MS)
0.7874
Connection diameter - millimeter (DCON MS)
20
Connection diameter tolerance machine side (TCDCONMS)
h6
Corner chamfer width - millimeter (CHW)
0.3
Cut length
Short
Cutting diameter - inch (DC)
0.7874
Cutting diameter - millimeter (DC)
20
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
1.2598
Depth of cut maximum - millimeter (APMX)
32
EDP number
641989
Flute count (NOF)
2
Flute helix angle (FHA)
28
Material
HM
MID number
5983514
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S812HA20.0
Overall length - inch (OAL)
4.0945
Overall length - millimeter (OAL)
104
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
9
Shank
Cylindrical shank DIN 6535 HA
S812HA 2-flute milling cutters are part of Dormer’s extensive range of carbide cutters, being manufactured from premium carbide with the superior performance and longer tool life that brings.
The special Alcrona coating further extends the tool life and is designed particularly for machining those difficult to machine materials.
The cutters are capable of machining stainless steels, steels, cast iron and non-ferrous materials, and can be used for plunging, ramping and profile milling.
S812HA 2-flute slot drills have a medium length flute for increased rigidity when milling standard slots, whilst the accurate diameter means they are capable of milling standard keyway slots to a P9 tolerance
