Dormer S812HB4.5 5983581 Slot Drill N 6527 L 4.50 mm
MODEL 5983581
$49.53 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 6527 L
Coating
AlCrN
Coating property (CTP)
1

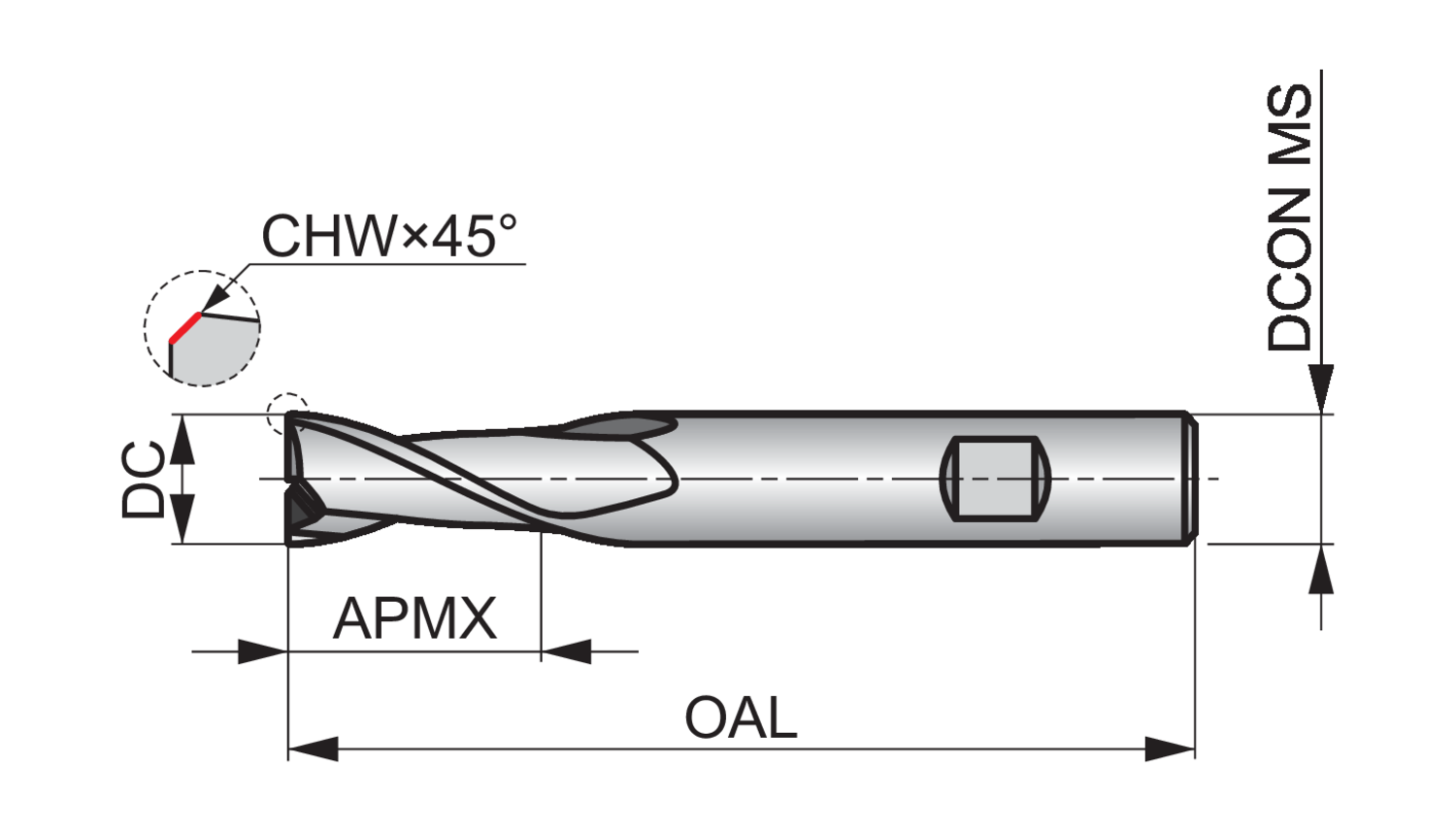

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Connection diameter tolerance machine side (TCDCONMS)
h6
Corner chamfer width - millimeter (CHW)
0.13
Cut length
Short
Cutting diameter - inch (DC)
0.1772
Cutting diameter - millimeter (DC)
4.5
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.315
Depth of cut maximum - millimeter (APMX)
8
EDP number
642047
Flute count (NOF)
2
Flute helix angle (FHA)
28
Material
HM
MID number
5983581
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S812HB4.5
Overall length - inch (OAL)
2.2441
Overall length - millimeter (OAL)
57
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
9
Shank
Cylindrical shank DIN 6535 HB
S812HB 2-flute milling cutters are manufactured from premium carbide for superior performance and extended tool life.
The high rigidity of the medium length flute means they are great for milling standard keyway slots and are capable of achieving P9 tolerance, thanks to the accurate diameter.
The special Alcrona coating makes the tools perfect for milling materials which are difficult to machine and further improves the tool life.
The versatility of S812HB 2-flute slot drills means they can be used for plunging, ramping and profile milling, and are suitable for milling steels, cast iron, non-ferrous materials and stainless steels
