Dormer S813HB20.0 5983533 Slot Drill N 6527 L 20.00 mm
MODEL 5983533
$297.89 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 6527 L
Coating
AlCrN
Coating property (CTP)
1

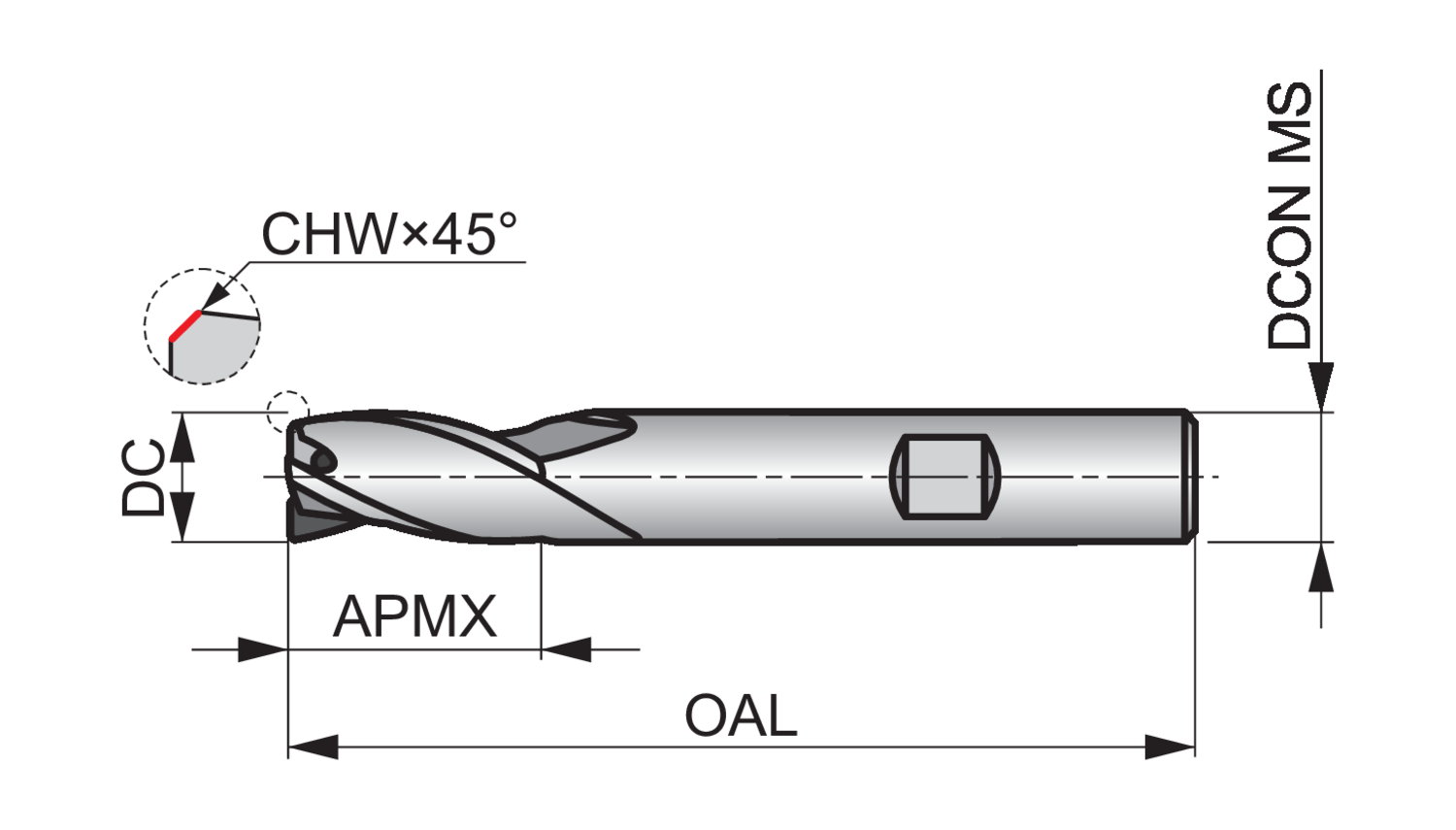

Connection diameter - inch (DCON MS)
0.7874
Connection diameter - millimeter (DCON MS)
20
Connection diameter tolerance machine side (TCDCONMS)
h6
Corner chamfer width - millimeter (CHW)
0.3
Cut length
Short
Cutting diameter - inch (DC)
0.7874
Cutting diameter - millimeter (DC)
20
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
1.2598
Depth of cut maximum - millimeter (APMX)
32
EDP number
642498
Flute count (NOF)
3
Flute helix angle (FHA)
28
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
5983533
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S813HB20.0
Overall length - inch (OAL)
4.0945
Overall length - millimeter (OAL)
104
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
9
Shank
Cylindrical shank DIN 6535 HB
S813HB 3-flute slot drills are manufactured from premium carbide and have a special Alcrona coating, Together, these two features will give you greatly extended tool life and superior performance, especially when milling materials which are difficult to machine.
The medium length flute design and accurate diameter mean you get good rigidity for milling standard slots and can mill standard keyway slots to P9 tolerance.
S813HB 3-flute slot drills are very versatile being suitable for machine steels, cast iron, stainless steelss and non-ferrous material, and can be used for plunging, ramping and profile milling
