Dormer S814HB16.0 5983609 End Mill N 6527 L 16.00 mm
MODEL 5983609
$213.28 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 6527 L
Coating
AlCrN
Coating property (CTP)
1

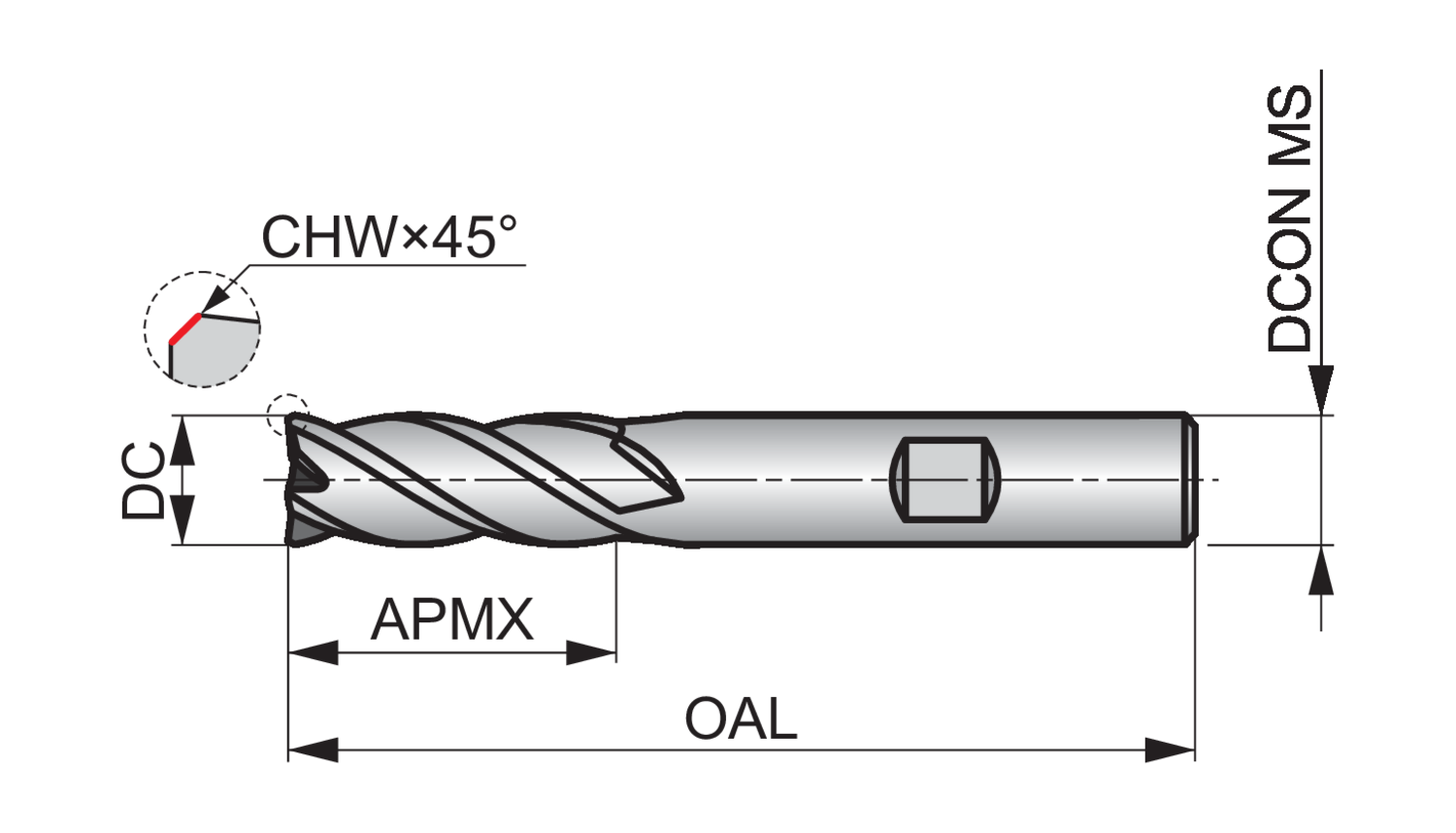

Connection diameter - inch (DCON MS)
0.6299
Connection diameter - millimeter (DCON MS)
16
Corner chamfer width - millimeter (CHW)
0.2
Cut length
Short
Cutting diameter - inch (DC)
0.6299
Cutting diameter - millimeter (DC)
16
Cutting diameter tolerance class (TCDC)
h10
Depth of cut maximum - inch (APMX)
1.2598
Depth of cut maximum - millimeter (APMX)
32
EDP number
642696
Flute count (NOF)
4
Flute helix angle (FHA)
34
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
5983609
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S814HB16.0
Overall length - inch (OAL)
3.622
Overall length - millimeter (OAL)
92
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
9
Shank
Cylindrical shank DIN 6535 HB
One of Dormer’s extensive range of carbide milling cutters, S814HB 4-flute cutters can be used for both slotting and profile milling, whilst the high rigidity from the medium length flute design makes the tools suitable for general purpose profile milling applications.
The special Alcrona coating coupled with the premium carbide material used in manufacture will give superior performance, especially when milling difficult to machine materials and also greatly improve tool life.
S814HB 4-flute end mills are suitable for plunging, ramping and profile milling in a wide variety of materials including stainless steels, cast iron, non-ferrous materials and steels
