Dormer S90320.0 5983091 End Mill 20.00 mm
MODEL 5983091
$196.59 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

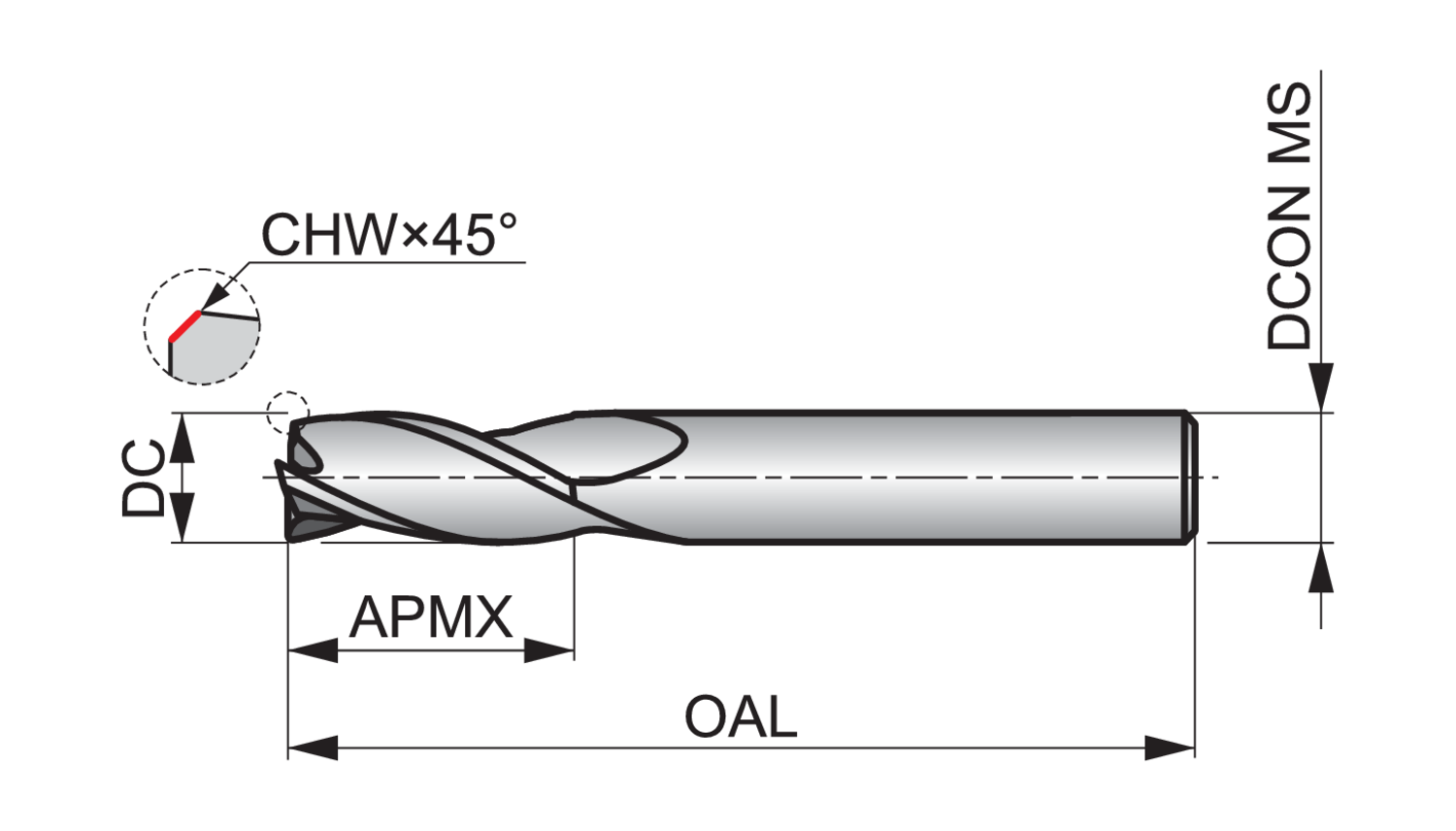

Connection diameter - inch (DCON MS)
0.7874
Connection diameter - millimeter (DCON MS)
20
Corner chamfer width - millimeter (CHW)
0.3
Cut length
Medium
Cutting diameter - inch (DC)
0.7874
Cutting diameter - millimeter (DC)
20
Cutting diameter tolerance class (TCDC)
h10
Depth of cut maximum - inch (APMX)
1.4961
Depth of cut maximum - millimeter (APMX)
38
EDP number
133002
Flute count (NOF)
3
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
5983091
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S90320.0
Overall length - inch (OAL)
4.0945
Overall length - millimeter (OAL)
104
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
12
Shank
Cylindrical shank DIN 6535 HA
S903 3-flute slot drills are manufactured from premium carbide material for superior performance and extended tool life.
They have a medium length flute design which makes the tool more rigid and suitable for profiling and milling standard slots.
The bright finish ensures a cleaner, more accurate result by stopping workpiece material from sticking to the cutting edges of the tool.
Suitable for milling steels, cast iron and stainless steels, the tools can be used for plunging, ramping and profile milling.
S903 3-flute slot drills are an economical range of cutters and a smart choice for general milling of slots on most types of machine
