Dormer D745100.0X1.0 5985266 Metal slitting saw Coarse DIN 1838 100.00 mm x 1.0 mm
MODEL 5985266
This product has a minimum order quantity of (5 minimum) This is the minimum order quantity available when purchasing this product.
$49.01 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(5 minimum)
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
DIN 1838
Coating
Bright

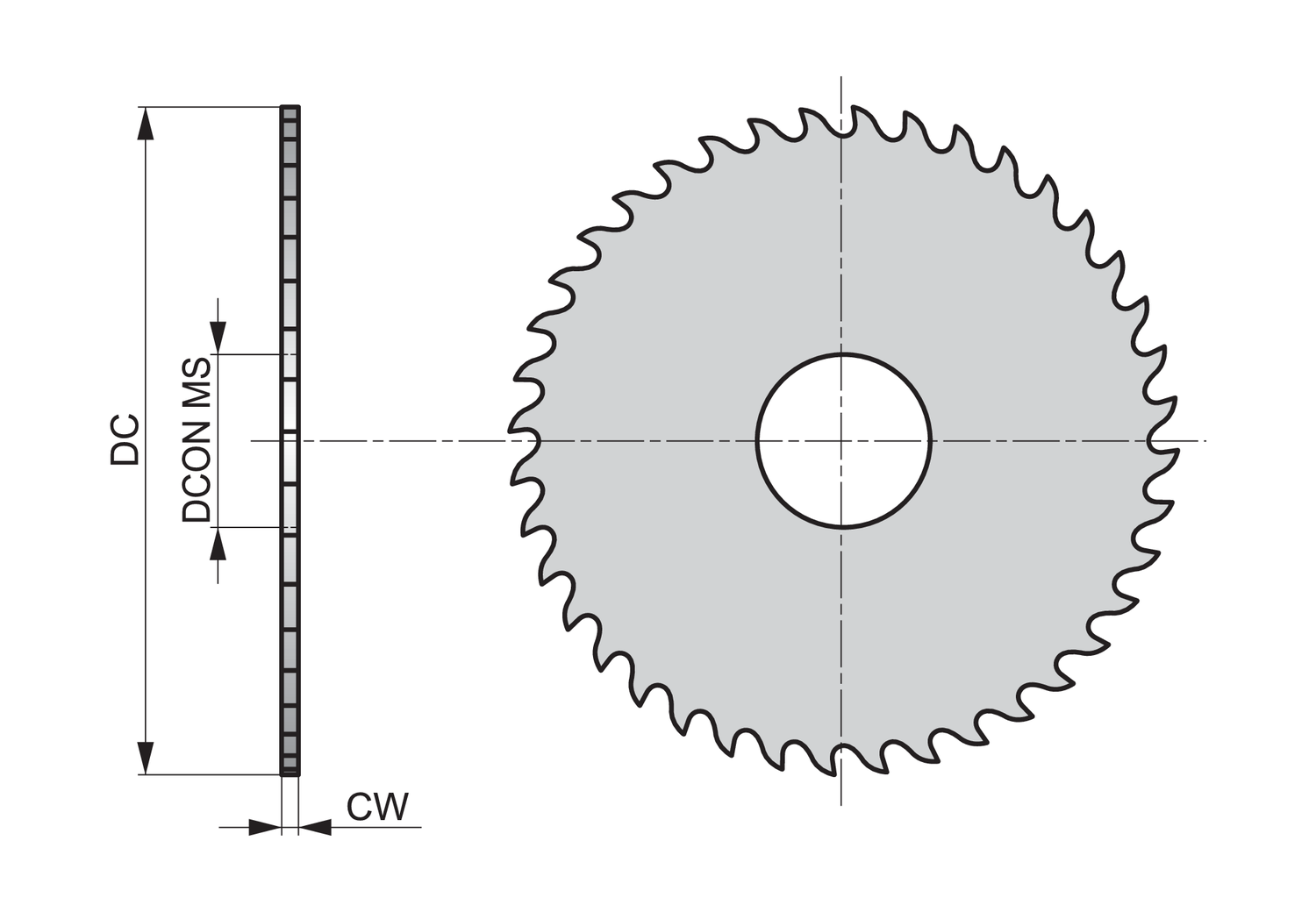

Connection diameter - inch (DCON MS)
0.8661
Connection diameter - millimeter (DCON MS)
22
Cutting diameter - inch (DC)
3.937
Cutting diameter - millimeter (DC)
100
Cutting width - inch (CW)
0.0394
Cutting width - millimeter (CW)
1
EDP number
283929
Flute count (NOF)
64
Material
HSS
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5985266
Mill Profile
Coarse
Ordering code ANSI
D745100.0X1.0
Peripheral effective cutting edge count (ZEFP)
64
Radial rake angle (GAMF)
15
D745 bore cutters are coarse pitch slitting saws.
They come with a bright finish which prevents workpiece material from sticking to the cutting edges of the tool so you get clean and accurate results.
Manufactured from High speed steel for great tool strength, wear resistance and performance, they can be used for horizontal milling of slots in steels, aluminium, stainless steels and cast iron.
D745 slitting saws have a coarse pitch design – ideal for narrow, deep slots, whilst the dish ground, neutral tooth geometry helps control chips and prevents rubbing when milling deep slots
