Dormer D74740.0X.3 5985741 Metal slitting saw Fine DIN 1837 40.00 mm x 0.3 mm
MODEL 5985741
This product has a minimum order quantity of (5 minimum) This is the minimum order quantity available when purchasing this product.
$25.96 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(5 minimum)
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
DIN 1837
Coating
Bright

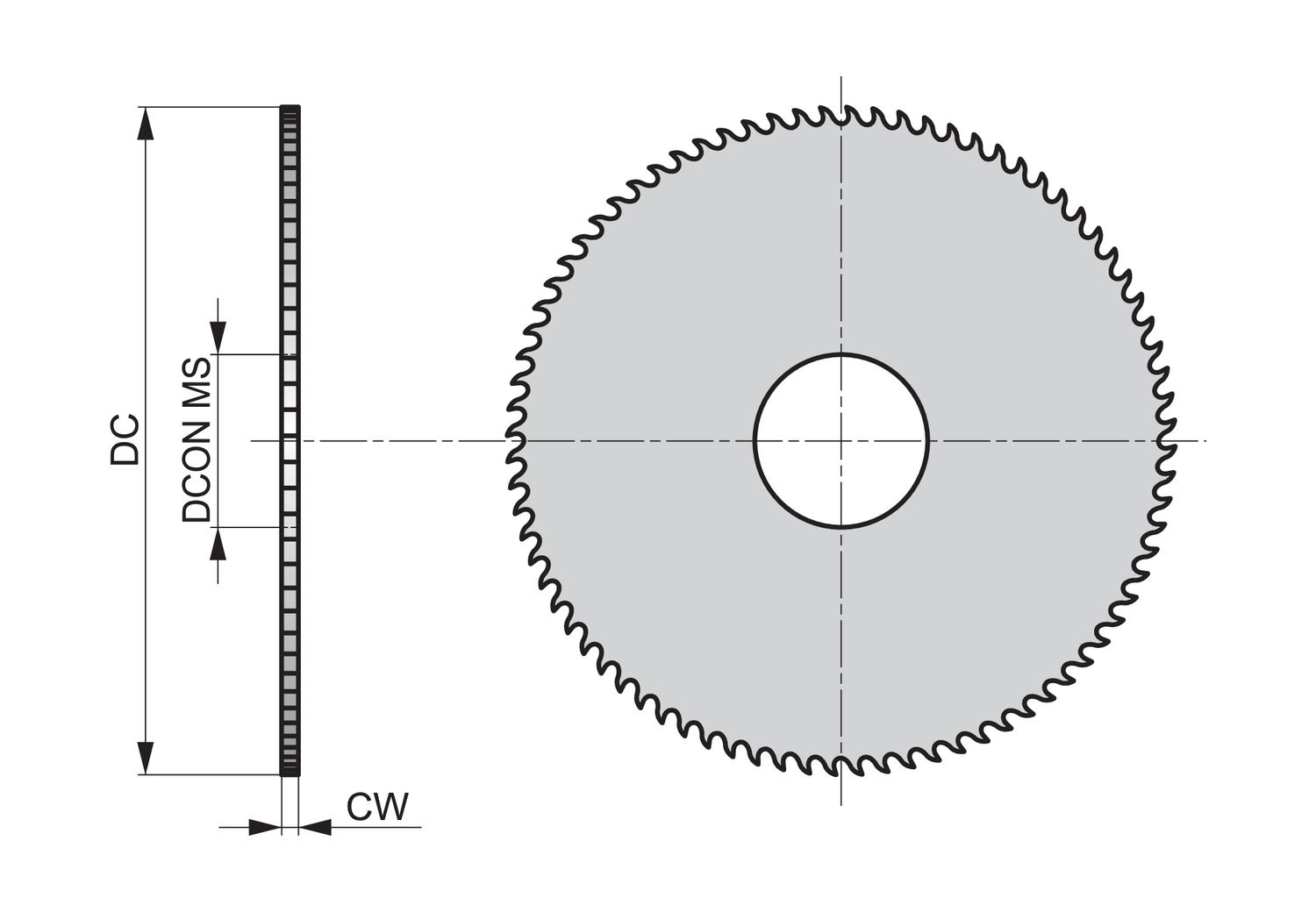

Connection diameter - inch (DCON MS)
0.3937
Connection diameter - millimeter (DCON MS)
10
Cutting diameter - inch (DC)
1.5748
Cutting diameter - millimeter (DC)
40
Cutting width - inch (CW)
0.0118
Cutting width - millimeter (CW)
0.3
EDP number
284537
Flute count (NOF)
100
Material
HSS
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5985741
Mill Profile
Fine
Ordering code ANSI
D74740.0X.3
Peripheral effective cutting edge count (ZEFP)
100
Radial rake angle (GAMF)
5
D747 fine pitch slitting saws come with a neutral tooth geometry to help control chips and prevent rubbing when milling deep slots.
They are manufactured from High Speed steel which gives great tool strength and also improves wear resistance and performance, whilst the bright finish ensures a clean and accurate finish by preventing workpiece material from sticking to the cutting edges of the tool.
The fine pitch design of D747 slitting saws makes them ideal for narrow, deep slots, and can be used for horizontal milling slots in aluminium, steels, stainless steels and cast iron
