Dormer E0713/8NO6 5974094 Hand Tap Straight Flute UNF 4FL 3/8 inch x 24
MODEL 5974094
$24.03 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
ANSI

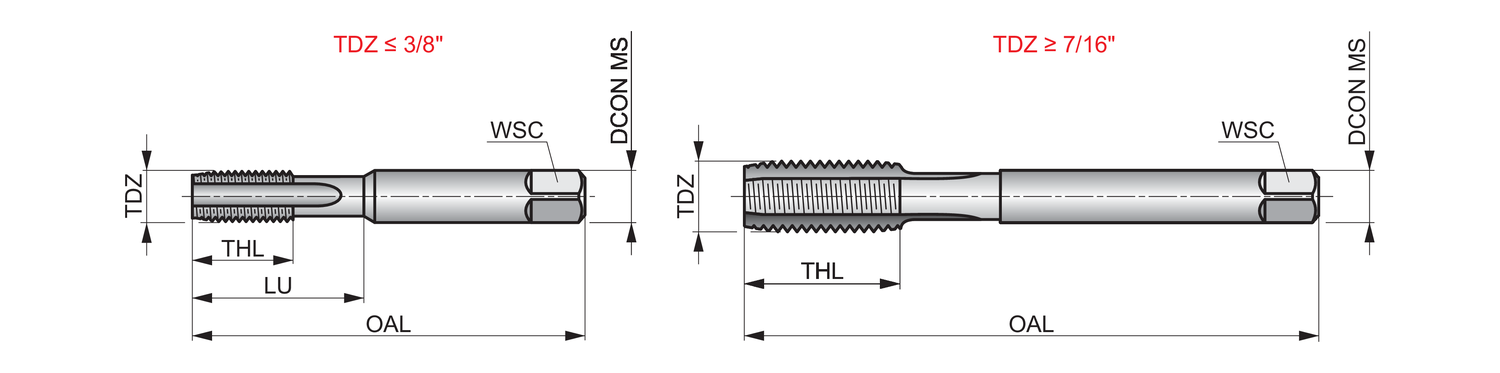

Clamping width - fractional inch (WSC)
0.381
Clamping width - inch
0.286
Coating
Bright
Coating property (CTP)
4
Connection diameter - inch (DCON MS)
2.15/16
Connection diameter - millimeter (DCON MS)
9.68
EDP number
349694
Flute count (NOF)
8.5
Flute Geometry (FDC)
Straight Flute Geometry
Hand (Cutting direction)
Right
Material
HSS
Material application
N - Non-ferrous metals, P - Steel and cast steel
MID number
5974094
Ordering code ANSI
E0713/8NO6
Overall length - fractional inch (OAL)
2.15/16
Overall length - inch (OAL)
2.9375
Overall length - millimeter (OAL)
74.61
Premachined hole diameter - inch (PHD)
0.3346
Premachined hole diameter - millimeter (PHD)
Q
Shank
Cylindrical shank with Square
Thread diameter size (TDZ)
3/8
Thread form (THFT)
UNF - Unified Fine
Threading length - inch (THL)
0.81
Threads per inch (TPI)
24
Tolerance limit
H3
Usable length (ULDR)
1.5
Usable Length - inch (LU)
1.378
Set of straight flute hand taps NO6 for Unified National Fine thread UNF 3/8" with 24 TPI and 3B class of fit with H3 pitch diameter limits, consisting of 1 tap with a 6-8xP taper lead, 1 tap with a 4-6xP plug lead and 1 tap with a 2-3xP semi-bottoming lead, dimensions according to ANSI standard with 0.3810" shank and 0.2860" square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys.
