Image for Illustration purposes only. Actual product may vary
Dormer EP01M10DIN376 5973455 Machine Tap Spiral Point 3FL M10 x 1.50 mm
MODEL 5973455
$32.33 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 376

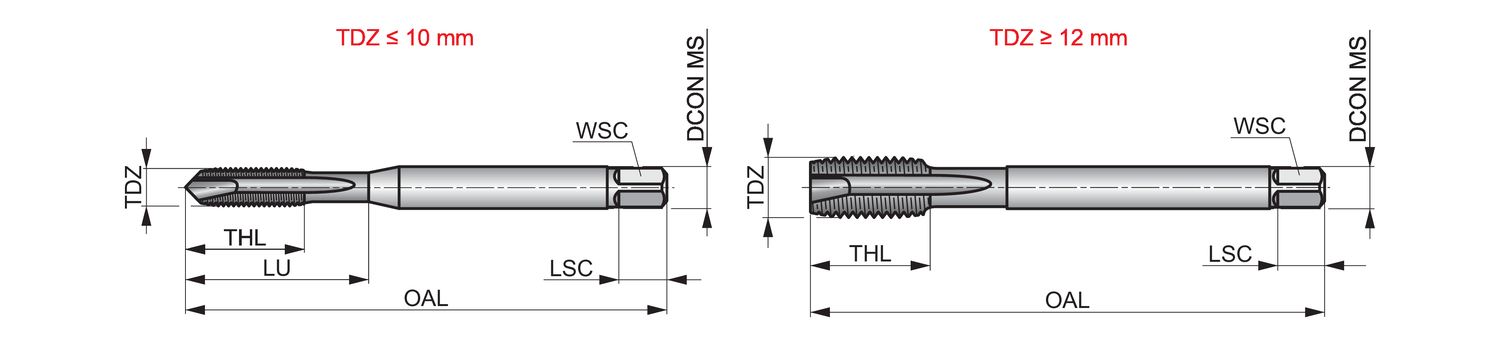

Clamping Length - millimeter (LSC)
8
Clamping width - fractional inch (WSC)
5.5
Clamping width - inch
0.2165
Coating
Steam Tempered
Connection diameter - inch (DCON MS)
7
EDP number
136256
Flute count (NOF)
3
Flute Geometry (FDC)
Spiral Point Geometry
Hand (Cutting direction)
Right
Material
HSS-E-PM
Material application
P - Steel and cast steel
MID number
5973455
Ordering code ANSI
EP01M10DIN376
Overall length - inch (OAL)
3.937
Overall length - millimeter (OAL)
100
Premachined hole diameter - inch (PHD)
0.3346
Premachined hole diameter - millimeter (PHD)
8.5
Shank
Cylindrical shank with Square
Tap chamfer style (TCS)
B 3.5 - 5
Thread diameter size (TDZ)
10
Thread form (THFT)
M - Metric coarse
Thread pitch - inch (TP)
0.0591
Thread pitch - millimeter (TP)
1.5
Threading length - inch (THL)
0.7874
Threading length - millimeter (THL)
20
Tolerance limit
D6
Usable length (ULDR)
2.5
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 7.0mm shank and 5.5mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications.
