Image for Illustration purposes only. Actual product may vary
Dormer F1505/16 5977889 BSF Gun Nosed Die ISO 2568 5/16 inch x 22
MODEL 5977889
$61.40 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
ISO 2568

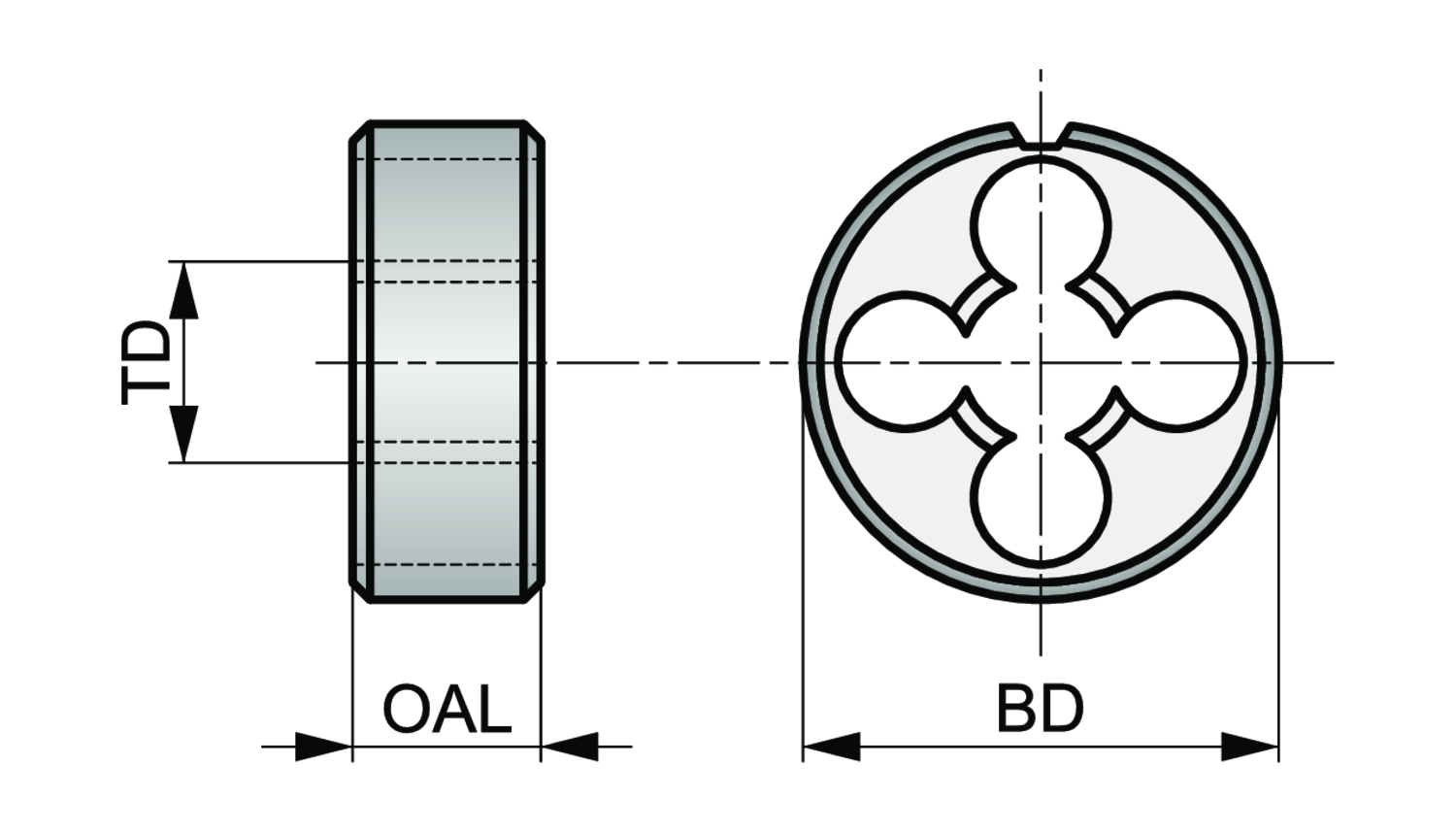

Body diameter - inch (BD)
0.9843
Body diameter - millimeter (BD)
25
Coating
Bright
Die chamfer to pitch ratio (DCPR)
1.75
EDP number
104774
Hand (Cutting direction)
Right
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
Material code (BMC)
HSS
MID number
5977889
Ordering code ANSI
F1505/16
Overall length - inch (OAL)
0.3543
Overall length - millimeter (OAL)
9
Thread diameter - millimeter (TD)
7.94
Thread diameter size (TDZ)
5/16
Thread form (THFT)
BSF - British standard fine
Threads per inch (TPI)
22
Solid round die with a gun nose, for British Standard Fine thread BSF 5/16" with 22 TPI and medium class of fit, dimensions according to ISO 2568 standard with 25mm outside diameter and 9mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
