Dormer J2208.0X1.0 6821325 MF Thread Mill Spiral Flute 10° M10 x 1.00 mm
MODEL 6821325
$219.01 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Alcrona Pro
Coating property (CTP)
1

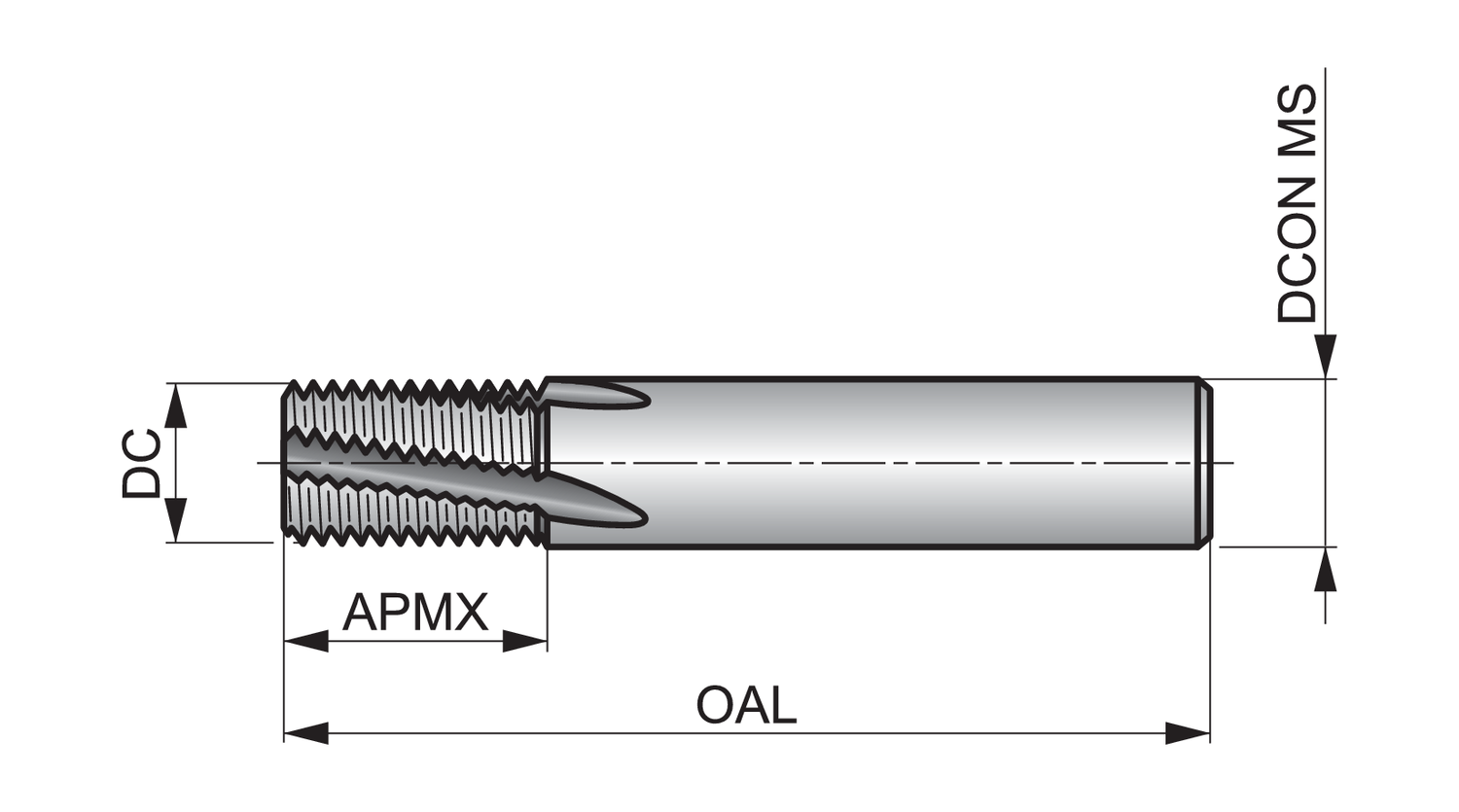

Connection diameter - inch (DCON MS)
0.315
Connection diameter - millimeter (DCON MS)
8
Cutting diameter - inch (DC)
0.315
Cutting diameter - millimeter (DC)
8
Depth of cut maximum - millimeter (APMX)
16
EDP number
46821325
Flute count (NOF)
4
Flute Geometry (FDC)
Spiral Flute Geometry
Flute helix angle (FHA)
10
Hand (Cutting direction)
Right
Material
HM
MID number
6821325
Ordering code ANSI
J2208.0X1.0
Overall length - inch (OAL)
2.4803
Overall length - millimeter (OAL)
63
Shank
Cylindrical shank DIN 6535 HA
Thread diameter size (TDZ)
M10
Thread form (THFT)
MF - Metric fine
Thread pitch - millimeter (TP)
1
Usable length (ULDR)
1.5
Thread milling cutter, for ISO-Metric Fine thread ≥ M10 with 1.00 mm pitch, dimensions according to DORMER standard with 4 flutes, 8mm cutting diameter and 8mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 16mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron.
