Dormer J2607.9-27 6821349 NPT Thread Mill Spiral Flute 10° 1/8 inch x 27
MODEL 6821349
$219.01 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Alcrona Pro
Coating property (CTP)
1

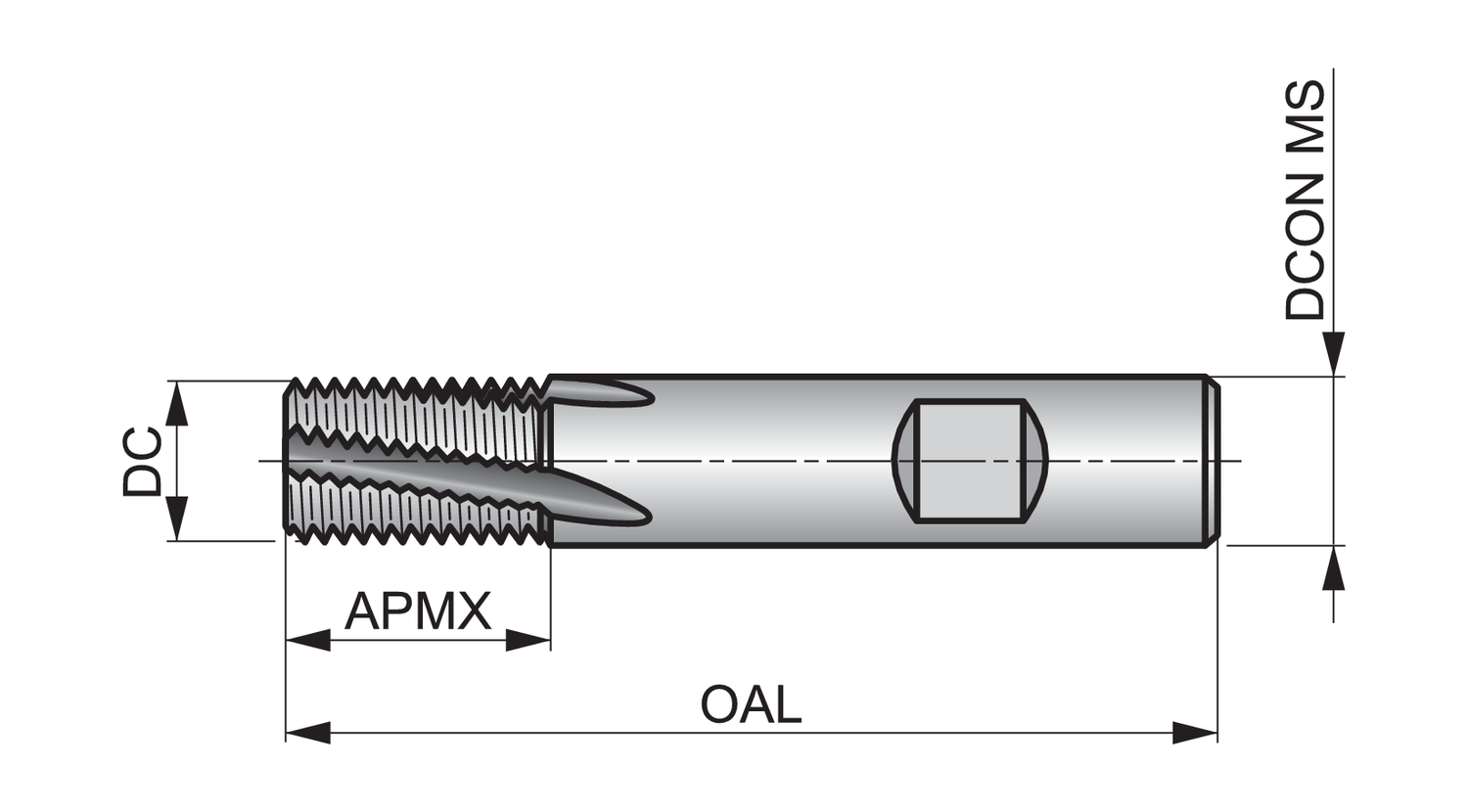

Connection diameter - inch (DCON MS)
0.315
Connection diameter - millimeter (DCON MS)
8
Cutting diameter - inch (DC)
0.311
Cutting diameter - millimeter (DC)
7.9
Depth of cut maximum - inch (APMX)
0.4528
Depth of cut maximum - millimeter (APMX)
11.5
EDP number
46821349
Flute count (NOF)
3
Flute Geometry (FDC)
Spiral Flute Geometry
Flute helix angle (FHA)
10
Hand (Cutting direction)
Right
Material
HM
MID number
6821349
Ordering code ANSI
J2607.9-27
Overall length - inch (OAL)
2.2835
Overall length - millimeter (OAL)
58
Shank
Cylindrical shank DIN 6535 HB
Thread diameter size (TDZ)
1/8
Thread form (THFT)
NPT - National taper pipe
Threads per inch (TPI)
27
Thread milling cutter, for National Pipe Taper thread ≥ NPT 1/8" with 27 TPI, dimensions according to DORMER standard with 3 flutes, 7.9mm cutting diameter and 8mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 11.5mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron.
