Dormer J28025.0-11 6821355 G(BSP) Thread Mill Spiral Flute 10° 1 INCH . 3 INCH X 11
MODEL 6821355
$733.12 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Alcrona Pro
Coating property (CTP)
1

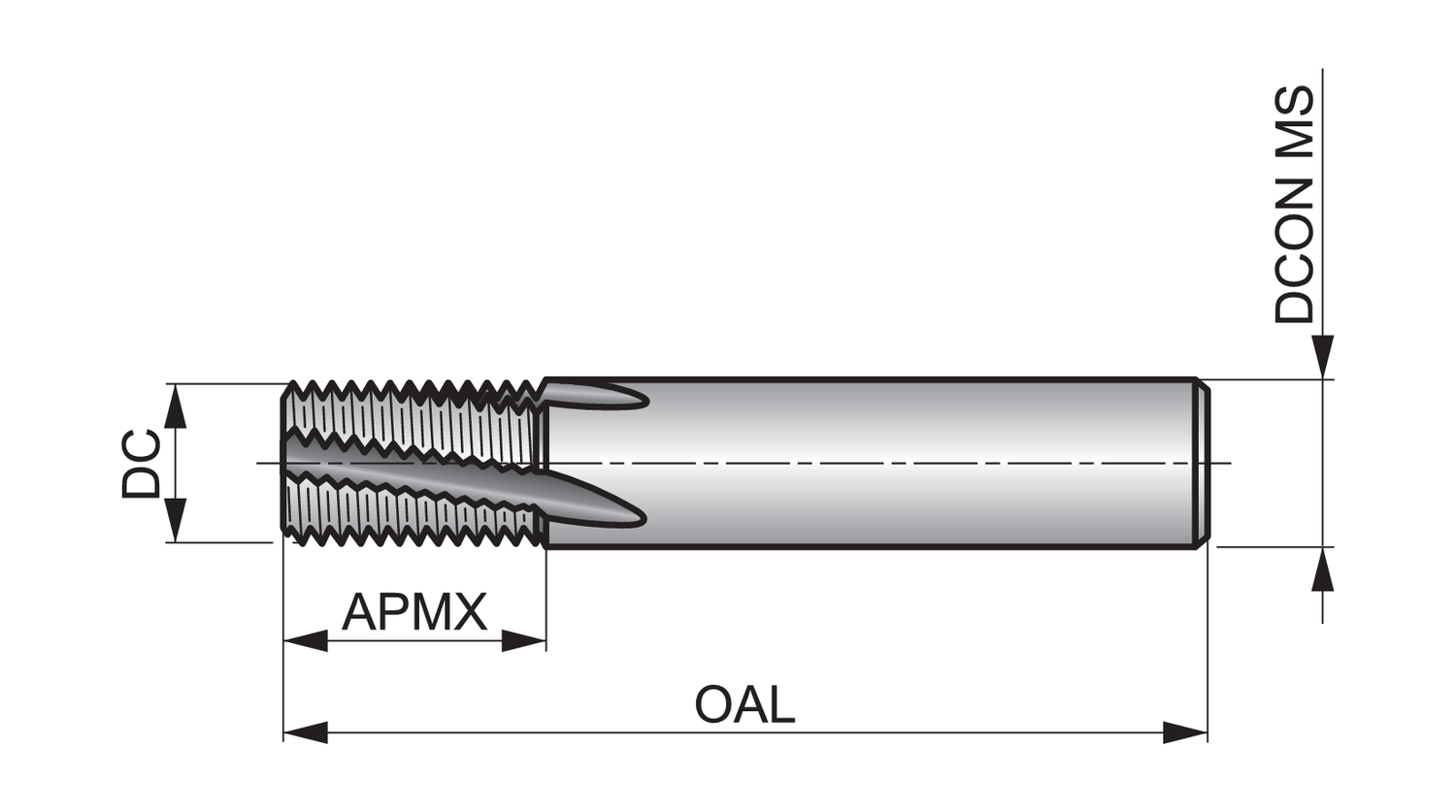

Connection diameter - inch (DCON MS)
0.9843
Connection diameter - millimeter (DCON MS)
25
Cutting diameter - inch (DC)
0.9843
Cutting diameter - millimeter (DC)
25
Depth of cut maximum - inch (APMX)
1.7717
Depth of cut maximum - millimeter (APMX)
45
EDP number
46821355
Flute count (NOF)
6
Flute Geometry (FDC)
Spiral Flute Geometry
Flute helix angle (FHA)
10
Hand (Cutting direction)
Right
Material
HM
MID number
6821355
Ordering code ANSI
J28025.0-11
Overall length - inch (OAL)
4.7638
Overall length - millimeter (OAL)
121
Shank
Cylindrical shank DIN 6535 HA
Thread diameter size (TDZ)
1'', 3''
Thread form (THFT)
G - British standard pipe fastening - G series
Threads per inch (TPI)
11
Usable length (ULDR)
1.5
Thread milling cutter, for British Standard Pipe thread ≥ G 1'' with 11 TPI, dimensions according to DORMER standard with 6 flutes, 25mm cutting diameter and 25mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 45mm long right or left hand internal and external thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron.
