Dormer B40016.0 5987094 Machine Reamer Extremely Unequal Spacing 8FL 16.00 mm
MODEL 5987094
$329.88 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningAchievable hole tolerance (TCHA)
H7
Basic Standard
DIN 8093

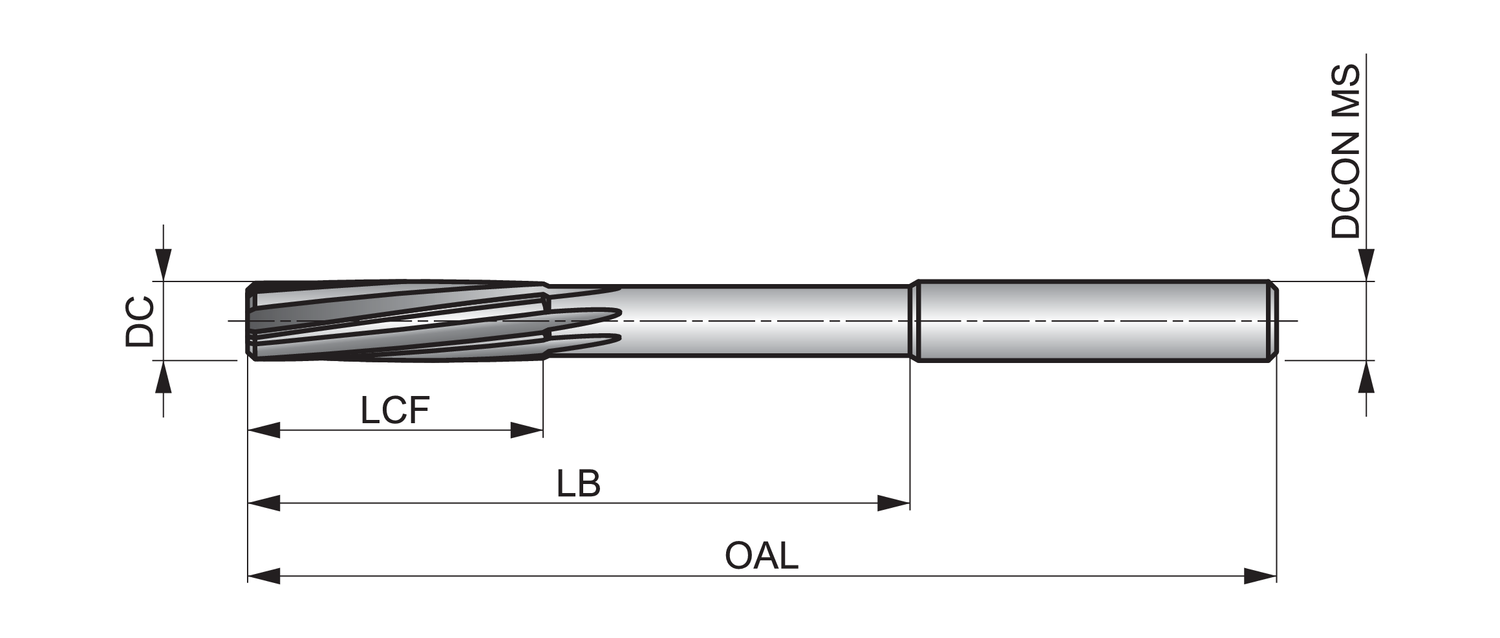

Body length - millimeter (LB)
125
Coating
Bright
Connection diameter - inch (DCON MS)
0.4921
Connection diameter - millimeter (DCON MS)
12.5
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - inch (DC)
0.6299
Cutting diameter - millimeter (DC)
16
EDP number
144305
Flute count (NOF)
6
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
52
Material
HM
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5987094
Ordering code ANSI
B40016.0
Overall length - inch (OAL)
6.6929
Overall length - millimeter (OAL)
170
Shank
Cylindrical shank
Machine reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 16.00mm with an overall length of 170mm, a flute length of 52mm and 125mm reach with neck relief, according to DIN 8093 standard for reaming precise holes within H7 tolerance, solid carbide with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys.
