Dormer B44111.0 5987164 Machine Reamer Extremely Unequal Spacing A DIN 8050 6FL 11.00 mm
MODEL 5987164
$193.69 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningAchievable hole tolerance (TCHA)
H7
Basic Standard
DIN 8050

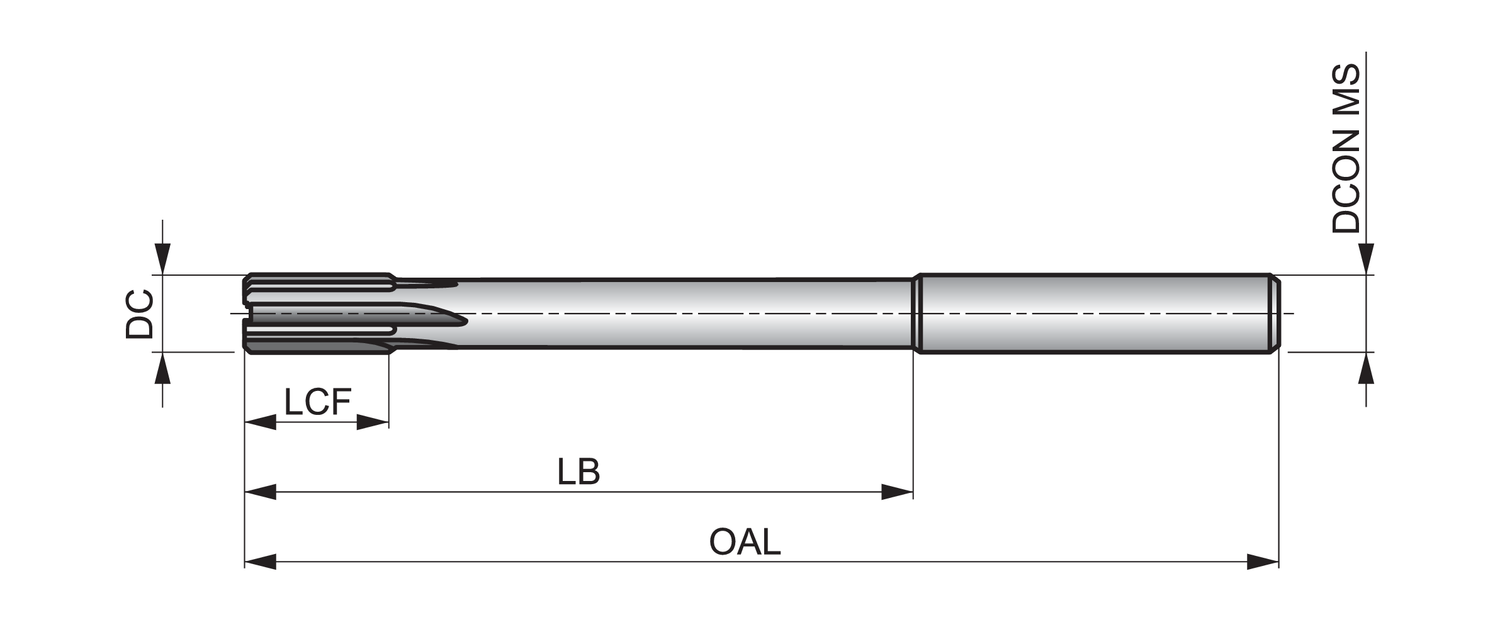

Body length - millimeter (LB)
96
Coating
Bright
Connection diameter - inch (DCON MS)
0.3937
Connection diameter - millimeter (DCON MS)
10
Connection diameter tolerance machine side (TCDCONMS)
h9
Cutting diameter - inch (DC)
0.4331
Cutting diameter - millimeter (DC)
11
EDP number
421093
Flute count (NOF)
6
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
19
Material
HM
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5987164
Ordering code ANSI
B44111.0
Overall length - inch (OAL)
5.5906
Overall length - millimeter (OAL)
142
Shank
Cylindrical shank
Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 11.00mm with an overall length of 142mm, a flute length of 19mm and 96mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys.
