Image for Illustration purposes only. Actual product may vary
Dormer P5053.0X3.0 7806101 Rotary Burr - Ball Nosed Cylinder
MODEL 7806101
$9.91 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Burr Shape
C - Ball Nosed Cylinder Shape
Burr Type Code (BTC)
Superalloy Cut Geometry
Coating
Bright

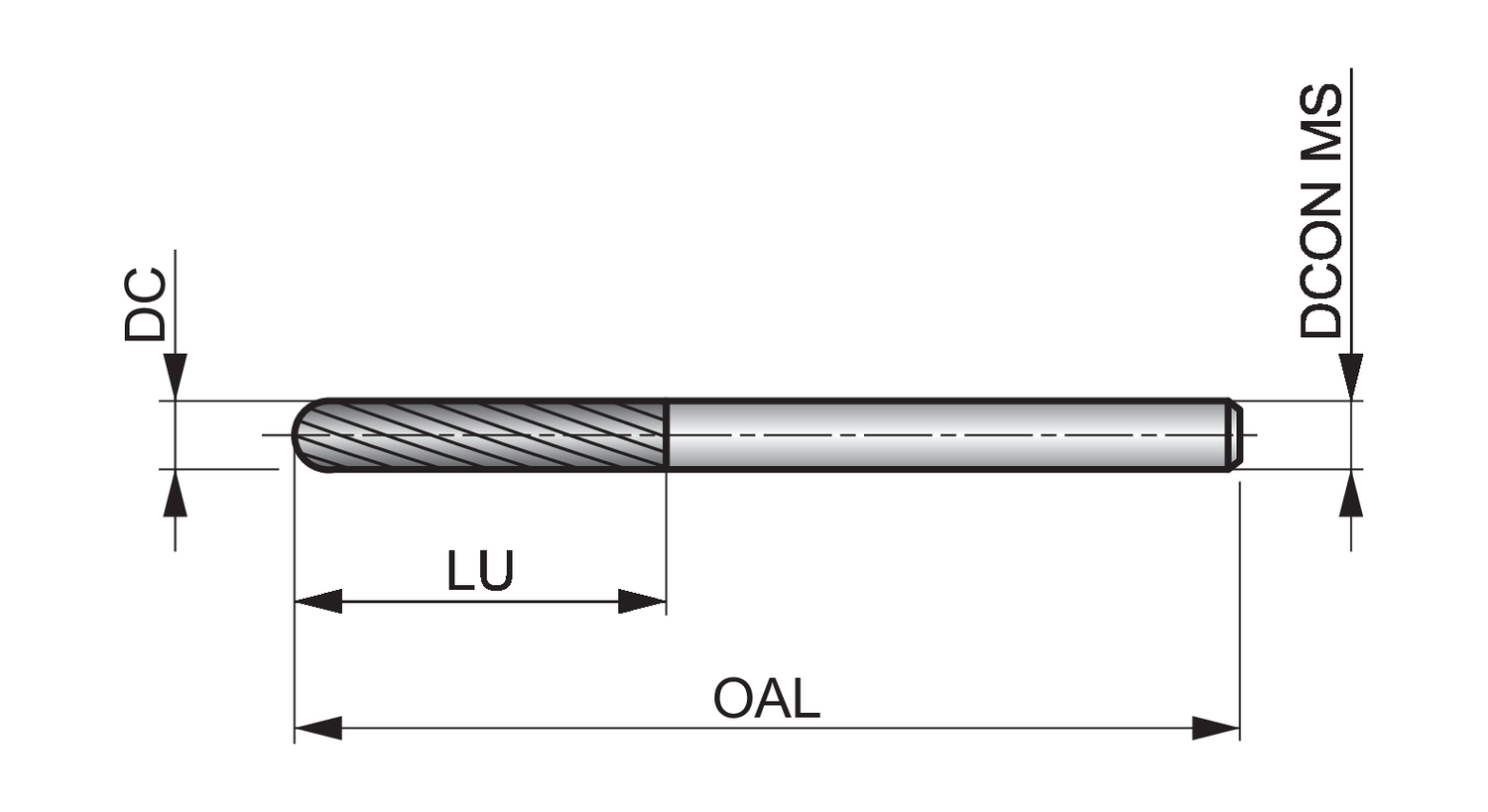

Connection diameter - inch (DCON MS)
0.1181
Connection diameter - millimeter (DCON MS)
3
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - inch (DC)
0.1181
Cutting diameter - millimeter (DC)
3
EDP number
7806101
Material
HM
Material application
S - High-temperature alloys
MID number
7806101
Ordering code ANSI
P5053.0X3.0
Overall length - inch (OAL)
1.4961
Overall length - millimeter (OAL)
38
Shank
Cylindrical shank
Usable Length - millimeter (LU)
14
Cylinder burr with ball nose (C shape), diameter 3mm with 14mm length of cut, 38mm overall length and 3mm shank, solid carbide with bright finish, AS single cut flute style with light left-hand cross cut for machining contours and circular arcs in high-temperature alloys
