Dormer P807C6.0X6.0 6814131 Rotary Burr - Ball 6.00 mm x 6.0
MODEL 6814131
$17.28 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Burr Shape
D - Ball Shape
Burr Type Code (BTC)
Double Cut Geometry
Coating
TiAlN
Coating property (CTP)
1

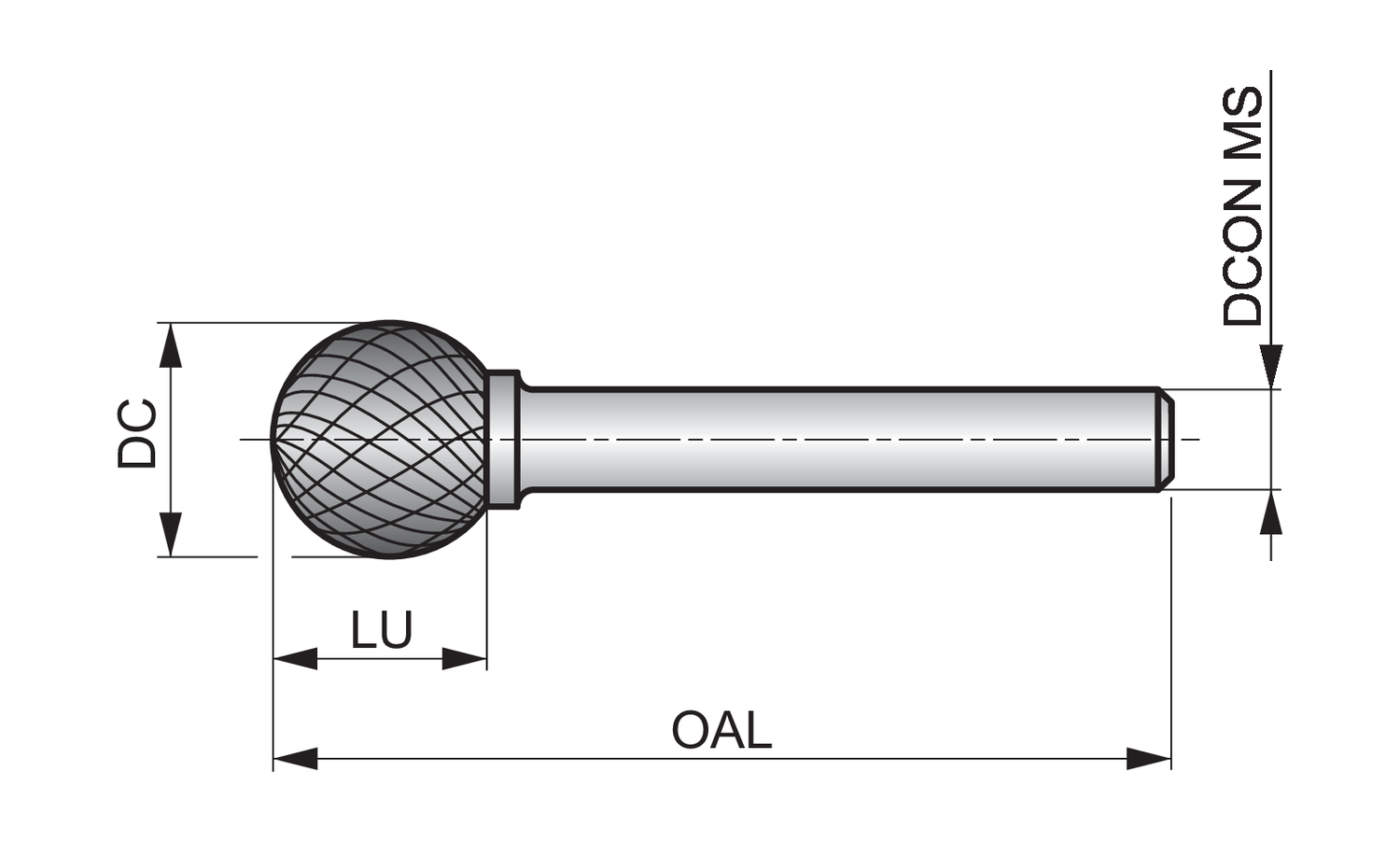

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - inch (DC)
0.2362
Cutting diameter - millimeter (DC)
6
EDP number
46814131
Material
HM
MID number
6814131
Ordering code ANSI
P807C6.0X6.0
Overall length - inch (OAL)
1.9685
Overall length - millimeter (OAL)
50
Shank
Cylindrical shank
Usable Length - millimeter (LU)
4.7
Another member of Dormer’s range of rotary carbide burrs is the P807C, manufactured from premium carbide for better performance and longer tool life at high speeds.
The titanium aluminium nitride coating further extends the tool life and also boosts performance when being used for long periods at high speed.
The ball shape (Shape D) with skip flute geometry improves efficiency when de-burring in slots or radius grooves.
P807C rotary burrs have a hardened, toughened steel shank for extra rigidity and strength, to decrease vibration which further increases tool life, whilst the DC geometric design breaks chips more effectively, so improving control when used by hand
