Dormer P8438.0X8.0 7059574 Diamond Cut Router - 135° Drill Point 8.00 mm x 8.0
MODEL 7059574
$160.44 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Drill point 135°
Basic Standard
DORMER
Burr Type Code (BTC)
Fibreglass and Composite Materials Cut Geometry
BurrEndShot_DICT_SEL
Drill Point Burr End
Coating
Bright

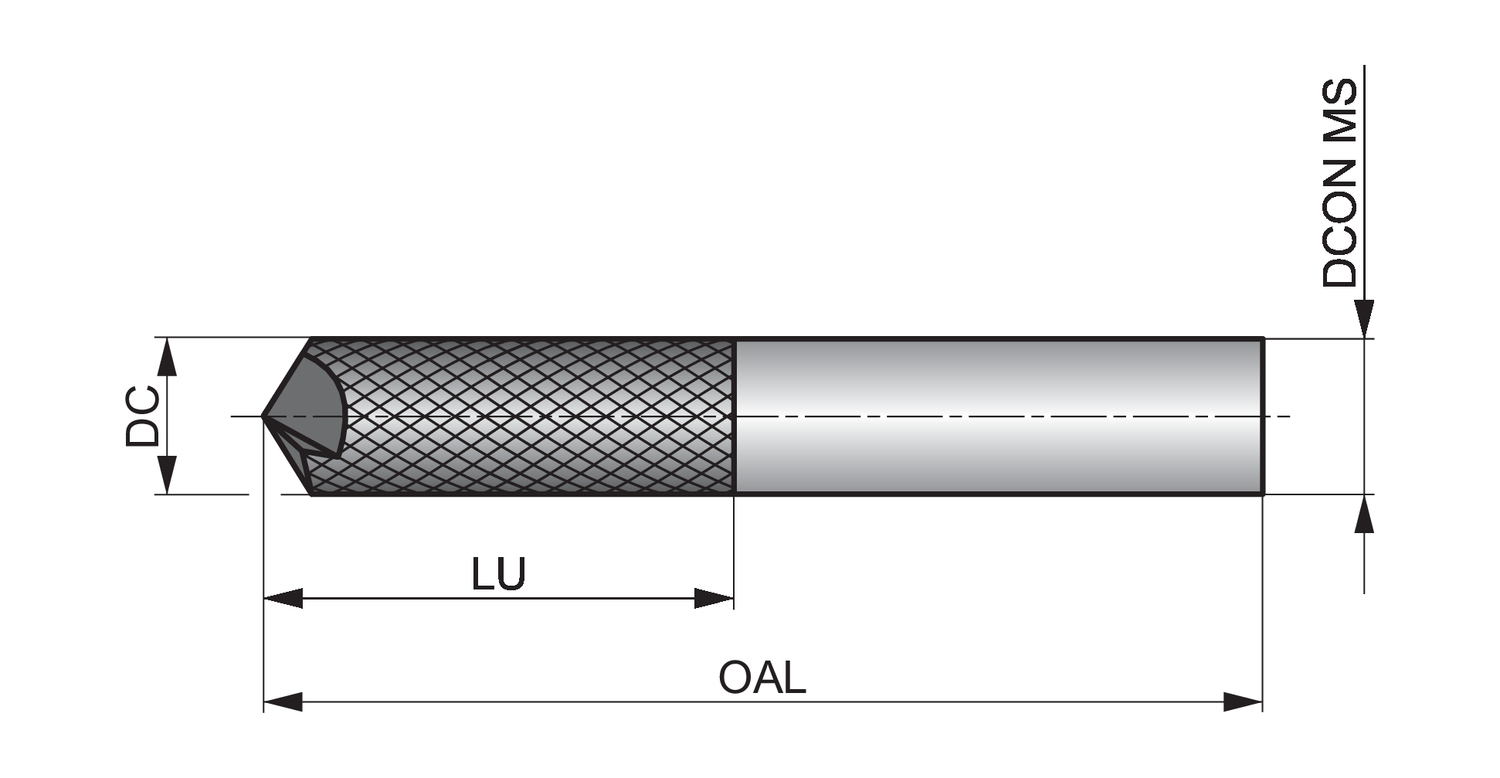

Connection diameter - inch (DCON MS)
0.315
Connection diameter - millimeter (DCON MS)
8
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - inch (DC)
0.315
Cutting diameter - millimeter (DC)
8
EDP number
47059574
Material
HM
Material application
N - Non-ferrous metals
MID number
7059574
Ordering code ANSI
P8438.0X8.0
Overall length - inch (OAL)
2.4803
Overall length - millimeter (OAL)
63
Point Angle (SIG)
135
Shank
Cylindrical shank
Usable Length - millimeter (LU)
25
P843 rotary carbide burrs have a 135 degree drill point so you can both drill and router in a single operation.
The fibreglass geometry (GRP) is specifically for routering thin sheets of fibreglass and the bright finish ensures a clean result by stopping workpiece material from sticking to the cutting surfaces of the tool.
Manufactured from premium carbide material for superior performance and extended tool life at high speeds, the P843 rotary carbide cutter is a very versatile tool and is suitable for use by hand, machine and robot arm
