MROSupply Has Hundreds Of Brands, Millions Of Products, Including

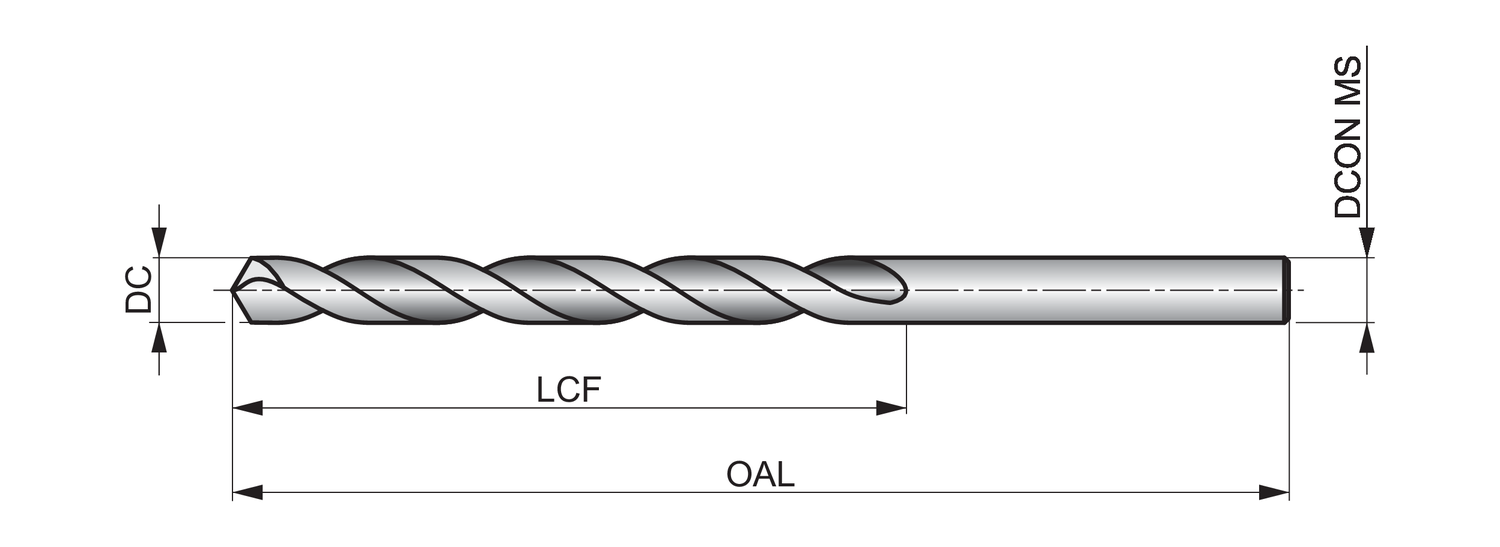

Image for Illustration purposes only. Actual product may vary
R52N6 052006 Taper Length Drill Long ANSI N6
MODEL R52N6
This product has a minimum order quantity of (12 minimum) This is the minimum order quantity available when purchasing this product.
$13.90 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(12 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 118°
Basic Standard
ANSI
Coating
Bright
Connection (shank) description
Cylindrical shank
Cutting diameter (wire gauge size) (DC)
N6
Cutting diameter - inch (DC)
0.204
Cutting diameter - millimeter (DC)
5.18
Drill Length
Long
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
3.5/8
Length chip flute - inch (LCF)
3.625
Material
HSS
Overall length - fractional inch (OAL)
6"
Overall length - inch (OAL)
6
Overall length - millimeter (OAL)
152.4
Point Angle (SIG)
118
Spiral form
Standard Spiral
Surface treatement
Original surface
Usable length (ULDR)
6
R52 taper length drill bits are available in wire gauge sizes from 80 to 1 and are manufactured from High Speed steel, for drilling a wide range of materials including steel, stainless steel and aluminum.
Taper length series drills are recommended for drilling deeper holes and for applications where you need increased reach.
The conventional 118 degree point makes it easy to re-grind the drills for use many times over, whilst the bright finish ensures clean and accurate holes by preventing workpiece material from sticking to the cutting surfaces of the tool.
